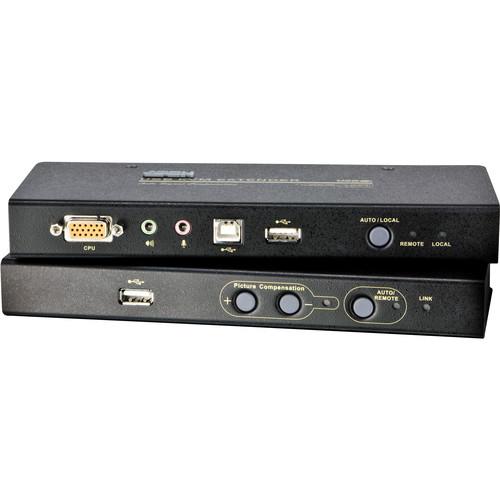

User Manual for ATEN CE800B USB KVM Extender with On-Board Audio Click to enlarge the picture
Contents of the user manual for the ATEN CE800B USB KVM Extender with
- Product category: KVM Extenders ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Extenders
|
User manual for the ATEN CE800B USB KVM Extender with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The Aten CE800B USB KVM Extender with On-Board Audio allows access to a computer system from a remote console (USB keyboard and mouse, monitor, stereo speakers, and microphone). It is designed for use in factory and construction sites, or any type of installation where the console needs to be in a conveniently accessible location, but you want the system equipment to reside in a safe place - away from dust, dirt, and harsh environmental influences. The CE800B has built-in USB ports that support USB mass storage compliant flash drives. The addition of a type B USB port on the local unit means that the flash drive facility is fully supported in both computer-only and KVM switch installation. - Cat 5e cable to connect the local and remote units - up to 825' apart
- Dual console operation - control your system(s) from both the local and remote consoles
- Pushbutton selection of the active console
- Built-in USB port on both units supports external USB mass storage compliant flash drives for easy file sharing
- Special security feature requires login when mounting an external USB storage device on the remote unit
- Supports wide screen formats Note: The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an optional EDID emulator.
- Supports VGA, SVGA, and multisync monitors; local monitor supports DDC, DDC2, DDC2B
- Supports resolutions up to 1600 x 1200 @ 60 Hz
- Built-in 8KV/15KV ESD protection and 2KV surge protection
- Adjustable gain control - manually adjusts signal strength to compensate for distance
- Supports stereo speakers and stereo microphone
- Supports Microsoft Intellimouse and the scrolling wheel on most mice
- Built-in ASIC for greater compatibility
UPC: 672792108884 In the Box ATEN CE800B USB KVM Extender with On-Board Audio 6' Custom KVM Cable 2 x Power Adapter Firmware Upgrade Cable 6' USB Cable 2 x Grounding Wires Rack Mount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CE800B USB KVM Extender with On-Board Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CE800B Specs | Supported Operating Systems | Windows: 2000 and up
Linux: Redhat 7.1 and up; Mandrake 9.0 and up; SuSE 10 and up
UNIX: FreeBSD 4.2 and up; IBM AIX 4.3 and up
Novell: Netware 6.0 and up
Mac OS: 9.0 and up | | Console Connectors | Mouse: 1 x USB type A female for both remote and local units
Keyboard: 1 x USB type A female for both remote and local units
Microphone: 1 x mini stereo jack (pink) for both remote and local units
Audio out: 1 x mini stereo jack (green) for both remote and local units | | Power Consumption | 5.0 VDC; 6.0 W | | Video Resolution | 1600 x 1200 @ 60 Hz, 500'; 1024 x 768 @ 60 Hz, 825' | | Operating Temperature & Humidity | 32 - 122°F (0 - 50°C), RH 0 - 80% non-condensing | | Storage Temperature | -4 - 140°F (-20 - 60°C) | | Housing Material | Metal | | Dimensions (W x L x H) | Local: 7.9 x 3.1 x 1.0" (20.0 x 8.0 x 2.5 cm)
Remote: 7.9 x 3.1 x 1.0" (20.0 x 8.0 x 2.5 cm) | | Weight | Local: 17.3 oz (0.5 kg)
Remote: 17.3 oz (0.5 kg) | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 12.835 x 8.268 x 3.937" |
