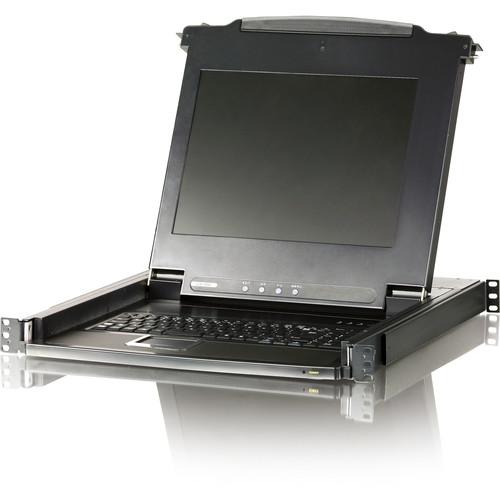

User Manual for ATEN CL1000MTAA Slideaway LCD Console Click to enlarge the picture
Contents of the user manual for the ATEN CL1000MTAA Slideaway LCD Console
- Product category: LCD KVM Consoles ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN LCD KVM Consoles
|
User manual for the ATEN CL1000MTAA Slideaway LCD Console contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The CL1000MTAA Slideaway LCD Console from Aten acts as the front end for standard KVM switches. It features an integrated 17" LED-backlit LCD panel, full keyboard, and touchpad in a 1U housing. The console is TAA compliant, and rotates up to 115 degrees for a more comfortable viewing angle. There is built-in internal power, and DDC emulation for automatically adjusting VGA settings. The console supports Windows 2000, XP, Vista, Linux, and FreeBSD operating systems, and resolutions up to 1280 x 1024 . - LED illumination light designed to illuminate the keyboard and touchpad, allowing visibility in low-light conditions
- Integrated KVM console with a 17" LED-backlit LCD monitor
- Sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Compatible with most PS/2 KVM switches
- Supports video resolutions up to 1280 x 1024 @ 75 Hz, DDC, DDC2, DDC2B
- Adjustable depth to fit within a rack
- VGA settings of every connected computer automatically adjust for optimal output to the LCD monitor through DDC emulation
- Multiplatform support of Windows 2000/XP/Vista, Linux, and FreeBSD
- Keyboard language support of English (US), English (UK), French, German, German (Swiss), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese
UPC: 672792002441 In the Box ATEN CL1000MTAA Slideaway LCD Console (17") Power Cord Custom KVM Cable Set Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CL1000MTAA Slideaway LCD Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CL1000MTAA Specs | Connectors | Keyboard, Video, Mouse: 1 x SPHD Female
Power: 1 x 3-prong AC socket | | Switches | LCD Adjustment: 4 x pushbuttons
Reset: 1 x semi-recessed pushbutton
Power: 1 x rocker switch | | LED Indicators | 1 x Power
1 x Num Lock
1 x Caps Lock
1 x Scroll Lock | | Emulation | Keyboard, Mouse: PS/2 | | Video | LDC: 1280 x 1024, DDC2B | | I/P Rating | 100 to 240 VAC, 50 to 60 Hz, 1 A | | Operating Systems | Supports Windows 2000, XP, Vista, Linux, and FreeBSD | | Power Consumption | LCD: 120 V, 14 W / 230 V, 16 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 0-80% RH, non-condensing | | Housing | Metal, plastic | | Approvals and Compliance | TAA compliant | | Rotate Range | Up to 115° | | Dimensions | 18.9 x 21.2 x 1.7" / 48.0 x 53.8 x 4.4 cm
LCD Screen: 17.0" / 43.2 cm | | Weight | 26.5 lb / 12.0 kg | | | | Package Weight | 32.3 lb | | Box Dimensions (LxWxH) | 26.0 x 24.3 x 5.8" |
