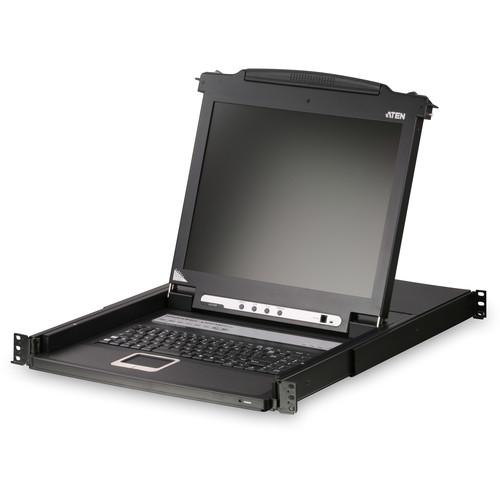

User Manual for ATEN CL1008MTAA 8-Port 17" Single Rail LCD KVM Console Click to enlarge the picture
Contents of the user manual for the ATEN CL1008MTAA 8-Port 17" Single Rail
- Product category: LCD KVM Consoles ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN LCD KVM Consoles
|
User manual for the ATEN CL1008MTAA 8-Port 17" Single Rail contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The TAA compliant Aten CL1008MTAA 8-Port 17" Single Rail LCD KVM Console is a control unit that allows access to multiple computers from a single keyboard, video, and mouse (KVM) console. A single CL1008 can control up to 8 computers, and as many as 15 additional KVM switches can be daisy-chained to the CL1008MTAA, so that up to 128 computers can all be controlled from a single KVM console. The CL1008MTAA integrates a keyboard, 17" LCD monitor, and touchpad in a 1U rack-mountable sliding housing intended for conservation of space. - KVM console with 17" LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
- LCD module rotates up to 115° for a more flexible viewing angle
- Standard rack mount kit included, easy rack mounting optional
- Daisy-chain up to 15 additional units to control up to 128 computers
- No software required - convenient computer selection via hotkeys and mouse driven intuitive on screen display (OSD) menus
- Auto scan feature for monitoring user-selected computers
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
- Hot pluggable - add or remove computers without having to power down the switch
- Two level password security - only authorized users view and control the computers; up to four users plus an administrator with separate profiles for each
- Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
- Multiplatform support: Windows 2000/XP/Vista, Linux, and FreeBSD
UPC: 672792002748 In the Box ATEN CL1008MTAA 8-Port 17" Single Rail LCD KVM Console (TAA Compliant) 2 x 2L-5201P SPHD15 to VGA and PS/2 KVM Cable (4') Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CL1008MTAA 8-Port 17" Single Rail LCD KVM Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CL1008MTAA Specs | Max Computer Connections | 8; 128 with additional units | | Connectors | Keyboard, mouse, and monitor: 8 x SPHD female
Flash ROM upgrade: 1 x firmware upgrade port | | OS Requirements | Windows: 2000 and up
Lunux: RedHat 7.1 - 7.3, 8.0, 9.0, Fedora Core 2 - 4; SuSE 8.2, 9.3, 10; Mandriva (Mandrake) 9, 2005 Limited Edition, 2006
UNIX: IBM AIX 4.3, 5L; FreeBSD 4.2, 4.5
Novell: Netware 5.0, 6.0 | | Emulation | Keyboard, mouse: PS/2 | | Daisy Chain | 1 x DB-25 male | | Buttons or Switches | Power: 1 x rocker
Reset: 1 x semi-recessed pushbutton
Port Selection: 8 x pushbutton
LCD Adjustment: 4 x pushbutton
Firmware Upgrade: 1 x slide | | Languages Supported | English (US); English (UK); German; German (Swiss); French; Spanish; Traditional Chinese; Japanese; Korean; Swedish; Italian; Russian; Hungarian | | Video Resolution | 1280 x 1024 @ 75 Hz; DDC2B | | Scan Interval | 1 - 255 seconds | | LEDs | 1 x power on (dark green)
8 x selected computer (green)
8 x on line (orange) | | Port Selection | OSD, hotkey, pushbutton | | Enclosure Material | Plastic and metal | | TAA Compliant | Yes | | Environment Requirements | Operation Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 0 to 80% RH, non-condensing | | Power Requirements | 120 to 240 VAC @ 50/60 Hz, 1 A | | Power Consumption | 120 V: 30 W
230 V: 37 W | | Dimensions (W x D x H) | 25.0 x 18.9 x 1.7" (63.5 x 48.0 x 4.3 cm) | | Weight | 26.0 lb (11.8 kg) |
