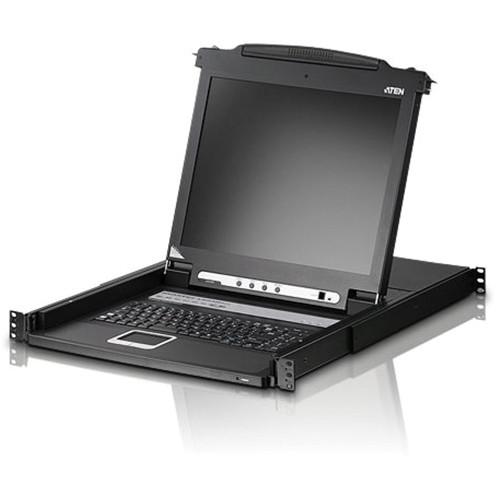

Product description The Aten CL1016M 16-Port 17" Single Rail LCD KVM Console is a control unit that allows access to multiple computers from a single keyboard, video, and mouse (KVM) console. A single CL1016M can control up to 16 computers, and as many as 15 additional KVM switches can be daisy-chained to the CL1016M, so that up to 256 computers can all be controlled from a single KVM console. The CL1016M integrates a keyboard, 17" LCD monitor, and touchpad in a 1U rack-mountable sliding housing intended for conservation of space. - KVM console with 17" LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
- LCD module rotates up to 115° for a more flexible viewing angle
- Standard rack mount kit included - easy rack mounting optional
- Daisy-chain up to 15 additional units - control up to 256 computers
- No software required - convenient computer selection via hotkeys and mouse driven intuitive on screen display (OSD) menus
- Auto scan feature for monitoring user-selected computers
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
- Hot pluggable - add or remove computers without having to power down the switch
- Two level password security - only authorized users view and control the computers; up to four users plus an administrator with separate profiles for each
- Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
- Keyboard language support: English (US), English (UK), German, German (Swiss), French, Spanish, Traditional Chinese, Japanese, Korean, Swedish, Italian, Russian, Hungarian
- Multiplatform support: Windows 2000/XP/Vista, Linux, and FreeBSD
UPC: 672792100901 In the Box Aten CL1016M 16-Port 17" Single Rail LCD KVM Console 2 x Custom KVM Cable Sets Power Cord Firmware Upgrade Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aten CL1016M 16-Port 17" Single Rail LCD KVM Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CL1016M Specs | Max Computer Connections | 16; 256 with additional units | | Connectors | Keyboard, mouse, and monitor: 8 x SPHD female
Flash ROM upgrade: 1 x firmware upgrade port | | System Requirements | Windows: 2000 and up
Lunux: RedHat 7.1 - 7.3, 8.0, 9.0, Fedora Core 2 - 4; SuSE 8.2, 9.3, 10; Mandriva (Mandrake) 9, 2005 Limited Edition, 2006
UNIX: IBM AIX 4.3, 5L; FreeBSD 4.2, 4.5
Novell: Netware 5.0, 6.0 | | Emulation | Keyboard, mouse: PS/2 | | Daisy Chain (Cascade) | 1 x DB-25 male | | Switches | Power: 1 x rocker
Reset: 1 x semi-recessed pushbutton
Port selection: 8 x pushbutton
LCD adjustment: 4 x pushbutton
Firmware upgrade: 1 x slide | | Video Resolution | 1280 x 1024 @ 75 Hz; DDC2B | | Scan Interval | 1 - 255 seconds | | LEDs | Power on: 1
Selected computer: 8
On line: 8 | | Port Selection | OSD, hotkey, pushbutton | | Enclosure | Plastic and metal | | Environment | Operation Temperature: 32 - 104°F (0 - 40°C)
Storage Temperature: -4 - 140°F (-20 - 60°C)
Humidity: 0 - 80% RH, non-condensing | | Power Requirements | 50/60Hz 100~240V AC; 1A | | Power Consumption | 120V - 30W
230V - 37W | | Dimensions (W x D x H) | 25.0 x 18.9 x 1.7" (63.5 x 48.0 x 4.3 cm) | | Weight | 26 lbs (11.8 kg) | | | | Package Weight | 40.0 lb | | Box Dimensions (LxWxH) | 28.0 x 27.0 x 5.5" | Note: Max Computer Connections - the website says 8, but it's in fact 16, as it has 16 ports. The owner's manual doesn't specify, but diagrams inside confirm.
