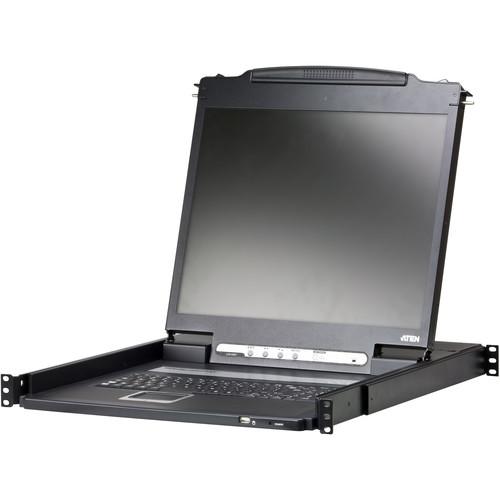

User Manual for ATEN CL3000N Lightweight PS 2-USB LCD Console Click to enlarge the picture
Contents of the user manual for the ATEN CL3000N Lightweight PS 2-USB LCD
- Product category: LCD KVM Consoles ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN LCD KVM Consoles
 |
User manual for the ATEN CL3000N Lightweight PS 2-USB LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

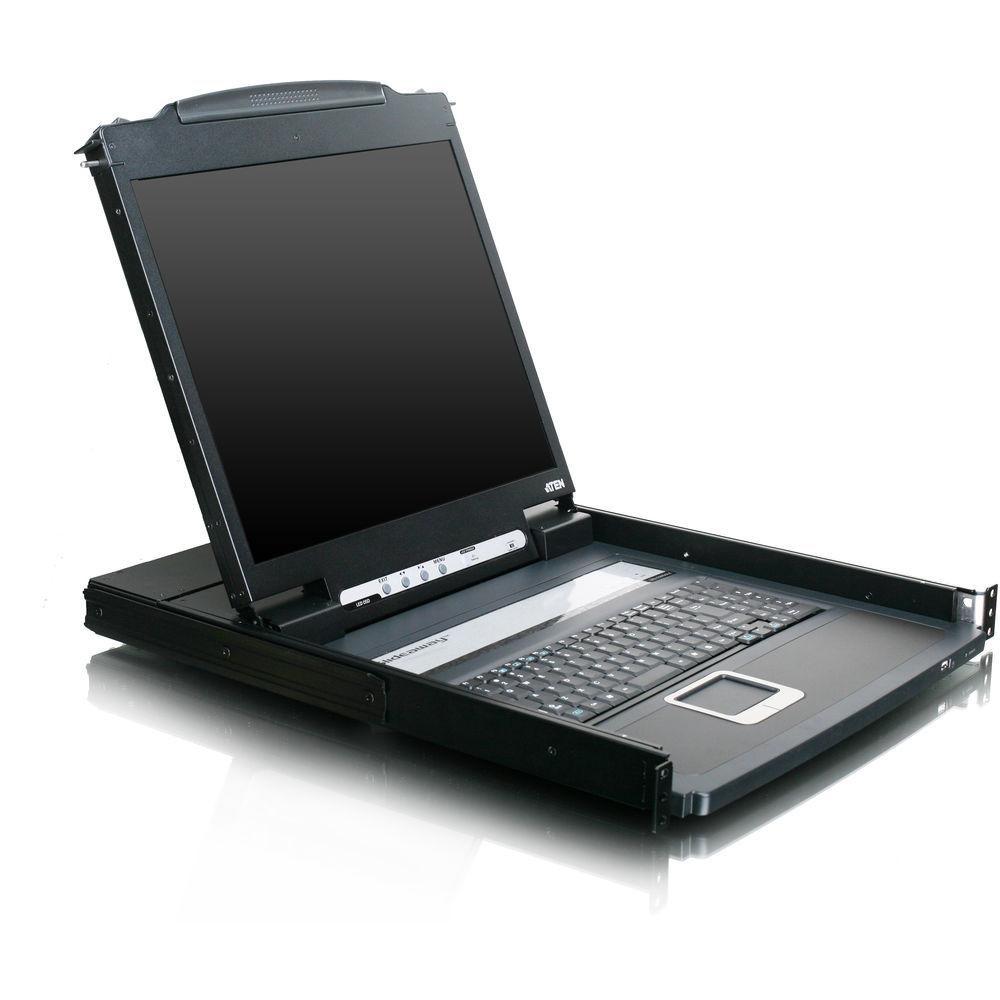

Product description The CL3000N Lightweight PS/2-USB LCD Console from Aten acts as the front end console for compatible KVM switches. It integrates a standard 105-key keyboard, a 19" LED-backlit LCD monitor, and a touchpad in a durable aluminum housing. The console is vibration tested and MIL-STD-810G certified, enabling it to operate in harsh environments. Less than 1U in height, the console can fit in 1U of rack space with top and bottom clearance for smooth operation. The video settings of each computer automatically adjust for optimal output to the monitor through the console's DDC emulation. The CL3000N supports Windows, Linux, Mac, and Sun operating systems, and video resolutions of up to 1280 x 1024. - Integrated KVM console featuring a 19" LCD monitor
- Green power LED-backlit LCD monitor saves energy
- Lightweight design for easy installation
- MIL-STD-810G certified through advanced random vibration resistance testing
- The dual interface supports computers with PS/2 or USB keyboards and mice
- Additional hot-pluggable USB mouse port on the front panel, which also functions as a USB peripheral port
- Multiplatform support of Windows, Linux, Mac, and Sun
- Supports video quality of up to 1280 x 1024 @ 75 Hz, DDC2B
- Manage computers from an external console through the extra console port
- The console remains securely locked away when not in use
- Slideaway housing is slightly less than 1U allowing for top and bottom clearance for smooth operation in 1U of rack space
- Video settings of each computer are automatically adjusted for optimal output to the monitor through DDC emulation
- Adjustable depth to fit within a rack
- Standard 105-key keyboard
- Keyboard language supports English(US), English(UK), German, German(Swiss), French, Spanish, Traditional Chinese, Japanese, Korean, Swedish, Italian, Russian, Hungarian, Greek
UPC: 672792003240 In the Box ATEN CL3000N Lightweight PS/2-USB LCD Console Power Cord Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CL3000N Lightweight PS 2-USB LCD Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

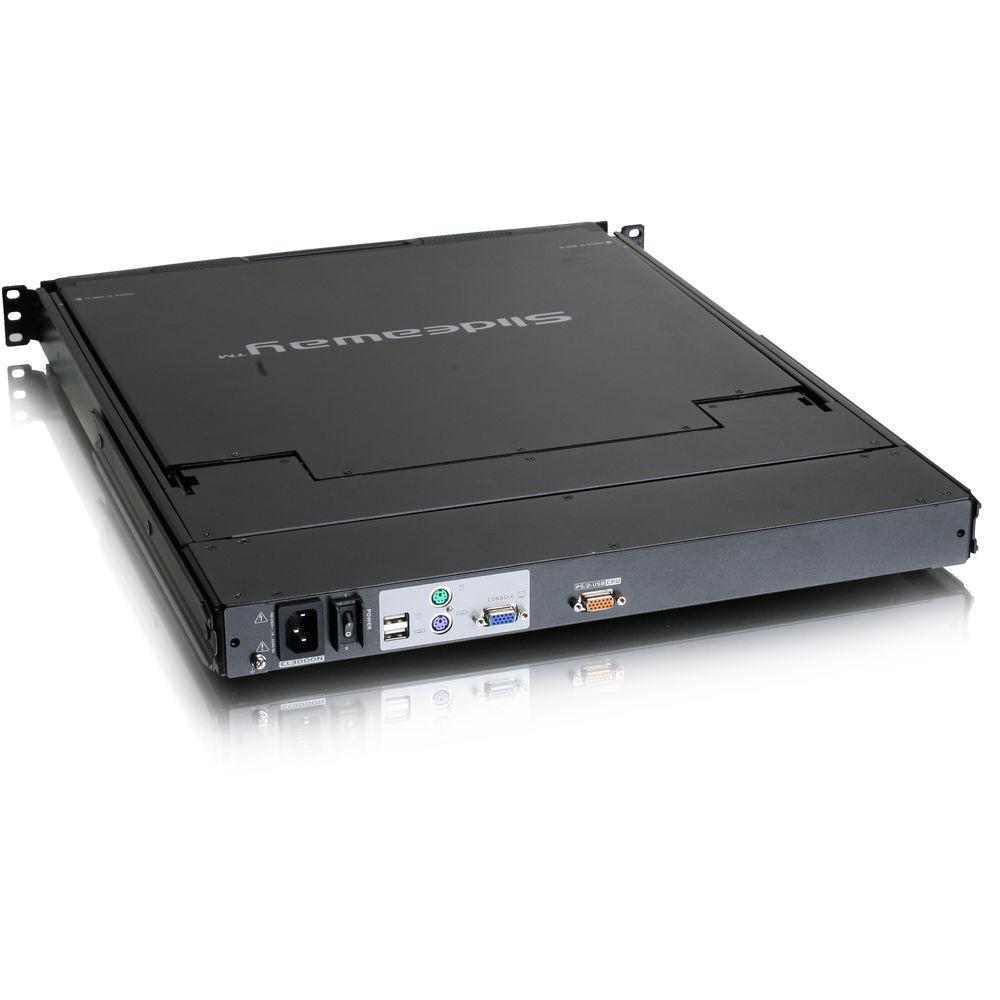

Technical parametersATEN CL3000N Specs | Computer Connections | 1 | | Console Selection | Hotkey | | Connectors | 2 x 6-pin Mini-DIN Female
2 x USB Type A Female
1 x HDB-15 Female
1 x SPHD-18 Male
1 x USB Type A Female
1 x 3-prong AC socket | | Switches | Reset: 1 x semi-recessed pushbutton
Power: 1 x rocker
F/W Upgrade: 1 x slide
LCD Power: 1 x pushbutton
LDC Adjustment: 4 x pushbutton | | LED Indicators | 1 x Power
1 x Num Lock
1 x Caps Lock
1 x Scroll Lock | | Emulation | Keyboard/Mouse: PS/2, USB | | Video | 1280 x 1024 @ 75 Hz, DDC2B | | Input Power | 100 to 240 VAC, 50 to 60 Hz, 1 A | | Power Consumption | 120 V, 21.4 W, / 230 V, 22.7 W | | Approvals and Certifications | Random Vibration Resistant Test: MIL-STD-810G certified test conditions
Frequency Range: 5 to 500 Hz
Grams: Value X, Y axis 0.03 oz / 0.76 g, Z axis 0.04 oz / 1.07 g Test Duration: 1 hr | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 0-80% RH, non-condensing | | Housing | Aluminum | | Dimensions | 23.2 x 19.1 x 1.7" / 58.9 x 48.5 x 4.4 cm | | Weight | 18.5 lb / 8.4 kg |
