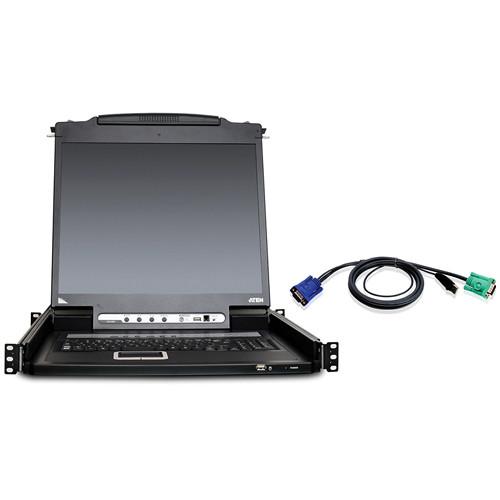

Product description The Aten CL5708M 8-Port 17" Single Rail LCD KVM Console Bundle is a control unit bundle that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708M can control up to 8 computers, and as many as 31 additional KVM switches can be daisy-chained to the CL5708M, so that up to 256 computers can all be controlled from a single KVM console. The CL5708M integrates a keyboard, 17" LCD monitor, and touchpad in a 1U rack-mountable sliding housing for conservation of space. - Integrated KVM console with 17" LCD monitor in a slideaway housing
- Fingerprint identification reader compatible
- Space saving design - up to two consoles (one bus) control up to 8 computers
- Daisy-chain up to 31 additional units - control up to 256 computers from a single console with compatible KVM switches
- Dual interface - supports computers and console with PS/2 or USB keyboards and mice
- LCD module USB port allows each computer to access USB peripherals Note: The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
- LCD module rotates up to 115° for multiple viewing angles
- Multiplatform support - Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for Windows, Mac, and Sun
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
- Supports external USB mouse
- Supports resolutions up to 1280 x 1024 @ 75 Hz
- No software required - computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations - no need for manual dip switch setting, front panel LED indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security - only authorized users can view and control computers
- Supports one administrator and four user accounts with separate profiles
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
- Hot pluggable - add or remove computers without having to power down the switch
- Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
UPC: 672792503344 In the Box Aten CL5708M 8-Port 17" Single Rail LCD KVM Console Bundle 2 x 2L-5201P SPHD15 to VGA and PS/2 KVM Cable (4') 4 x 2L-5202U USB KVM Cable (6') 2 x 2L-5203U USB KVM Cable (10') 2 x 4' USB KVM Cable 5-in-1 USB / PS/2 Console Cable Firmware Upgrade Cable 6' Power Cord 4' Grounding Wire Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aten CL5708M 8-Port 17" Single Rail LCD KVM Console Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CL5708MUKIT Specs | OS Compatibility | Windows: 2000 and up
Linux: Redhat 7.1 and up; SuSE 9.0 and up; Mandriva (Mandrake) 9.0 and up
UNIX: AIX 4.3 and up; FreeBSD 4.2 and up; Sun Solaris 8 and up
Novell: Netware 5.0 and up
Mac: OS 9 and up
DOS: 6.22 | | Max Computer Connections | Direct: 8 | | Daisy Chain (Cascade) | 256 (via daisy-chain) | | Console Connectors | Keyboard, mouse, and monitor: 1 x SPHD-18 male
Flash ROM upgrade: 1 x RJ-11 female
Computer/KVM: 8 x SPHD-15 female
USB: 1 x USB Type-A female
Daisy chain: 1 x DB-25 male | | Switches | Power: 1 x rocker
LCD power: 1 x pushbutton
LCD Adjustment: 4 x pushbuttons
Port selection: 2 x pushbuttons (port), 2 x pushbuttons (station)
Firmware upgrade: 1 x slide
Reset: 1 x semi-recessed pushbutton | | LEDs | Port ID: 2 x 7-segment LED (yellow)
Power on: 1 (dark green)
LCD power: 1 (orange)
Station ID: 2 x 7-segment LED (yellow)
On Line: 8 (orange) | | Emulation | Keyboard, mouse: PS/2, USB | | Video Resolution | 1280 x 1024 @ 75 Hz; DDC2B | | Scan Interval | 1 - 255 sec | | Port Selection | OSD, Hotkey, Pushbutton | | Enclosure | Metal and plastic | | Power Requirements | 110 - 230 VAC, 50 - 60 Hz, 1A | | Power Consumption | 27.5W, 95 BTU/h / 23W, 78 BTU/h | | Environment | Operation temperature: 32 - 122°F (0 - 50°C)
Storage temperature: -4 - 140°F (-20 - 60°C)
Humidity 0 - 80% RH, Noncondensing | | Dimensions (WxDxH) | 18.9 x 24.9 x 1.7" (48.0 x 63.2 x 4.3 cm) | | Weight | 30.3 lbs (13.7 kg) | | | | Package Weight | 43.8 lb | | Box Dimensions (LxWxH) | 28.25 x 26.5 x 5.25" |
