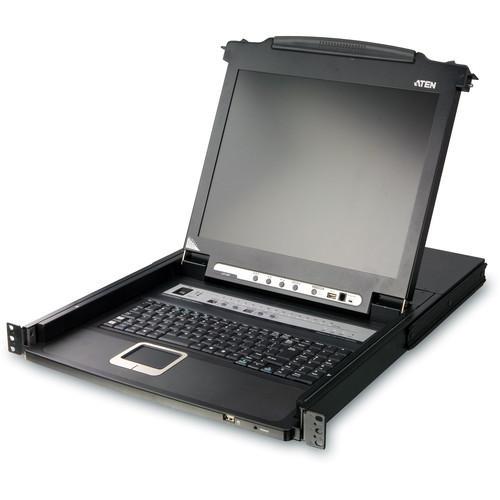

User Manual for ATEN CL5716M 17" 16-Port Single Rail LCD KVM Console Click to enlarge the picture
Contents of the user manual for the ATEN CL5716M 17" 16-Port Single Rail
- Product category: LCD KVM Consoles ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN LCD KVM Consoles
|
User manual for the ATEN CL5716M 17" 16-Port Single Rail contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The CL5716M 17" 16-Port Single Rail LCD KVM Console from Aten is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 16 computers, and as many as 31 additional KVM switches can be daisy-chained, so that up to 512 computers can all be controlled from a single KVM console. The CL5716 integrates a keyboard, 17" LCD monitor, and touchpad in a 1U rack-mountable sliding housing for conservation of space. - Integrated KVM console with 17" LCD monitor in a slideaway housing
- Fingerprint identification reader compatible
- Space saving design up to two consoles (one bus) control up to 16 computers
- Daisy-chain up to 31 additional units control up to 512 computers from a single console (With compatible KVM switches ACS1208A, ACS1216A, CS1708A, CS1716A)
- Dual interface supports computers and console with PS/2 or USB keyboards and mice
- LCD module USB port allows each computer to access USB peripherals 1
Please Note: Note: The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections close - LCD module rotates up to 115° for multiple viewing angles
- Multiplatform support - Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for Windows, Mac, and Sun
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
- Supports external USB mouse
- Supports resolutions up to 1280 x 1024 at 75 Hz
- No software required - computer selection via front panel pushbuttons, hotkeys and, multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations no need for manual dip switch setting, front panel LED indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security only authorized users can view and control computers
- Supports one administrator and four user accounts with separate profiles
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
- Hot pluggable - add or remove computers without having to power down the switch
- Beeper on/off via hotkey and OSD
- Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
UPC: 672792100598 In the Box ATEN CL5716M 17" 16-Port Single Rail LCD KVM Console 1 x Standard Rack Mount Kit 2 x Custom KVM Cable Sets (2L5201P / 2L5201U) 1 x 5-in-1 USB/PS/2 Console Cable 1x Firmware Upgrade Cable 1 x Power Cord (6') 1 x Grounding Wire (4') Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CL5716M 17" 16-Port Single Rail LCD KVM Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CL5716M Specs | Max Computer Connections | Direct: 16 | | Daisy Chain (Cascade) | 512 (via Cascade) | | Port Selection | OSD, Hotkey, Pushbutton | | Console Connectors | Keyboard, mouse, and monitor: 1 x SPHD-18 male
Flash ROM upgrade: 1 x RJ-11 female
Mouse: 1 x USB Type-A female (white)
Daisy chain: 1 x DB-25 male | | Connectors | Power: 3 x prong AC socket
Computer/KVM: 16 x SPHD-15 female (yellow)
USB: 1 x USB Type-A female (white) | | Switches | Power: 1 x rocker
LCD power: 1 x pushbutton
LCD Adjustment: 4 x pushbuttons
Port selection: 2 x pushbuttons (port), 2 x pushbuttons (station)
Firmware upgrade: 1 x slide
Reset: 1 x semi-recessed pushbutton | | LEDs | Port ID: 2 x 7-segment LED (yellow)
Power on: 1 x (dark green)
LCD power: 1 x (orange)
Station ID: 2 x 7-segment LED (yellow)
On Line: 16 (orange) | | Video Resolution | 1280 x 1024 at 75 Hz, DDC2B | | Emulation | Keyboard, mouse: PS/2, USB | | Scan Interval | 1 to 255 sec | | Keyboard | Language support: English (US), English (UK), German, German (Swiss), French, Spanish, Traditional Chinese, Japanese, Korean, Swedish, Italian, Russian, Hungarian, Greek | | Power Requirements | 110 to 240 VAC, 1 A | | Power Consumption | 27.5 W, 95 BTU/h/23 W, 78 BTU/h | | Compliant | RoHS | | Environment | Operation temperature: 32 to 122°F (0 to 50°C)
Storage temperature: -4 to 140°F (-20 - 60°C)
Humidity 0 to 80% RH, (Non-condensing) | | Dimensions (W x D x H) | 18.9 x 1.7 x 24.9" (48.0 x 4.3 x 63.2 cm) | | Weight | 31.3 lb (14.1 kg) | | | | Package Weight | 43.1 lb | | Box Dimensions (LxWxH) | 28.0 x 26.5 x 5.0" |
