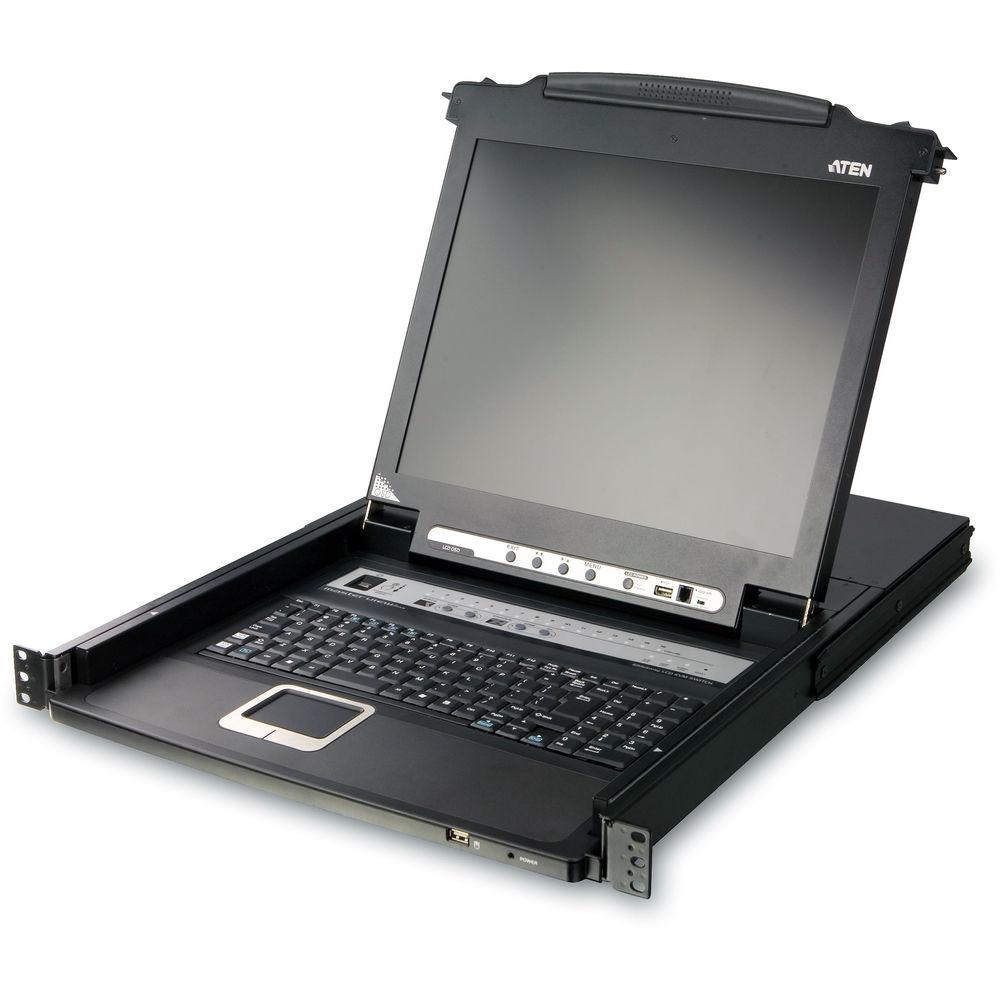

Product description The CL5716NUKIT 16-port Slideaway LCD KVM Switch with Kit from Aten allows access to multiple computers from a single PS/2 or USB KVM console. It can control up to 16 computers, and daisy-chain with up to 31 additional KVM switches to control up to 512 computers from a single KVM console. The switch integrates a keyboard, a 19" LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. - Integrated KVM console with 19" LCD monitor in a slideaway housing
- Up to two consoles (one bus) control up to 16 computers
- Daisy-chain up to 31 additional units to control up to 512 computers from a single console
- Supports computers and a console with PS/2 or USB keyboards and mice
- LCD module USB port allows each computer to access USB peripherals with USB cable set connections
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Multiplatform support of Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for PC, Mac, and Sun
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation for smooth switching and simultaneous booting of multiple computers
- Supports external USB mouse
- Supports resolutions of up to 1280 x 1024 @ 75 Hz
- Computer selection using front panel pushbuttons, hotkeys, and multilingual on-screen display menus
- Auto-senses position of station on daisy-chained installations and indicates position with front panel LED
- Port names automatically reconfigured when station sequence is changed
- Only authorized users can view and control computers
- Two level password security supports one administrator and four user accounts with separate profiles
- Auto Scan mode enables continuous monitoring of user-selected computers
- Commands from the keyboard can be broadcast to all available computers on the installation
- Add or remove computers without having to power down the switch
- Upgrade firmware to all chained KVM switches at the same time through the daisy-chain cable
- Keyboard language supports English(US), English(UK), German, German(Swiss), French, Spanish, Traditional Chinese, Japanese, Korean, Swedish, Italian, Russian, Hungarian, Greek

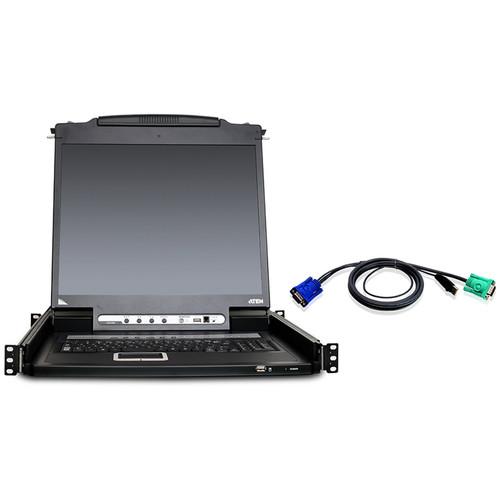

UPC: 881317509697 In the Box ATEN CL5716NUKIT 16-port Slideaway LCD KVM Switch with Kit 4 x 4' USB Cables 2 x 6' USB Cables Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CL5716NUKIT 16-port Slideaway LCD KVM Switch with Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

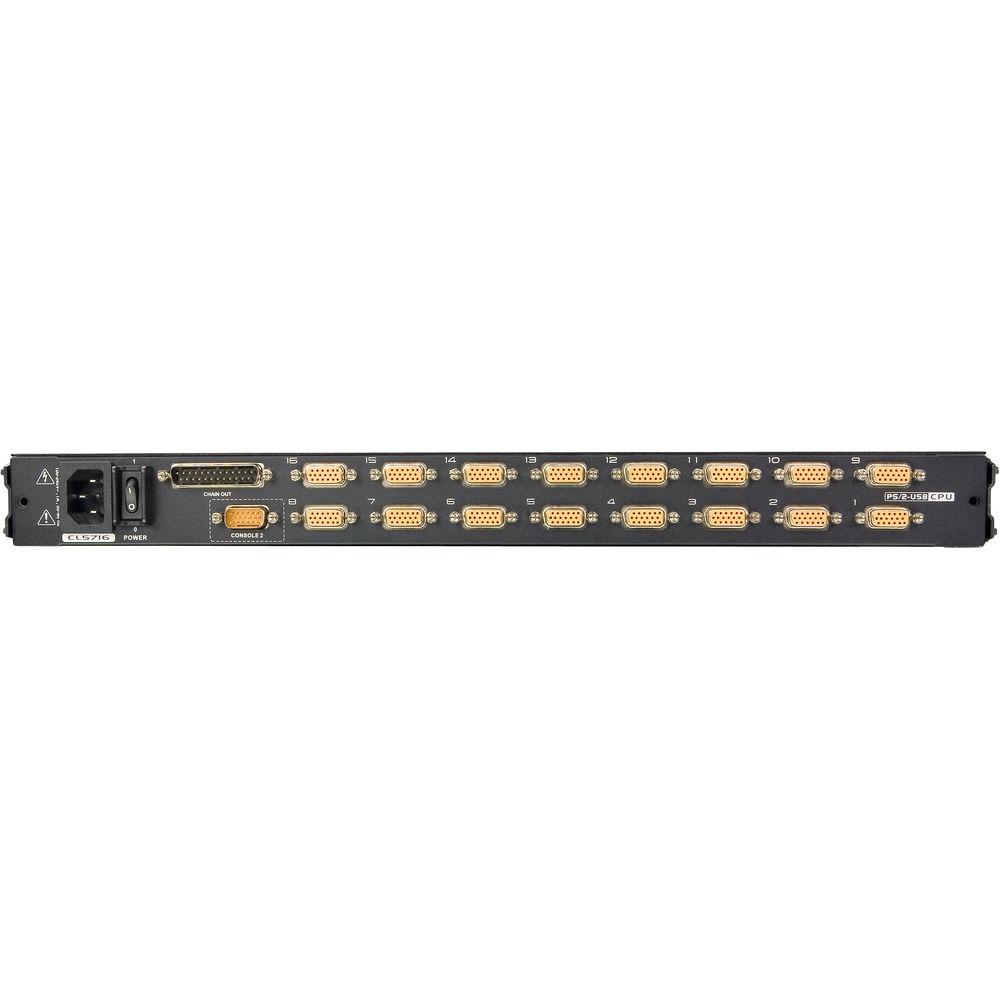

Technical parametersATEN CL5716NUKIT Specs | Computer Connections | Direct: 16
Daisy Chain Maximum: 512 | | Port Selection | OSD, hotkey, pushbutton | | Connectors | External Console Port: 1 x SPHD-18 Male
External Mouse Port: 1 x USB Type A Female
KVM Ports: 16 x SPHD-15/17 Female
Daisy-chain Port: 1 x DB-25 Male
FW Upgrade: 1 x RJ-11 Female
Power: 1 x 3-prong AC socket
USB Port: 1 x USB Type A Female | | Switches | Reset: 1 x semi-recessed pushbutton
Power: 1 x rocker switch
Firmware Upgrade: 1 x switch
LCD Adjust: 4 x pushbutton
LCD On/Off: 1 x LED pushbutton
Port Selection: 2 x pushbutton
Station Selection: 2 x pushbutton | | LED Indicators | 16 x On Line
2 x Port ID 7-segment LED display
2 x Station ID 7-segment LED display
1 x Power
1 x Num Lock
1 x Caps Lock
1 x Scroll Lock | | Emulation | Keyboard, Mouse: PS/2, USB | | Video | 1280 x 1024 @ 75 Hz, DDC2B | | Scan Interval | 1 to 255 sec | | I/P Rating | 100 to 240 VAC, 50 to 60 Hz, 1 A | | Power Consumption | 120 V, 26 W / 230 V, 26.8 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 0 to 80% RH, non-condensing | | Housing | Metal, plastic | | Dimensions | 27.1 x 19.1 x 1.7" / 68.9 x 48.5 x 4.4 cm
4 x 4.0' / 1.2 m USB cables
2 x 6.0' / 1.8 m USB cables
2 x 10.0' / 3.0 m USB cables | | Weight | 32.3 lb / 14.7 kg |
