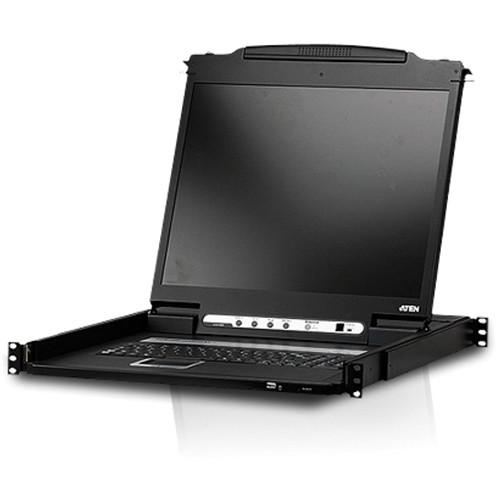

Product description The Aten CL5800N 19" Dual Rail LCD Console is a KVM console module featuring an integrated 19" LCD panel, a full keyboard, and a touch pad in a 1U rack-mountable sliding housing. Its LCD and keyboard/touch pad modules slide independently of each other to add versatility. To maximize space in your data center, the keyboard/touch pad module slides back to "hide away" when not in use, while the LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity. For added convenience, the CL5800N has ports for an external PS/2 or USB keyboard and mouse as well as a monitor on the rear panel. - Integrated KVM console with a 19" LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Standard rack mount kit included - easy rack mounting kit optional
- Supports an external console with either PS/2 or USB connectors - attach a KVM extender to remotely access the computers from anywhere via the Internet
- Dual interface - supports computers and KVM switches with PS/2 or USB keyboards and mice
- Additional hot-pluggable USB mouse port on front panel, also functions as USB peripheral port
- Supports DDC, DDC2, DDC2B
- DDC emulation of the LCD monitor
- Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
- Standard 105-key keyboard; Sun keyboard emulation
- Dual rail design allows LCD monitor and keyboard/touch pad modules to operate independently
- Compatible with many standard KVM switches
- Adjustable depth to fit within the rack
- Supports Microsoft Intellimouse (5 keys)
- Supports Logitech and Microsoft wireless mice
- Console lock - enables the console drawer to remain securely locked away in position when not in use
UPC: 672792002106 In the Box ATEN CL5800N 19" Dual Rail LCD Console 2L-5302UP PS/2 USB KVM Cable (6') 6' Power Cord 4' Grounding Wire Firmware Upgrade Cable Standard Rack Mount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CL5800N 19" Dual Rail LCD Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CL5800N Specs | Connections | Direct computer connections: 1
Keyboard, mouse, and monitor: 1 x SPHD-18 Female
Flash ROM upgrade: 1 x RJ-11 female
Second console keyboard: 1 x 6-pin mini-DIN female
Second console mouse: 1 x 6-pin mini-DIN female
Second console video 1 x HDB-15 female
USB: 1 x USB Type A female | | Buttons or Switches | Reset: 1 x semi-recessed pushbutton
Power: 1 x rocker
Firmware upgrade: 1 x slide
LCD power: 1
LCD adjustment: 4 x pushbutton | | Video Resolution | 1280 x 1024 @ 75 Hz; DDC2B | | OS Compatibility | Windows: NT and up
Linux: RedHat 7.1 and up; SuSE 9.0 and up; Mandriva (Mandrake) 9.0 and up
UNIX: AIX 4.3 and up; FreeBSD 4.2 and up; Sun Solaris 8 and up
Novell: Netware 5.0 and up
DOS: 6.2 and up | | LEDs | Power on: 1
LCD power: 1 | | Emulation | Keyboard, mouse: PS/2, USB | | Environment | Humidity: 0 - 80% RH, non-condensing
Operational temperature: 32 - 104°F (0 - 40°C)
Storage temperature: -4 - 140°F (-20 - 60°C) | | Power Input Rating | 100 - 240 VAC, 50/60 Hz | | Power Consumption | 27.4 W / 94 BTU/h; 28.0 W / 96 BTU/h | | Dimension L x W x H | 26.8 x 18.9 x 1.7" (68.0 x 48.0 x 4.4 cm) | | Weight | 32.5 lb (14.8 kg) | | | | Package Weight | 46.1 lb | | Box Dimensions (LxWxH) | 33.0 x 26.5 x 6.0" |
