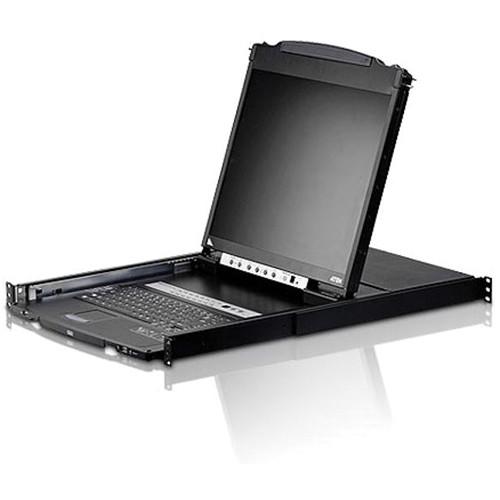

Product description The Aten CL5808N 8-Port 19" Dual Rail LCD Combo KVM Switch is a control unit that allows access to multiple computers from two PS/2 or USB KVM consoles. An extra console port is provided on the rear panel to manage the LCD KVM switch from an optional external console. The built-in 19" LCD monitor and keyboard/touch pad modules slide independently of each other for added versatility. To maximize space in your data center, the keyboard/touch pad module slides back to "hide away" when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity.
You can quickly and conveniently switch computer access with station and port selection pushbutton switches located on the keyboard module. Even when the keyboard module is in the retracted position you can still switch access with the Port Up/Port Down pushbuttons located on the monitor module. The CL5808N supports both PS/2 and USB keyboards and mice for the connected computers, and the CL5808N also supports USB peripheral devices to be used with the attached computers. A single CL5808N can control up to 8 computers, and as many as 31 additional compatible KVM switches can be daisy chained together, so that up to 256 computers can all be controlled from a single keyboard, monitor, and mouse console. - Integrated KVM console with 19" LCD in a dual rail housing
- Up to two consoles (one bus) control up to 8 computers
- Daisy-chain up to 31 additional units (with compatible KVM switches) to control up to 256 computers from two consoles (one bus)
- Dual interface - supports computers and console with PS/2 or USB keyboards and mice
- Supports USB peripherals for computers connected to the local station
- LCD module rotates up to 120° for a versatile viewing angle
- Console lock - enables the console drawer to remain securely locked away in position when not in use
- Multiplatform support - Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for Windows, Mac, and Sun
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
- Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB keyboard, and USB mouse)
- Supports external USB mouse
- Supports resolutions up to 1280 x 1024 @ 75 Hz
- No software required - computer selection controlled via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy chained installations - no need for manual dip switch setting; front panel LED indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security - only authorized users can view and control computers
- LCD power button helps save energy and prolong display's life
- Supports one administrator and four user accounts with separate profiles
- Auto scan mode enables continuous monitoring of user-selected computers
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
- Hot pluggable - add or remove computers without having to power down the switch
- Beeper on/off via hotkey and OSD
- Firmware upgrades to all the chained KVM switches at the same time via the daisy chain cable
- Keyboard language support: English (US), English (UK), German, German (Swiss), French, Spanish, Traditional Chinese, Japanese, Korean, Swedish, Italian, Russian, Hungarian, Greek
UPC: 672792002342 In the Box ATEN CL5808N 8-Port 19" Dual Rail LCD Combo KVM Switch Standard Rack Mounting Kit 2 x Custom KVM Cables 5-in-1 Console Cable Firmware Upgrade Cable 6' Power Cord 4' Grounding Wire Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CL5808N 8-Port 19" Dual Rail LCD Combo KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CL5808N Specs | Max Computer Connections | Direct: 8
Daisy chain or cascading: 256 | | Console Connectors | Keyboard, mouse, and monitor: 8 x SPHD-15/17 female
Flash ROM upgrade: 1 x RJ-11
Secondary console: 1 x SPHD-18 male (additional console port)
Extra mouse: 1 x USB Type A female
USB peripheral: 1 x 1 x USB Type A female
Daisy chain: 1 x DB-25 male | | Video Resolution | Local: 19" LCD 1280 x 1024 @ 75 Hz; DDC2B
Remote (from secondary console): 1920 x 1440 | | Scan Interval | 1 - 255 sec. | | Emulation | Keyboard and mouse: USB, PS/2 | | Port Selection | OSD, hotkeys, pushbuttons | | Buttons or Switches | Port selection: 8 x pushbutton
LCD adjustment: 4 x pushbutton
LCD power: 1 x pushbutton
Firmware upgrade: 1 x slide
Power: 1 x rocker switch
Reset: 1 x semi-recessed pushbutton | | LED Indicators | On line: 8 x orange
Selected: 8 x green
Station ID: 2 x 7-segment LED display (orange)
Power on: 1 x dark green | | Enclosure | Metal / plastic | | OS Compatibility | Windows: 2000 and up
Linux: RedHat 7.1 and up; SuSE 9.0 and up; Mandriva (Mandrake) 9.0 and up
UNIX: AIX 4.3 and up; FreeBSD 4.2 and up; Sun Solaris 8 and up
Novell: Netware 5.0 and up
Mac: OS 9 and up
DOS: 6.22 | | Environment | Humidity: 0 - 80% RH, non-condensing
Operation temperature: 32 - 122°F (0 - 50°C)
Storage temperature: -4 - 140°F (-20 - 60°C) | | Power Requirements | 100 - 240 VAC, 50/60 Hz | | Power Consumption | 120 V, 30.1 W, 103 BTU ; 230 V, 30.7 W, 105 BTU | | Dimensions (W x D x H) | 26.8 x 18.9 x 1.7" (68.1 x 48.0 x 4.4 cm) | | Weight | 33.1 lbs (15.0 kg) | | | | Package Weight | 42.5 lb | | Box Dimensions (LxWxH) | 33.78 x 27.78 x 6.78" |
