User Manual for ATEN CL5808NCKIT 8-Port 19" Dual Rail LCD KVM Kit with Eight Cables Click to enlarge the picture
Contents of the user manual for the ATEN CL5808NCKIT 8-Port 19" Dual Rail
- Product category: LCD KVM Consoles ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN LCD KVM Consoles
 |
User manual for the ATEN CL5808NCKIT 8-Port 19" Dual Rail contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

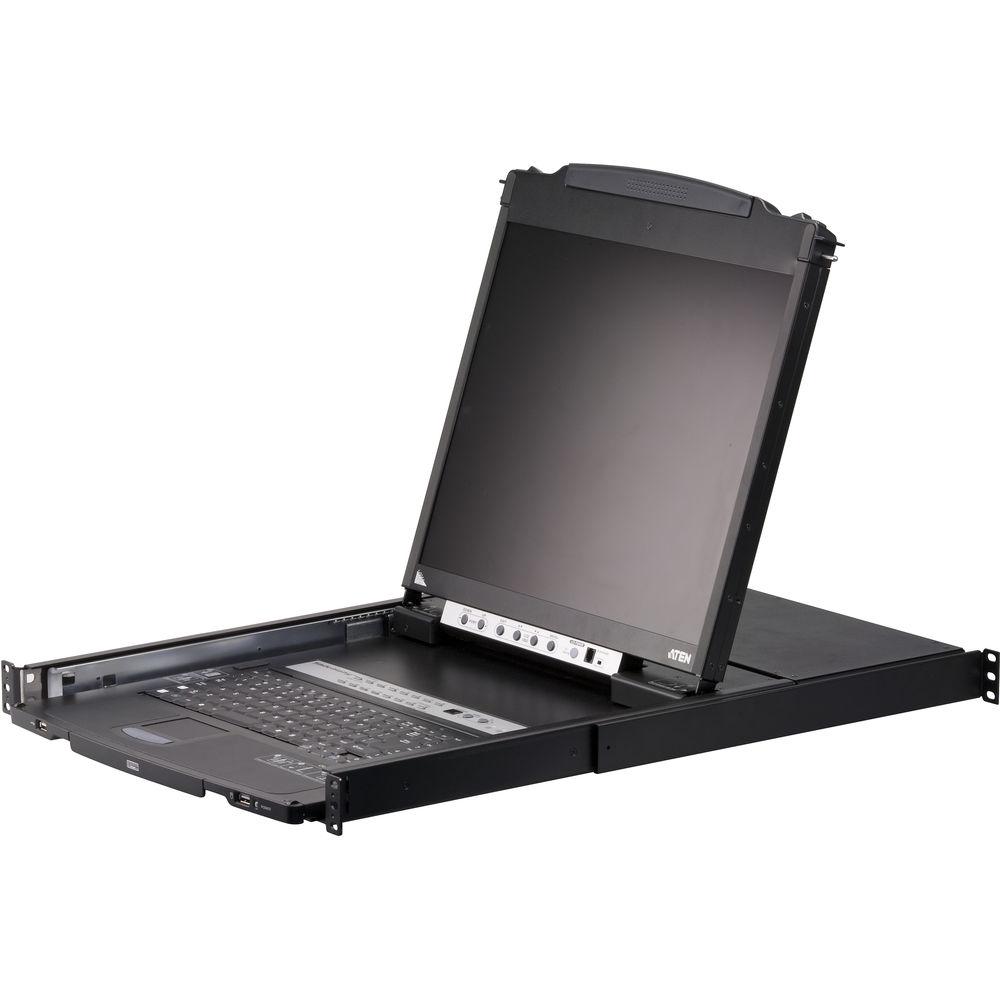

Product description This ATEN CL5808NCKIT 8-Port 19" Dual Rail LCD KVM Kit with Eight Cables includes the rack-mountable eight-port KVM station with LCD screen, two 4' cables, four 6' cables and two 10' cables so your station is ready to run and control its full capacity of computers. -
- Integrated KVM console with 19" LCD in a dual rail housing
- Space saving technology; up to two consoles (one bus) control up to 8 computers
- Dual Interface supports computers and console with PS/2 or USB keyboards and mice
- Supports USB peripherals for computers connected to the top tier

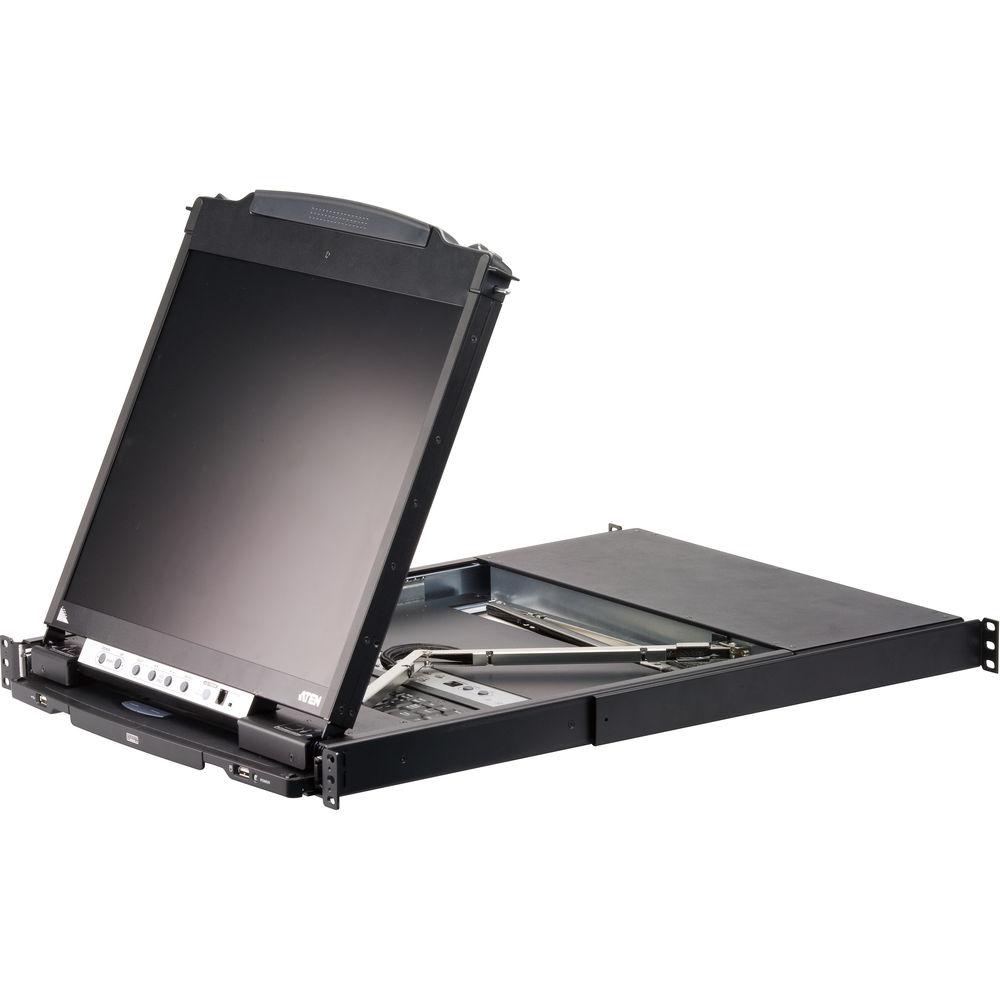

- LCD module rotates up to 120 degrees for a more comfortable viewing angle
- Console Lock enables the console drawer to remain securely locked away when not in use
- Multiplatform support: Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
- Extra console port enables you to manage computers in the LCD KVM switch from an external console (monitor, USB keyboard, and USB mouse)
- Supports external USB mouse
- Video quality supports resolutions up to 1280 x 1024 @ 75 Hz
- No software required; convenient computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy chained installations; no need for manual dip switch setting; front panel led indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security - only authorized users can view and control computers
- LCD power button helps save energy and prolong display's life
- Supports one administrator and four user accounts with separate profiles
- Auto Scan mode enables continuous monitoring of user-selected computers
- Commands from the keyboard can be broadcast to all available computers on the installation
- Hot pluggable: add or remove computers without having to power down the switch
- Beeper on/off via hotkey and OSD
- Firmware upgrades to all the chained KVM switches at the same time via the daisy chain cable
- Daisy-chain up to 31 additional units*; control up to 256 computers from two consoles (one bus)

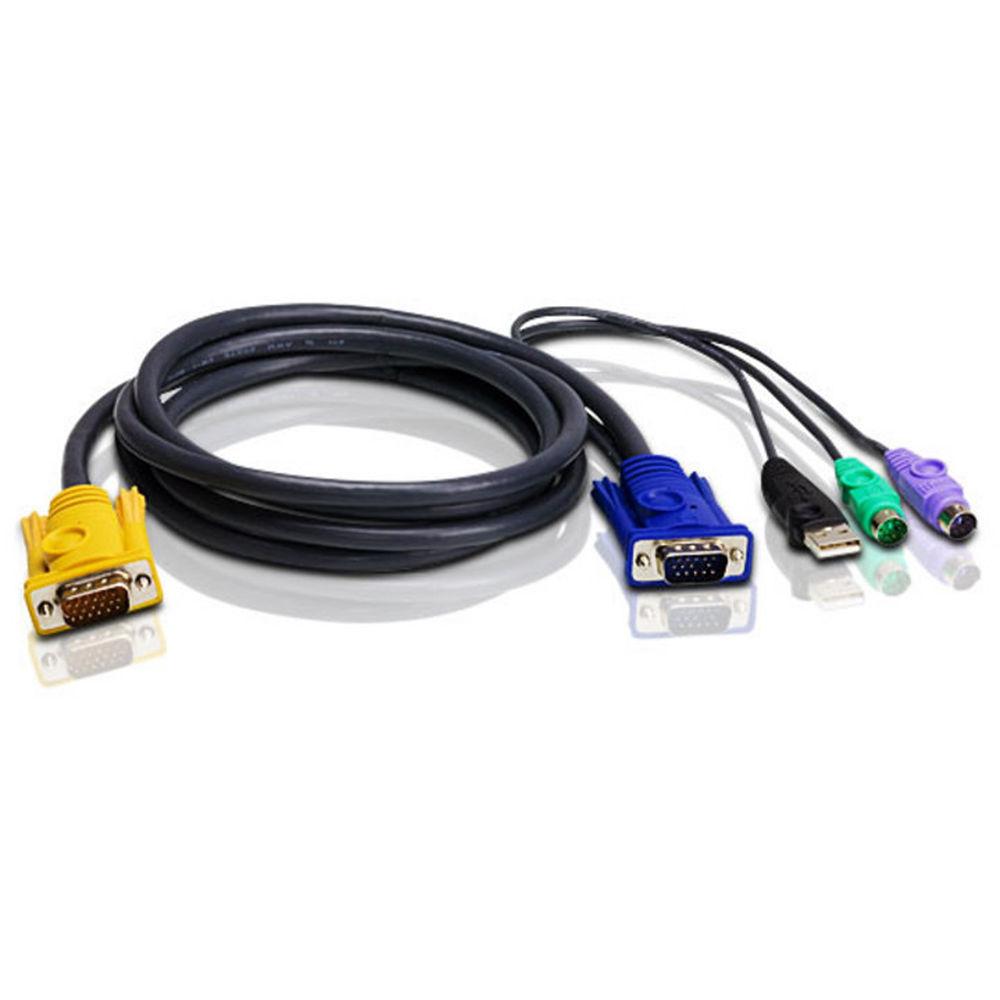

1 Please Note: *With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A, CS1716A close UPC: 881317509055 In the Box ATEN CL5808NCKIT 8-Port 19" Dual Rail LCD KVM Kit with Eight Cables 2 x 2L-5301UP PS/2 USB KVM Cable (4') Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CL5808NCKIT 8-Port 19" Dual Rail LCD KVM Kit with Eight Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CL5808NCKIT Specs | | | Package Weight | 52.0 lb | | Box Dimensions (LxWxH) | 36.3 x 30.5 x 7.1" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
