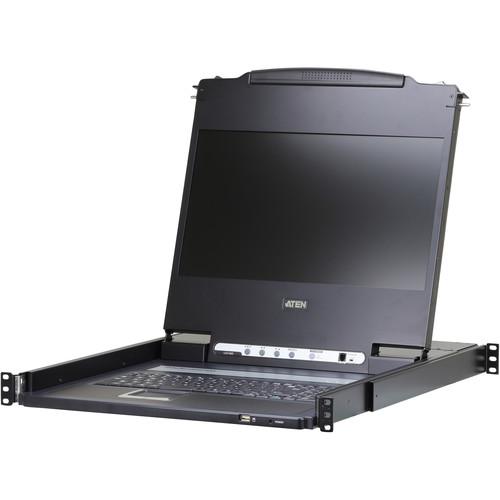

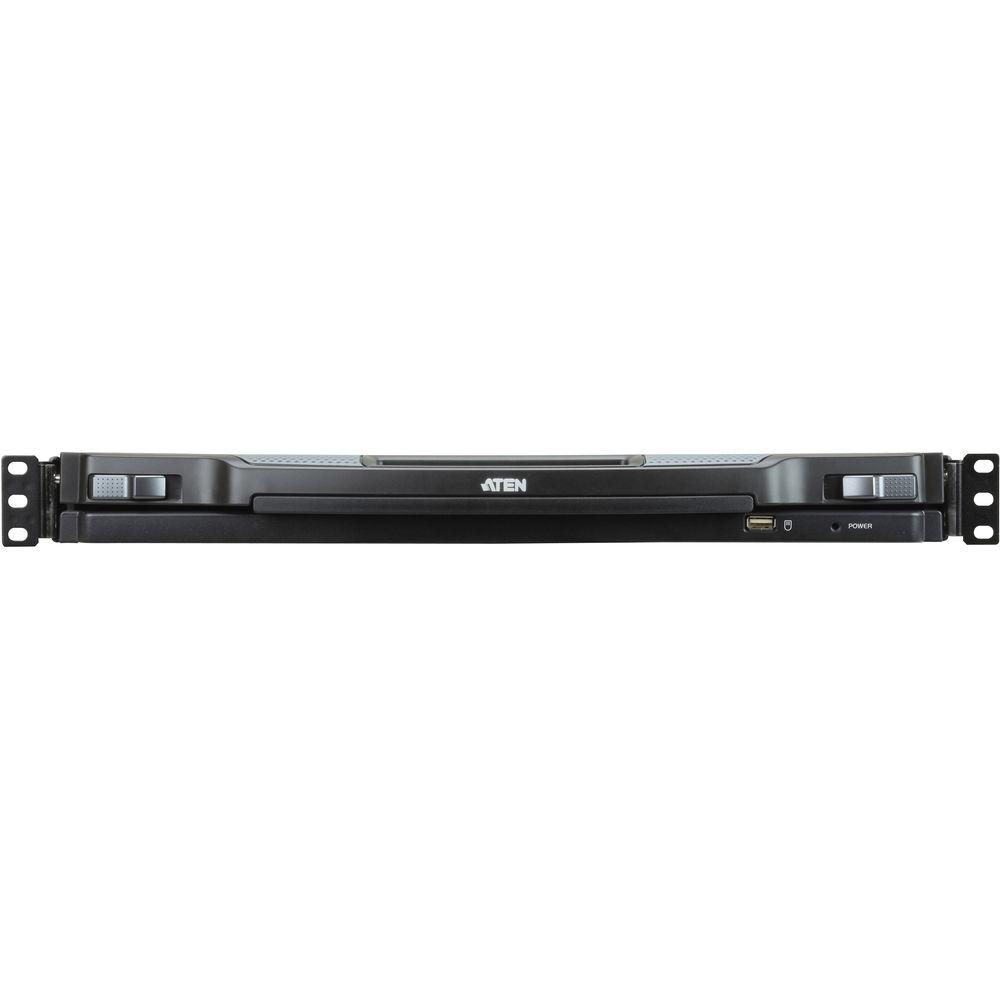

Product description The CL6700MW DVI Full HD LCD Console from ATEN is a single rail KVM console featuring a 17.3" LED-backlit high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The full HD console provides front end access to compatible KVM switches utilizing space with a module that closes flat and slides into the rack. The single rail design allows the LCD monitor, keyboard, and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources i.e. VGA, DVI, or HDMI for the console and CPU connection. Additionally, the full HD console provides two HDMI ports that allow for connecting a high-definition monitor to the console port, and/or an HDMI compatible switch to the KVM port. The CL6700MW features a port for an external USB mouse on the unit's front panel, while ports for the second KVM console (keyboard, mouse, and DVI, HDMI, or VGA monitor) are provided on the rear panel. Server rooms already installed with compatible DVI KVM switches will have the advantage of easy access, an additional console, and a built-in space saving sliding module, without having to purchase a KVM switch. It also includes two mini stereo ports for connecting audio speakers. - Integrated KVM console with a 17.3'' LED-backlit Widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Standard rack mount kit includes optional easy rack mounting (single person installation) rack mount kit available (requires separate purchase)
- Supports an external console with USB / DVI / VGA / HDMI connectors
- Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
- Video quality up to 1920 x 1080, 60Hz, DDC, DDC2, DDC2B
- Audio support for connecting speakers
- Standard 105-key keyboard, sun keyboard emulation
- Multiplatform support Windows, Linux, Mac, and Sun
- Adjustable depth to fit within the rack
- Console lock enables the console drawer to remain securely locked away in position
- DDC emulation video settings of attached computers are automatically adjusted for optimal output to the monitor
UPC: 672792402760 In the Box ATEN CL6700MW DVI Full HD LCD Console Standard Rack Mount Kit Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CL6700MW DVI Full HD LCD Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

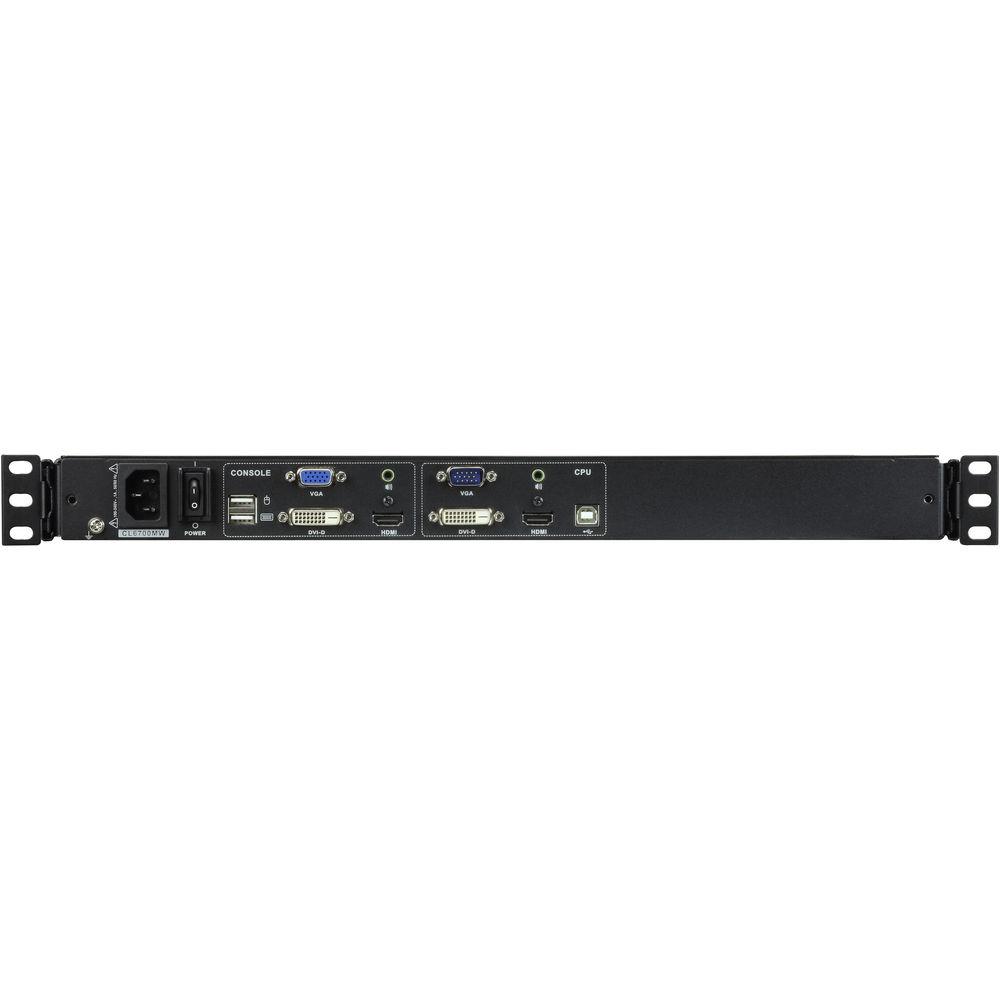

Technical parametersATEN CL6700MW Specs | Connections | 1 | | Console Selection | Hotkey | | | | Keyboard | 1 x USB type A female | | Mouse | 1 x USB type A female | | Monitor | 1 x DVI-D female (white)
1 x HDB-15 (VGA) female (blue)
1 x HDMI female (black) | | Speaker | 1 x mini stereo jack female (green) | | | | Keyboard / Mouse | 1 x USB type B female (white) | | Monitor | 1 x DVI-D female (white)
1 x HDB-15 (VGA) male (blue)
1 x HDMI female (black) | | Speaker | 1 x mini stereo jack female (green) | | External Mouse/Peripheral | 1 x USB type A female (black) | | Firmware Upgrade | 1 x RJ-11 female (black) | | Power | 1 x 3-Prong AC socket | | | | Reset | 1 x Semi-recessed pushbutton | | Power | 1 x Rocker | | F/W Upgrade | 1 x Slide | | LCD Power | 1 x Pushbutton | | LCD Adjustment | 4 x Pushbutton | | Power | 1 (green) | | Lock | Num: 1 (green)
Caps: 1 (green)
Scroll: 1 (green) | | | | Keyboard /Mouse | USB | | Video | 1920 x 1080, 60Hz, DDC2B | | I/P Rating | 100 to 240 VAC, 50 to 60Hz, 1 A | | Power Consumption | 120 V, 19.4 W / 230 V, 19.4 W | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH (non-condensing) | | | | Housing | Metal | | Dimensions (L x W x H) | 23.2 x 18.9 x 1.7" (58.9 x 48.0 x 4.4 cm) | | Weight | 25.1 lb (11.38 kg) | | | | Package Weight | 36.6 lb | | Box Dimensions (LxWxH) | 28.3 x 26.8 x 5.5" |
