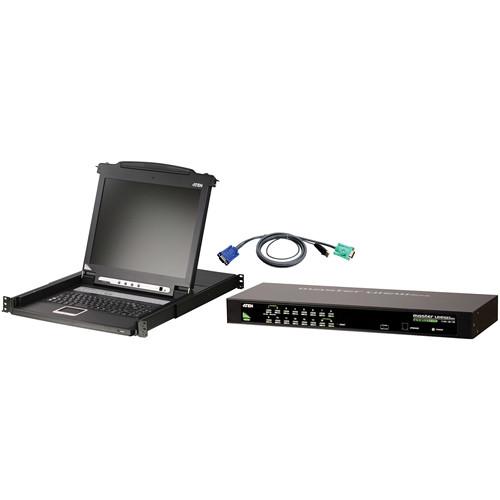

Product description The Aten CLCS1316MUKIT 17" LCD Console, 16-Port KVM Switch, and 16 Cable Bundle is comprised of the Aten CL1000M 17" LCD Console and the Aten CS1316 16-Port USB PS/2 KVM Switch. The CL1000M LCD Console is a KVM console module that serves as the front-end for standard KVM switches. The CL1000M features an integrated 17" LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, and Slideaway housing. Users who already have a KVM switch can install the CL1000M LCD KVM console without having to purchase a KVM switch.
The CS1316 KVM switch allows access and control of up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded, bringing the total number of connected computers to 256 that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers - A single console controls up to 16 computers
- Dual interface - supports computers and console with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Display emulation technology - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Auto PS/2 and USB interface detection
- USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Video resolution up to 2048 x 1536; DDC2B
- No software required - convenient computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security; only authorized users view and control computers; up to four users and an administrator with separate profiles for each
- Auto scan feature for monitoring user-selected computers
- Broadcast mode - operations simultaneously performed on all selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
- Rack mountable in 19" system rack (1U)
UPC: 672792503528 In the Box ATEN CLCS1316MUKIT 17" LCD Console, 16-Port KVM Switch, and 16 Cable Bundle 17" Single Rail LCD Console CS1316 16-Port PS/2 / USB KVM Switch 4 x 2L-5202U USB KVM Cable (6') 8 x 2L-5203U USB KVM Cable (10') 4 x 4' USB KVM Cable Limited 2-Year Warranty Limited 1-Year Warranty (LCD Panel) Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CLCS1316MUKIT 17" LCD Console, 16-Port KVM Switch, and 16 Cable Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CLCS1316MUKIT Specs | Supported Operating Systems | Windows: 2000 and up
Linux: Redhat 7.1 - 7.3, 8.0, 9.0, Fedora Core 2 - 4; SuSE 8.2, 9.3, 10; Mandriva (Mandrake) 9, 2005 Limited Edition, 2006
UNIX: AIX 4.3, 5L; FreeBSD 4.2, 4.5
Novell: Netware 5.0 (does not support USB), 6.0 | | Emulation | LCD console:
Keyboard, mouse: PS/2
KVM switch:
Keyboard, mouse: PS/2, USB | | Console Connectors | Keyboard, mouse, and monitor: 1 x SPHD-15 female | | KVM Ports | To console:
Keyboard, mouse, and monitor: 1 x SPHD-18 male
Flash ROM upgrade: 1 x RJ-11 female
From computers:
Keyboard, mouse, and monitor: 16 x SPHD-15 female | | Buttons or Switches | Port selection: 16 x pushbutton
Firmware upgrade: 1 x slide | | Environment Requirements | Operation temperature: 32 - 122˚F (0 - 50˚C)
Storage temperature: -4 - 140˚F (-20 - 60˚C)
Humidity: 0 - 80% RH, non-condensing | | LEDs | On line: 16 (orange)
Selected: 16 (green)
Power on: 1 (dark green) | | Video Resolution Supported | LCD console: 1280 x 1024 @ 75 Hz; DDC2B
KVM switch: 2048 x 1536; DDC2B | | Scan Interval | 1 - 255 sec | | Power Consumption | LCD console: 120 V 60 Hz 22.8 W / 230 V 50 Hz 24 W
KVM switch: DC 5.3 V; 6.6 W | | Dimensions (L x W x H) | LCD console: 23.6 x 18.9 x 1.8" (59.9 x 48.0 x 4.6 cm)
KVM switch: 17.0 x 6.3 x 1.7" (43.2 x 16.0 x 4.3 cm) | | Weight | LCD console: 30.0 lb (13.6 kg)
KVM switch: 4.2 lb (1.9 kg) |
