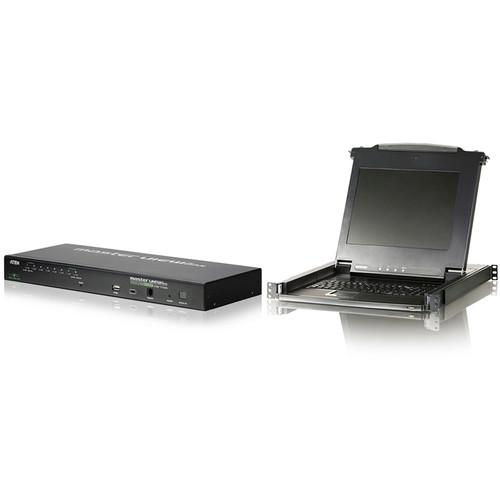

User Manual for ATEN CLCS1708IKIT LCD Console with 8-port IP KVM Bundle Click to enlarge the picture
Contents of the user manual for the ATEN CLCS1708IKIT LCD Console with 8-port
- Product category: LCD KVM Consoles ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN LCD KVM Consoles
|
User manual for the ATEN CLCS1708IKIT LCD Console with 8-port contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The CLCS1708IKIT LCD Console with 8-port IP KVM Bundle from Aten combines a 17" Single Rail LCD Console with an 8-port PS/2-USB KVM Over IP Switch for a full control center. The console functions as the front end of the switch, providing an integrated 17" LED-backlit LCD panel, a full keyboard, and a touchpad. The switch allows you to monitor and access up to 8 computers locally, and up to 128 computers through a daisy chain connection. When using the system remotely, you can access the switch over the Internet through a web browser with TCP/IP remote communications protocol. The CLCS1708IKIT features a message board, enabling the connected computers to communicate with each other through a program resembling an Internet chat session. The bundle supports security protocols, including a 128-bit SSL encryption for the browser, and an RC4 128-bit encryption for secure keyboard, mouse, and video data transmission. Hardware - Monitor and control up to 8 computers from a single KVM console
- Daisy chain up to 15 additional computers, allowing you to control a total of 128 computers
- Auto-senses the position of each station on daisy chained installations, and a front panel LED indicates the station's position
- Multiplatform support of Windows, Linux, Mac, and Sun
- Supports PS/2 or USB keyboard and mouse computers
- Video DynaSync technology stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Video resolutions of up to 2048 x 1536; DDC2B for the local console, and up to 1600 x 1200 @ 60Hz / 24-bit color depth for remote sessions
- Rack mountable in a 19" system rack
Management - Panel array mode enables you to monitor multiple servers from a single screen at the same time
- Up to 32 concurrent logins
- Perform simultaneous operations on all selected computers through the broadcast mode
- Port names automatically reconfigure when station sequence is changed
- Message board allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
- On-screen keyboard with multilanguage support
Security - Secure keyboard, mouse, and video transmission with RC4 128-bit encryption
- 128-bit SSL browser access
- Up to 64 user accounts with separate profiles for each, and two level password security
- Remote authentication support of RADIUS, LDAP, LDAPS, and MS Active Directory
- Support for IP/Mac Filter
- Local and remote access logged and authenticated
UPC: 881317509031 In the Box ATEN CLCS1708IKIT LCD Console with 8-port IP KVM Bundle 17" Single Rail LCD Console frqsussvrfeadttyzquwxyseeyyubt Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CLCS1708IKIT LCD Console with 8-port IP KVM Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CLCS1708IKIT Specs | | | Power Consumption | 120 V, 60 Hz, 22.8 W / 230 V, 50 Hz, 24 W | | Emulation | Keyboard: PS/2
Mouse: PS/2 | | Computer Connections | Direct: 1 | | Connectors | Keyboard, Mouse, Monitor: 1 x SPHD-15 Female
Power: 3-prong AC socket | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 0 to 80% RH, non-condensing | | Housing | Metal | | Dimensions | 18.9 x 21.2 x 1.7" / 48.0 x 53.8 x 4.4 cm | | Weight | 26.5 lb / 12.0 kg | | | | Computer Connections | Direct: 8
Daisy Chain: 128 | | Port Selection | OSD, hotkey, pushbutton | | Connectors | Console Connectors: 1 x SPHD-18 Male
CPU Connectors: 8 x SPHD-17 Female
Daisy Chain: 1 x DB-25 Male
Power: 1 x DC jack
LAN: 1 x RJ45 Female
USB: 1 x USB Type A | | Switches | Reset: 1 x Semi-recessed pushbutton
Port Selection: 8 x Pushbutton
F/W Upgrade: 1 x Slide | | LED Indicators | 8 x On line
8 x Selected
2 x Station ID 7-segment
1 x Power on
1 x 10/100 MB per sec | | Emulation | Keyboard: USB, PS/2
Mouse: USB, PS/2 | | Video | Local: 2048 x 1536, DDC2B
Remote: 1600 x 1200 @ 60Hz / 24-bit color depth | | Scan Interval | 1 to 255 sec | | Power Consumption | 5.3 VDC, 9.5 W, 34 BTU per hr | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 0 to 80% RH, non-condensing | | Housing | Metal | | Dimensions | 17.0 x 6.3 x 1.7" / 43.2 x 16.0 x 4.3 cm | | Weight | 6.2 lb / 2.8 kg |
