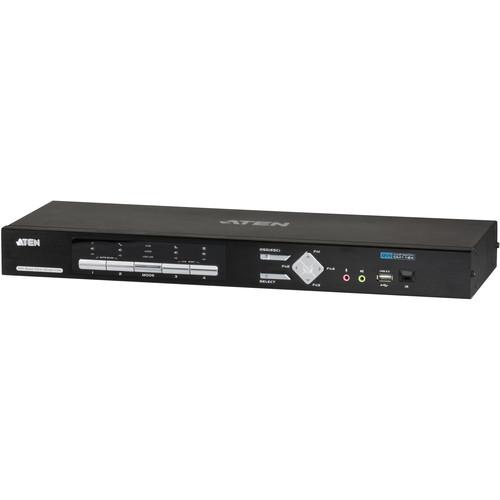

User Manual for ATEN CM1164 4-port USB DVI-D KVMP Control Center Click to enlarge the picture
Contents of the user manual for the ATEN CM1164 4-port USB DVI-D KVMP
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
 |
User manual for the ATEN CM1164 4-port USB DVI-D KVMP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More ysvutterrqybuv - Multi-View Management Solution for Control Room - ATEN CM1164
The ATEN CM1164 4-port USB DVI-D KVMP Control Center provides KVM switch functionality by combining a 4-port DVI-D switch with a 2-port USB hub, and with the following display modes: Quad View mode, which simultaneously displays four digital computers or video sources on a single screen, as well as Picture in Picture mode (Dual, Triple or Quad) and full screen mode to meet specific demands. In addition, the CM1164 provides Daisy-Chain Control (DDC) functionality. A DCC port allows users to connect and control up to four CM1164 units via a single console. This enables the use of only one keyboard and mouse over several computers or another CM1164. This is convenient for growing networks that need to monitor and manage more computers, daisy-chain up to four units and switch between up to 16 computers. With its design and features, the CM1164 4-port USB DVI-D KVMP Control Center is a solution for a wide range of practical applications, including control rooms, monitoring systems, and traffic control centers, allowing you to switch seamlessly between four DVI-enabled PCs and share USB peripherals and audio from a multi-view console. -
- One USB console independently and simultaneously controls four DVI-D computers and two additional USB devices
- Multi-view console controls up to 4 video sources on one screen

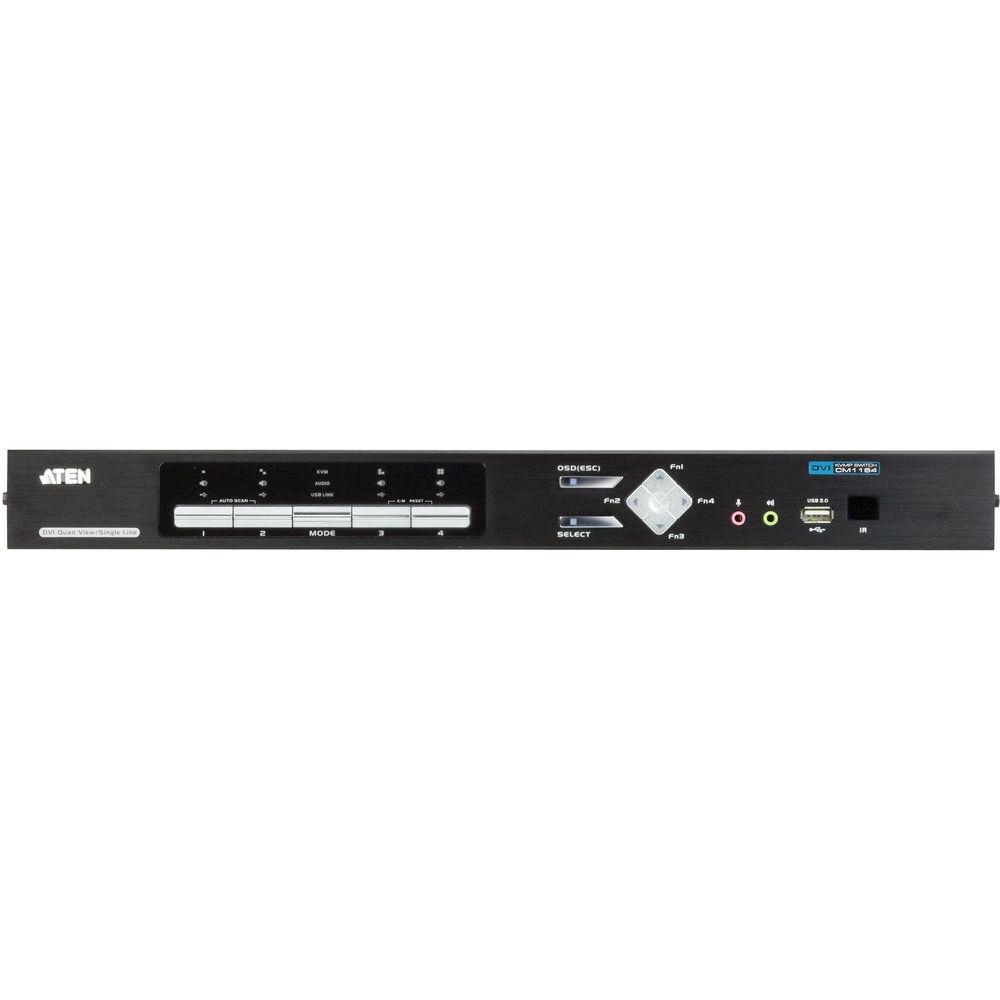

- Function control and system setting via Front Panel, OSD, IR Remote - display mode, port selection, daisy chain, and so on
- Channel Editor - edit display windows, and other functions with the mouse and on-screen control panel
- Hardware Cursor - OSD navigation via console mouse
- DCC (Daisy Chain Control) port enables users to connect up to four CM1164 units, and use one console keyboard/mouse to manage computers or another CM1164
- Video DynaSync - ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- 2-port USB 2.0 hub built in, fully compliant with USB 2.0 specification
- Computer selection via front panel push buttons, hotkeys, IR Remote Control and OSD (with mouse* function enabled)
- Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice***
- Console keyboard emulation /bypass feature that support most multimedia keyboards***
- Independent switching for USB peripheral port, audio function, and KVM switch focus
- Power on detection
- Auto scan feature
- Multiplatform support - Windows, Linux, Mac and Sun
- Keyboard and Mouse support emulation and bypass
- Superior video quality - up to 1920 x 1200 resolution
- Multilingual keyboard mapping-Supports English, Japanese, and French keyboards
- Full bass response provides a rich experience for 2.1 channel audio
- Mac/Sun keyboard support and emulation**
- Upgradeable firmware through computers' USB port
1 Please Note: * For 3-key USB wheel mouse only
**PC keyboard combinations emulate Mac/Sun keyboards.
**Mac/Sun keyboards only work with their own computers.
***The USB keyboard and mouse console ports on the CM1164's rear panel will only support a USB keyboard and mouse.
close UPC: 672792003592 In the Box ATEN CM1164 4-port USB DVI-D KVMP Control Center Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CM1164 4-port USB DVI-D KVMP Control Center in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

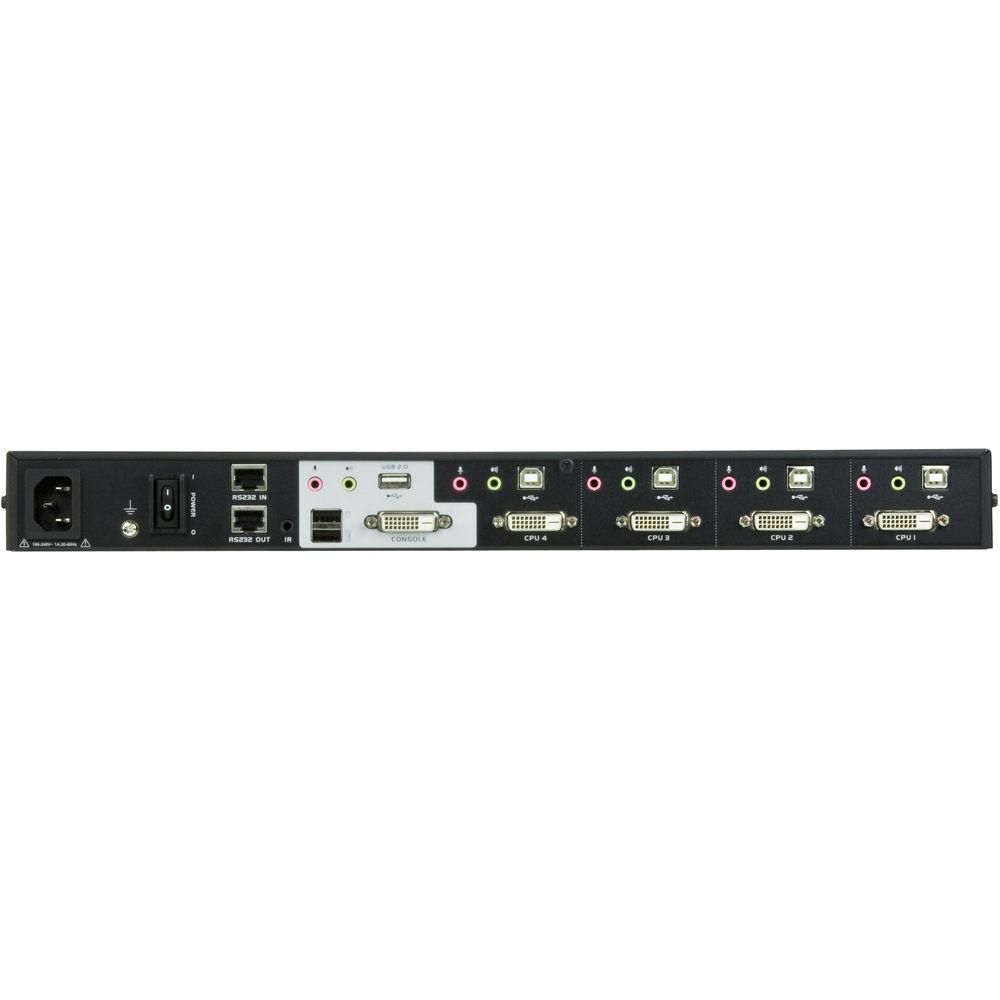

Technical parametersATEN CM1164 Specs | Max Computer Connections | 4 ea | | Port Selection | Front Panel Pushbuttons; Hotkeys; IR Remote Control; On-Screen Display (OSD) | | | | Console Ports | Keyboard: 1 x USB Type A Female (Black; rear panel)
Video: 1 x Single Link DVI-D Female (White)
Mouse: 1 x USB Type A Female (Black; rear panel)
Speaker: 2 x Mini Stereo Jack Female (Green; 1 x front panel,1 x rear panel)
Mic.: 2 x Mini Stereo Jack Female (Pink; 1 x front, 1 x rear)
DC Control: 2 x RJ-45
| | KVM Ports | Keyboard / Mouse: 4 x USB Type B Female (White)
Video: 4 x Single Link DVI-D Female (White)
Speaker: 4 x Mini Stereo Jack Female (Green)
Mic.: 4 x Mini Stereo Jack Female (Pink) | | Power | 1 x IEC320 Jack | | USB 2.0 | Hub - 2 x USB Type A Female (White; 1 x front panel; 1 x rear panel) | | Switches | Selected: 11 x Pushbuttons | | LEDs | KVM: 4x Orange
Audio: 4x Green
USB: 4x Green
| | Emulation | Keyboard / Mouse: USB | | Video | 1920 x 1200 @ 60 Hz (DVI-D) | | Scan Interval | 1-99 secs. (Default: 5 secs) | | Power Consumption | 100V/ 6.7 W; 240V/ 13.6 W | | | | Environment | Operating Temperature: 0-40°C
Storage Temperature:: -10-60°C
Humidity: 0-80% RH, Non-condensing
| | Material | Metal housing | | Dimensions (WxHxD) | 17.4 x 6.5 x 1.8" / 43.72 x 16.38 x 4.40 cm | | Weight | 5.6 lb / 2.50 kg | | | | Package Weight | 10.3 lb | | Box Dimensions (LxWxH) | 21.3 x 9.3 x 5.4" |
