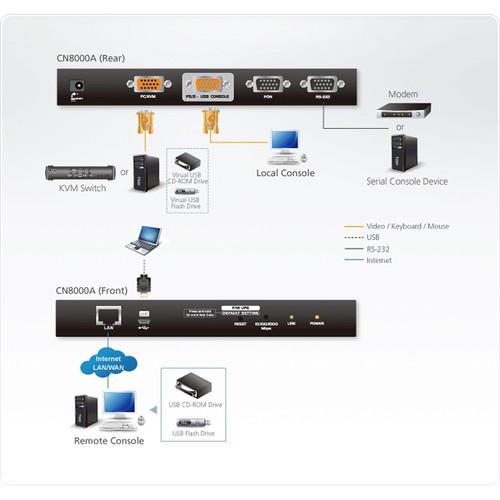

Product description Multi-Monitors: Maximizing Multitasking Read More szbtzxdudcqdzybzysbafxatyde The ATEN CN8000A Single Port VGA KVM over IP Switch features resolutions up to 1920 x 1200, LUC (Laptop USB Console) for easier KVM access, user-friendly local console OSD and virtual media function without additional cable. It provides access control through over-IP for conventional KVM switches that do not have built in over-IP functionality. It allows system operators to monitor and access computers from remote locations using standard Web browsers or Windows and Java based application programs. The CN8000A connects to the Intranet either LAN or WAN simply by using an industry standard Cat 5e/6 cable, and is connected to a local KVM switch or server via a custom KVM cable.
The switch uses the standard TCP/IP protocols for communications; it allows the connected server or KVM switch to be accessed from any computer over the internet - whether that computer is located down the hall, in other areas of the country or branch offices in other parts of the world. It has a dedicated RS-232 port for modem access or serial console management, a PON port to connect a ATEN PDU device and USB 2.0 virtual media capability.
A Windows Client Viewer and a Java Applet Viewer are available for browser access, while Windows Client AP and Java Client AP programs are provided for non-browser GUI access. They allow IP connection and login from anywhere over the internet. Inclusion of a Java-based client ensures that the CN8000A is an independent platform, and is able to work with practically all operating systems.
To meet advanced security requirements, the CN8000A's Virtual Media function allows a Smart Card / CAC reader on a local system to be mapped to a remote server. The CN8000A provides a fast, reliable, and a cost effective way to remotely access and manage widely distributed multiple computer installations. - Hardware
-
- Provides over-IP capability to KVM switches that do not have built in over-IP functionality
- Supports PS/2,USB, Sun Legacy (13W3) and serial (RS-232) connectivity
- Local console provides PS/2, USB keyboard and mouse support
- Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
- Virtual media support
- High video resolution – up to 1920 x 1200 @ 60 Hz- 24-bit color depth for the local console; up to 1920 x 1200 @ 60 Hz with 24 bit color depth for remote sessions
- Enhanced fps (frames per second) throughput for crisp responsive video display
- Management
-
- Laptop USB Console (LUC) – A dedicated USB port directly connects to laptop for easy console operation
- Easy configuration through local console OSD
- Up to 64 user accounts – up to 32 users simultaneously share the control
- End session feature – administrators can terminate running sessions
- Event logging and Windows-based Log Server support
- Critical system events sent by email and SNMP trap; and Syslog support
- Remote Firmware upgradable
- Serial console management – serial terminal access
- Access the switch via a built-in serial viewer, or via third party software (such as PuTTY) for Telnet and SSH sessions
- PPP mode (modem) dial-in/dial back/dial out support for out-of-band, and low bandwidth operation
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Local/Remote Share Mode to conveniently grant shared or exclusive console privilege
- Integration with ATEN CC2000 Centralized Management Software
- Power Over the NET integration for remote power control
- DDNS (Dynamic Domain Name System)
- Export/import user account and configuration settings
- Enable/disable browser operation
- IPv6 capable
- Easy-to-Use Interface
-
- Browser-based and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Multi-browser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
- Full-screen or sizable and scalable virtual remote desktop
- Magic panel
- Advanced Security
-
- Smart Card /CAC Reader Support
- External authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- TLS 1.2 encryption to protect password when users log in
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
- Support for IP/MAC Filter
- Supports password protection
- Private CA
- Virtual Media
-
- Virtual media enables file applications, OS patching, software installation, and diagnostic testing
- Works with USB enabled servers in operating system and BIOS level
- Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
- Convenient to use without virtual media cable
- Virtual Remote Desktop
-
- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Full screen video display or scalable video display
- Message Board for communication among remote users
- On-screen keyboard with multi-language support
- Mouse Dynasync
- Exit Macros support
- BIOS-level access
UPC: 672792007026 In the Box ATEN CN8000A Single Port KVM over IP Switch Custom KVM Cable Set Custom Console Cable Set Laptop USB Cable Power Adapter Rack Mounting Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CN8000A Single Port KVM over IP Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

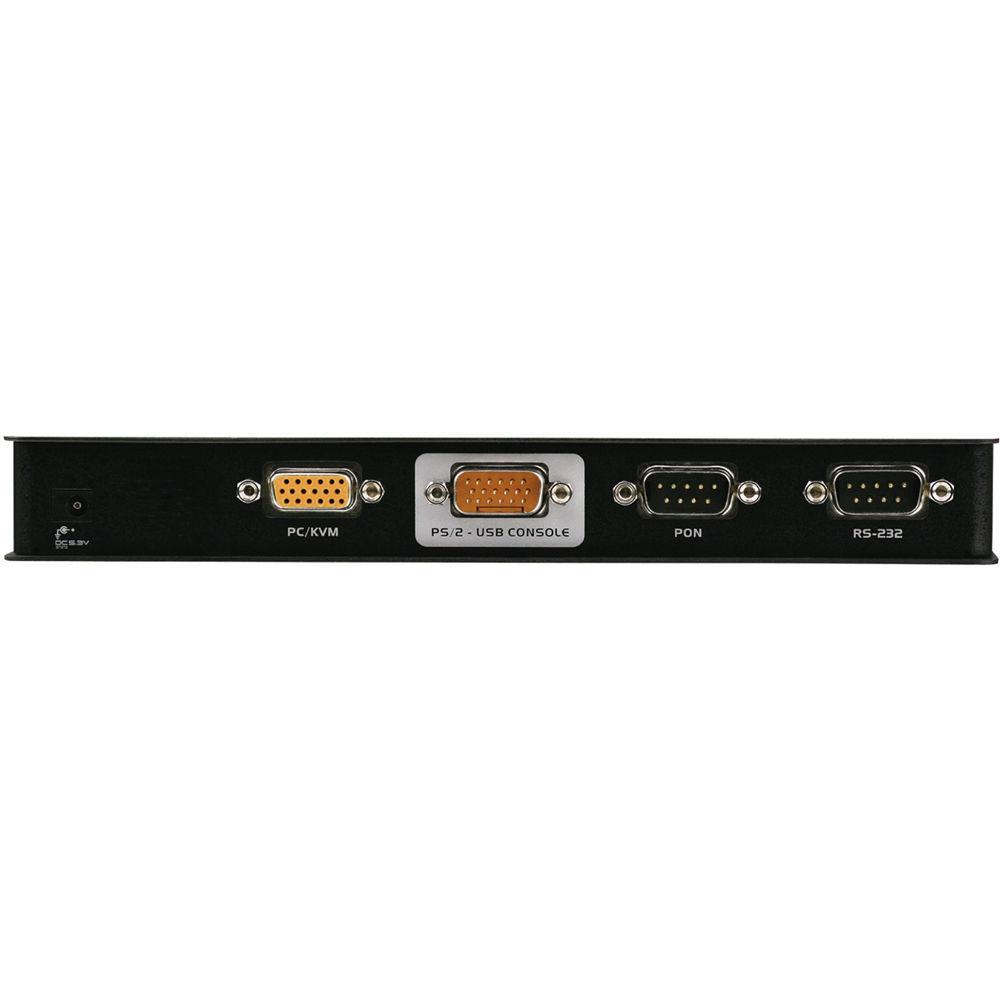

Technical parametersATEN CN8000A Specs | Connectors | Console Ports: 1 x SPHD-18 Male (Yellow)
KVM (Computer) Ports: 1 x SPHD-18 Female (Yellow)

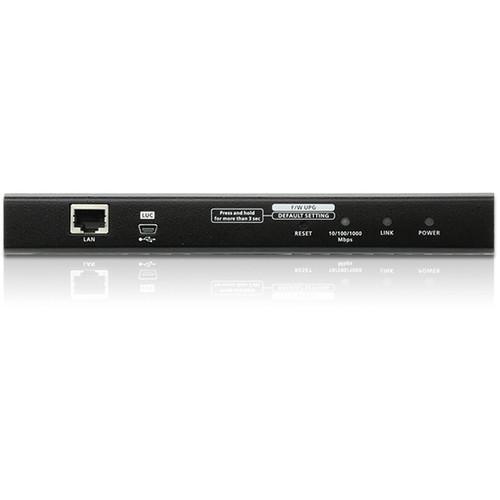

Laptop USB Console (LUC) Port: 1 x USB Mini Type B Female (Black)
PON: 1 x DB-9 Male (Black)
RS-232: 1 x DB-9 Male (Black)
LAN Ports: 1 x RJ-45 Female
Power: 1 x DC Jack | | Switches | Reset: 1 x Semi-recessed Pushbutton | | LEDs | Power: 1 x Orange Link: 1 x Green 10/100/1000 Mb/s: 1 x (10: Orange / 100: Orange+Green / 1000: Green) | | Emulation | Keyboard / Mouse: USB; PS/2 | | Video | Up to 1920 x 1200 @ 60 Hz; DDC2B | | Power Consumption | 5.3 VDC, 7.26 W | | Operating Temperature | Switch: 32 to 122°F / 0 to 50°C Power Adapter: 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 0 to 80% RH, non-condensing | | Housing | Metal | | Dimensions (L x W x H) | 7.87 x 3.2 x 0.98" / 20.00 x 8.14 x 2.50 cm | | Weight | 1.08 lb / 0.49 kg | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 11.5 x 6.9 x 4.0" |
