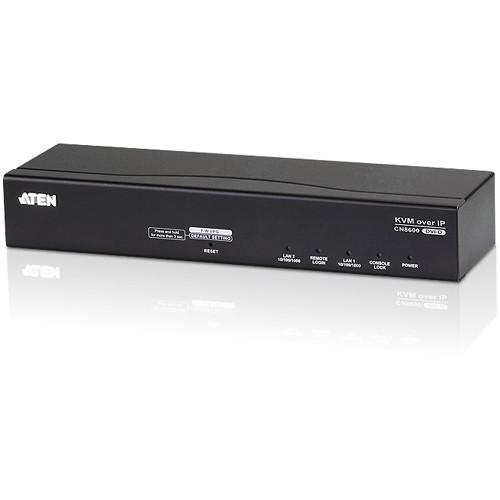

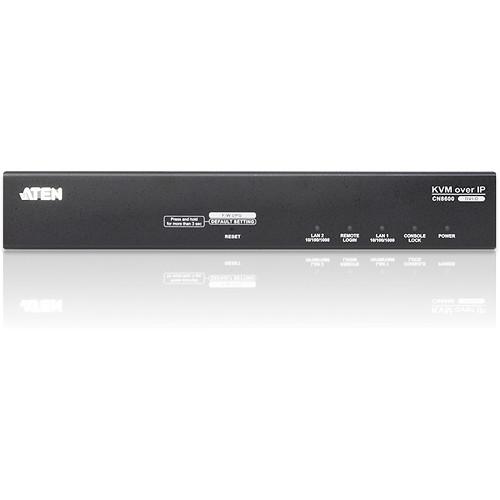

Product description The CN8600 DVI KVM Over IP from Aten allows remote access of digital video, audio, and virtual media through remote control of a computer or workstation. It enables Over IP capability by connecting to compatible switches and consoles. A mini-USB port on the rear panel acts as a Laptop USB Console (LUC) port or a Virtual Media port. When in use as an LUC port, connect a laptop to the mini-USB port and access any computer connected to the switch for easy on-site management. The virtual media function enables you to perform diagnostic testing, file transfers, or apply OS and application updates and patches from a remote console. The CN8600 features dual LAN and dual power functionality for smooth operation, and supports speakers and microphones for local and remote use. Hardware - Provides over-IP capability to DVI KVM switches that do not have built-in over-IP functionality
- Local console provides USB keyboard and mouse support
- A mini-USB port in the rear panel serves as a virtual media USB port, as well as a laptop USB console (LUC) port
- Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
- Dual power supply for power backup
- Supports multiplatform server environments of Windows, Mac, Sun, Linux, and VT100 based serial devices
- Virtual media support 1
Please Note: Some switches do not support the virtual media feature close - Video resolutions of up to 1920 x 1200 @ 60 Hz RB for both local and remote consoles
- Enhanced fps (frames per second) throughput for crisp, responsive video display
- Microphone and speakers are supported on the local and remote console
Management - Allows up to 64 user accounts, with up to 32 users simultaneously sharing control
- Console access right management
- Administrators can terminate running sessions
- Supports event logging and Windows-based log server
- Can record all events that take place and write them to a searchable database
- Critical system events sent by email and SNMP trap, as well as syslog support
- Firmware upgradable through remote access
- Access the CN8600 through a built-in serial viewer or third party software
- Port share mode allows multiple users to simultaneously gain access to a server
- Local/remote share mode provides shared or exclusive console privilege
- Integrates with ALTUSEN CC2000 Management software
- DDNS allows mapping of a dynamic IP address assigned by a DHCP server to a host name
- Export/import user account and configuration settings
- Enable/disable browser operation
Interface - Unified multi-language interface minimizes user training time and increases productivity
- Multi-platform client support of Windows, Mac OX X, Linux, and Sun
- Multi-browser support of IE, Mozilla, Firefox, Safari, Opera, and Netscape
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package requirements
- Full-screen, or sizable and scalable virtual remote desktop
- Magic panel with configurable function for quick launch
Security - Smart Card / CAC Reader support
- External authentication support of RADIUS, LDAP, LDAPS, and MS Active Directory
- Supports SSL 128-bit data encryption and RSA 1024-bit certificates to secure users logging in from browsers
- Users choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4 or random for independent keyboard/mouse, video, and virtual media data encryption
- Supports password protection
Virtual Media - Virtual media enables file applications, OS patching, software installation, and diagnostic testing
- Works with USB-enabled servers at OS and BIOS level
- Supports USB 1.1 and USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives, and ISO images
Virtual Remote Desktop - Video quality and video tolerance can be adjusted to optimize data transfer speed
- Monochrome color depth, threshold and noise settings can be adjusted for compression of the data bandwidth in low bandwidth situations
- Full screen video display or scalable video display
- Message board for communication among remote users
- On-screen keyboard with multi-language support
- Automatically synchronizes the local and remote mouse movements
UPC: 672792004216 In the Box ATEN CN8600 DVI KVM Over IP USB 2.0 Virtual Media Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CN8600 DVI KVM Over IP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

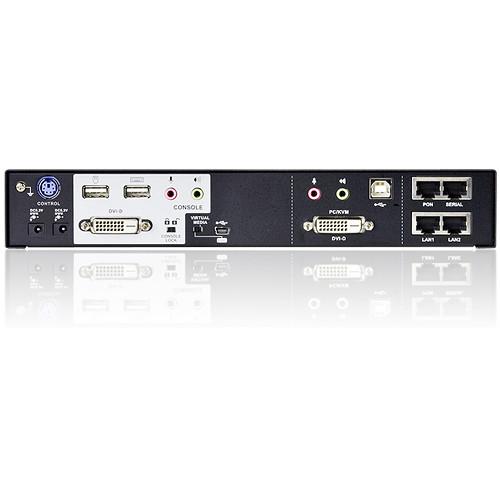

Technical parametersATEN CN8600 Specs | Connectors | Console Keyboard: 1 x USB Type A Female
Console Video: 1 x DVI-D Female
Console Mouse: 1 x USB Type A Female
Console Speaker: 1 x Mini stereo jack Female
Console Microphone: 1 x Mini stereo jack Female
KVM Keyboard, Mouse: 1 x USB Type B Female
KVM Video: 1 x DVI-D Female
KVM Speaker: 1 x Mini stereo jack Female
KVM Microphone: 1 x Mini stereo jack Female
LAN: 2 x RJ-45 Female
Virtual Media/LUC: 1 x USB mini-B Female
Power: 2 x DC jack
PON: 1 x RJ-45 Female
Serial Port: 1 x RJ-45 Female
Control Port: 1 x PS/2 port | | Switches | Reset: 1 x Semi-Recessed pushbutton
USB Function Selection: 1 x Slide switch
Console lock: 1 x Slide switch | | LED Indicators | Power: 1 x (green)
Console Status: 1 x (green)
Link10/100/1000 MB per sec: 1 x (orange), 1 x (orange, green)
Remote Login: 1 x (green) | | Emulation | Keyboard, Mouse: USB | | Video | Local console: 1920 x 1200 @ 60 Hz RB
Remote: 1920 x 1200 @ 60 Hz RB | | Power Consumption | 5.3 VDC, 6 W | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 0 to 80% RH, non-condensing | | Housing | Metal | | Dimensions | 10.2 x 3.0 x 1.7" / 26.0 x 7.6 x 4.2 cm | | Weight | 1.94 lb / 0.88 kg | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 11.3 x 7.0 x 4.1" |
