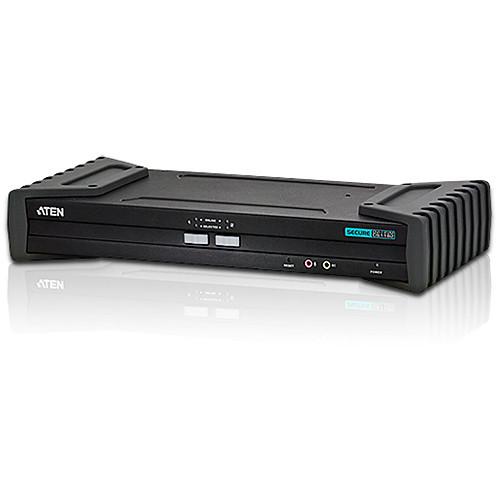

User Manual for ATEN CS1182 2-Port USB DVI Secure KVM Switch Click to enlarge the picture
Contents of the user manual for the ATEN CS1182 2-Port USB DVI Secure
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
 |
User manual for the ATEN CS1182 2-Port USB DVI Secure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

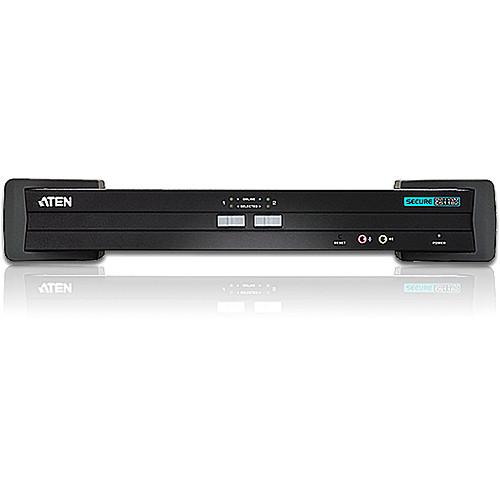

Product description Multi-Monitors: Maximizing Multitasking Read More The ATEN CS1182 2-Port USB DVI Secure KVM Switch offers secure and reliable access for any government/military desktop environment where security is imperative by providing safe switching between computers operating on different secure networks. NIAP-certified according to common criteria's EAL2+ certification, the CS1182 provides 2-port models for secure desktop workstation use. Hardware security includes tamper-evident tape, chassis intrusion detection, and tamper-proof hardware. Software security includes restricted USB connectivity: non HIDs (Human Interface Devices) are ignored when switching, and an isolated channel per port makes it impossible for data to be transferred between secure and unsecure computers. The keyboard buffer is automatically cleared. By combining physical security with controlled USB connectivity, the CS1182 gives you the means to consolidate multiple workstations of various security classification levels with one keyboard, monitor and mouse (KVM) console. Note: Note: 1. The National Information Assurance Partnership (NIAP) is a United States government initiative to meet the security testing needs of IT consumers and manufacturers. It is operated by the National Security Agency (NSA) and the National Institute of Standards and Technology (NIST). 2. The CS1182 additionally satisfies Evaluation Assurance Level 2+ (EAL2+) requirements for Peripheral Sharing Switch (PSS) for Human Interface Devices Protection Profile v2.1. -
- 2-port USB DVI Dual-Link Secure KVM Switch
- Port selection via Pushbutton only (OSD, hotkey methods are not allowed) to enhance security
- One USB console controls 2 secure computers
- NIAP-certified - validated to common criteria EAL2+ security requirements
- Restricted USB connectivity - non HIDs (Human Interface Devices) are ignored when switching
- Isolated channel per port - makes it impossible for data to be transferred between computers
- Tamper-evident tape - provides a visual indication of any attempt to gain access to the switch's internal components
- Chassis intrusion detection - if the cover is removed from the switch, the unit becomes inoperable and the LEDs flash
- Tamper-proof hardware - all integrated circuits are soldered directly to the circuit board to prevent tampering with the components
- Non-reprogrammable ROM - prevents tampering and attempts to reprogram the switch's firmware
- Clears keyboard buffer - keyboard data is automatically cleared after transmission to the switch
- Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Multiplatform support - Windows, Linux, Mac, and Sun
- Video quality - 2560 x 1600 (DVI Dual Link); 1920 x 1200 (DVI Single Link) and 2048 x 1536 (DVI-A)
- Rugged metal enclosure
- Built-in internal power
- Speaker and microphone support
UPC: 672792003028 In the Box ATEN CS1182 2-Port USB DVI Secure KVM Switch Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS1182 2-Port USB DVI Secure KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

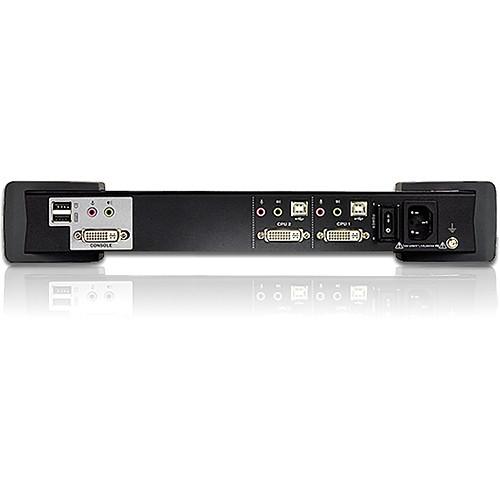

Technical parametersATEN CS1182 Specs | Max Computer Connections | 2 direct | | Port Selection | Pushbutton | | Connectors | Console ports -
Keyboard: 1 x USB Type-A Female (Black)
Video: 1 x DVI-I Dual Link Female (White)
Mouse: 1 x USB Type-A Female (Black)
Audio -Speaker: 2 x Mini stereo jack female (1 x front panel,1 x rear panel, both green)
Microphone: 2 x Mini stereo jack female (1 x front panel,1 x rear panel, both green)
KVM ports - Keyboard/Mouse: 2 x USB Type-B female (White)
Video: 2 x DVI-I dual link female (White)
Audio - Speaker: 2 x Mini Stereo Jack Female (Green)
Microphone: 2 x Mini Stereo Jack Female (Pink)
Power: 1 x 3-prong AC socket
| | Switches | Port Selection: 2 x pushbuttons
Reset: 1 x Semi-recessed pushbutton
| | LEDs | Power: 1x Blue
On Line: 2x Green
Selected: 2x Orange | | Emulation | Keyboard / Mouse : USB | | Video | DVI Dual Link: 2560 x 1600
DVI Single Link: 1920 x 1200
DVI-A: 2048 x 1536
| | Power | I/P rating: 100 to 240 V AC; 50/60 Hz; 0.5A
Power consumption: 120 V AC / 5.1W; 230V / 5.1W | | Environment | Operation Temperature: 32 to 100°F (0 to 40°C)
Storage Temperature: -4 to 125°F (-20 to 60°C)
Humidity: 40 to 80% RH, Non-condensing
| | Material | Metal housing | | Dimensions (WxHxD) | 13.7 x 6.4 x 2.6" / 34.9 x 16.9 x 6.06 cm | | Weight | 4.5 lb. (2.06 kg) | | | | Package Weight | 5.9 lb | | Box Dimensions (LxWxH) | 16.3 x 8.3 x 4.8" |
