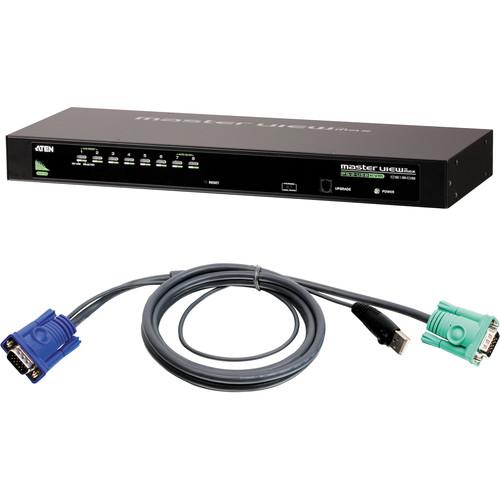

User Manual for ATEN CS1308 8-Port USB PS 2 KVM Switch with 8 USB Cables Click to enlarge the picture
Contents of the user manual for the ATEN CS1308 8-Port USB PS 2
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN CS1308 8-Port USB PS 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The CS1308 8-Port USB PS/2 KVM Switch with 8 USB Cables from ATEN allows you to control 8 computers from a single keyboard, mouse, and monitor, or, utilizing the 2-level cascade setup, up to 64 computers from the single console. The switch supports both USB and PS/2 connections for the console and computers as well as USB keyboards and mice. The switch features Video DynaSync™ technology, ATEN's extended display identification data program, which remembers each monitor's parameters eliminating boot-up display problems and optimizing display resolution when switching between ports. Computers can be selected via the front panel push-buttons, hotkeys, or on-screen display and added or removed from the console without powering down the switch. The two level password security option ensures only authorized users view and control the computers. The CS1308 is firmware upgradeable and does not require software installation. - Controls 8 computers with possible expansion for up to 64 computers through cascading
- Auto PS/2 and USB interface detection that supports PS/2 or USB keyboards and mice
- Video DynaSync™ technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Computer selection via front panel push-buttons, hotkeys and multilingual on-screen display (OSD) menu
- Password secure for up to four profiles
- Auto scan function for monitoring computer operation
- Buzzer on/off via hotkey and OSD
- No software installation required
- Designed for desktop or rack mount (19" system rack, 1U)
UPC: 672792503320 In the Box ATEN CS1308 8-Port USB PS/2 KVM Switch with 8 USB Cables Console Cable Firmware Upgrade Cable Foot Pad Set (4 pads) AC Power Adapter Grounding Wire 2 x 4' USB KVM Cable - SPHD15 to VGA A & USB A 4 x 2L-5202U USB KVM Cable (6') 2 x 2L-5203U USB KVM Cable (10') Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS1308 8-Port USB PS 2 KVM Switch with 8 USB Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS1308KIT Specs | Computer Connections | Direct: 8
Daisy Chain or Cascading: 64 (via cascade) | | CPU Connectors | Keyboard, Mouse, and Monitor: 8 x SPHD-15 Female (Yellow) | | Console Connectors | Keyboard, Mouse, and Monitor: 1 x SPHD-18 Male (Yellow)
Flash ROM Upgrade: 1 x RJ-11 Female (Black) | | Power Connector | DC Jack | | Switches | Port Selection: 8 x Push-button
F/W Upgrade: 1 x Slide | | Emulation | Keyboard: PS/2, USB
Mouse: PS/2, USB | | Video Resolution | 2048 x 1536; DDC2B | | Scan Interval | 1-255 seconds | | Port Selection | OSD, Hotkeys, Push-buttons | | Enclosure | Metal | | Power Consumption | DC 5.3 V; 5 W | | Operating System Support | Windows, MAc, Linux, Unix, Sun, FreeBSD | | Dimensions (L x W x H) | 17.0 x 6.3 x 1.7" (43.2 x 16.0 x 4.3 cm) | | Weight | 4.2 lb (1.9 kg) |
