User Manual for ATEN CS1316 16-Port PS 2 USB KVM Switch Click to enlarge the picture
Contents of the user manual for the ATEN CS1316 16-Port PS 2 USB
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
 |
User manual for the ATEN CS1316 16-Port PS 2 USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

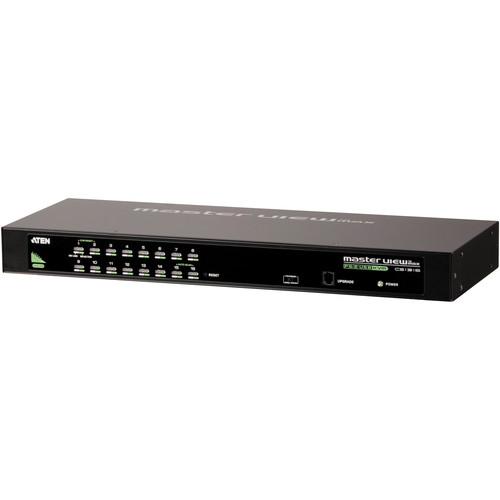

Product description Multi-Monitors: Maximizing Multitasking Read More The Aten CS1316 16-Port PS/2 / USB KVM Switch allows access and control of up to 16 computers from a single keyboard, mouse, and monitor console, or up to 256 computers by cascading up to 16 additional switches. The switch supports both USB and PS/2 connections for the console and computers. - One USB-PS/2 console controls up to 16 computers
- Cascade up to 2 levels - control up to 256 computers
- Dual interface - supports computers with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Video DynaSync eliminates boot-up display problems and optimizes resolution when switching between ports
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Supports resolutions up to 2048 x 1536; DDC2B

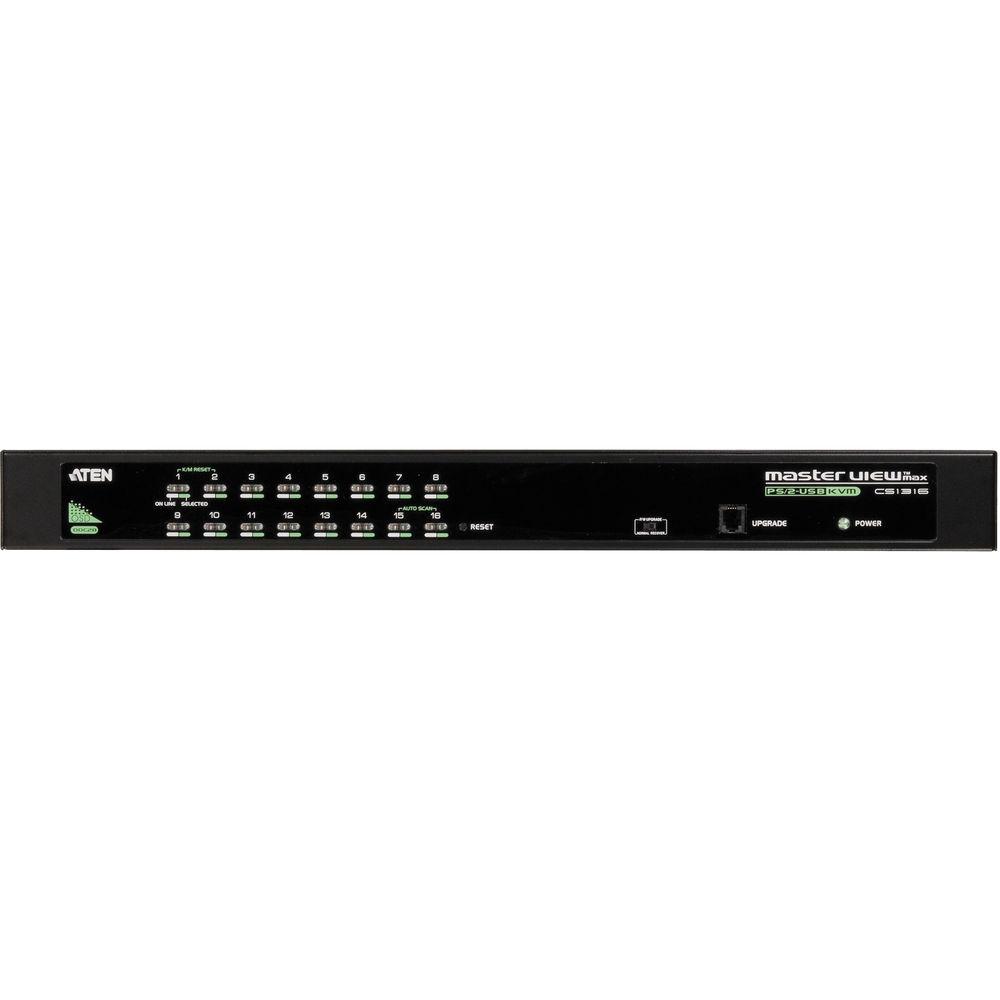

- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto scan feature for monitoring user-selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- No software installation required
- Designed for desktop or rack mount (19" system rack, 1U)
- Note: A separate custom KVM cable is required for each computer connection, sold separately.
UPC: 672792100369 In the Box ATEN CS1316 16-Port PS/2 / USB KVM Switch Console Cable Firmware Upgrade Cable Foot Pad Set (4 Pads) 6' Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS1316 16-Port PS 2 USB KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS1316 Specs | Max Computer Connections | Direct: 16

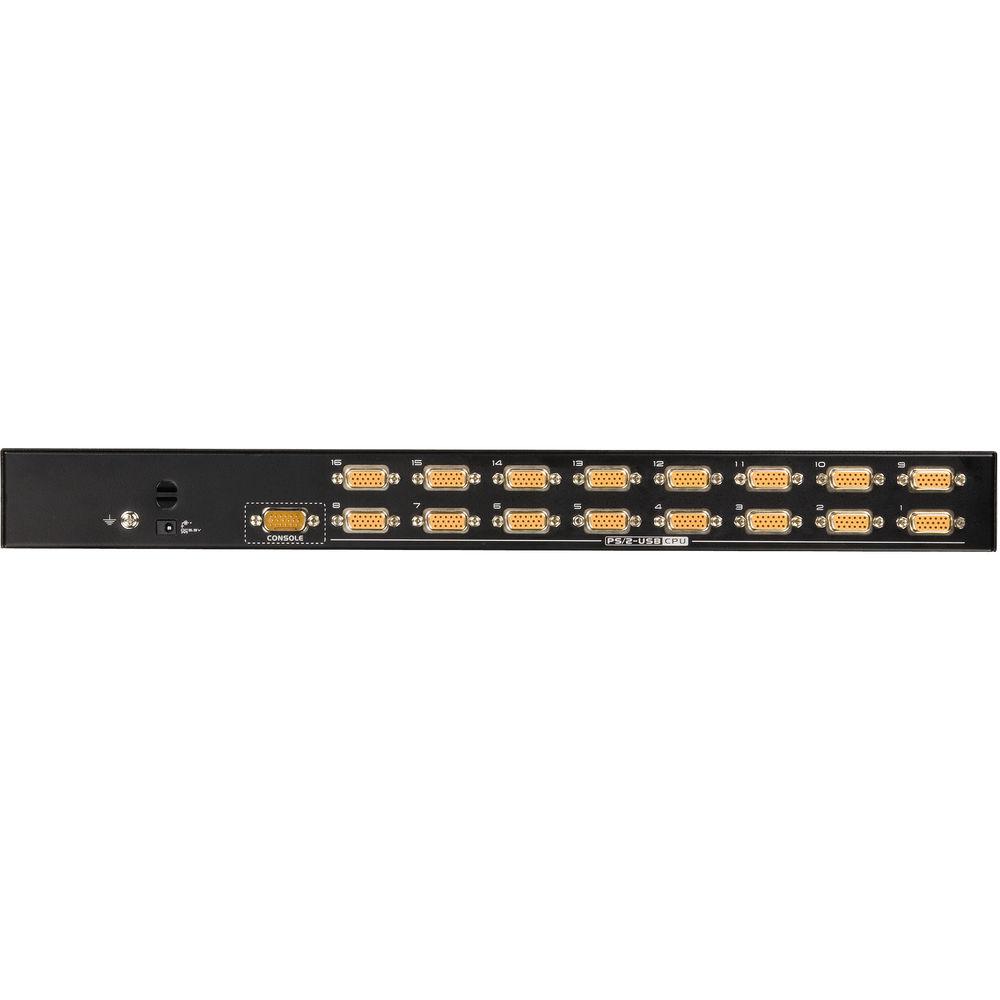

Cascading: 256 | | PC Connectors | Keyboard, mouse, and monitor: 16 x SPHD-15 female | | Console Connectors | Keyboard, mouse, and monitor: 1 x SPHD-18 male
Flash ROM upgrade: 1 x RJ-11 female | | Video Resolution | 2048 x 1536; DDC2B | | Scan Interval | 1 - 255 sec | | Port Selection | OSD, hotkeys, pushbuttons | | Enclosure | Metal | | System Requirements | Windows: 2000 and up
Linux: RedHat 7.1 and up; SuSE 8.2 and up; Mandriva (Mandrake) 9.0 and up
UNIX: AIX 4.3 and up; FreeBSD 4.2 and up; Sun Solaris 8 and up
Novell: Netware 5.0 and up
Mac: OS 9 and up | | Power Consumption | 5.3 VDC; 6.6 W | | Environment | Operation temperature: 32 - 122°F (0 - 50°C) Storage temperature: -4 - 140°F (-20 - 60°C)
Humidity: 0-80% RH non-condensing | | Dimensions (WxHxD) | 17.0 x 6.3 x 1.7" (43.1 x 16.0 x 4.3 cm) | | Weight | 4.2 lbs (1.9 kg) | | | | Package Weight | 6.6 lb | | Box Dimensions (LxWxH) | 21.3 x 9.5 x 4.7" |
