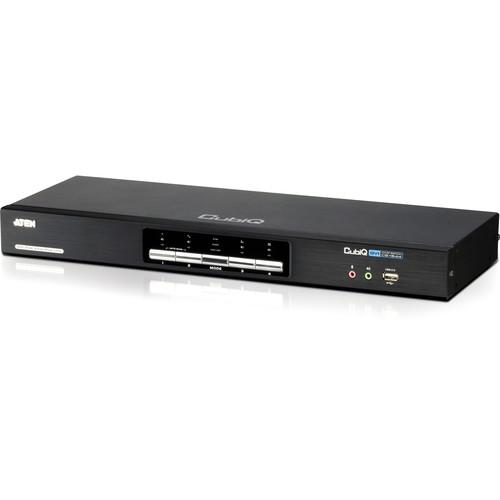

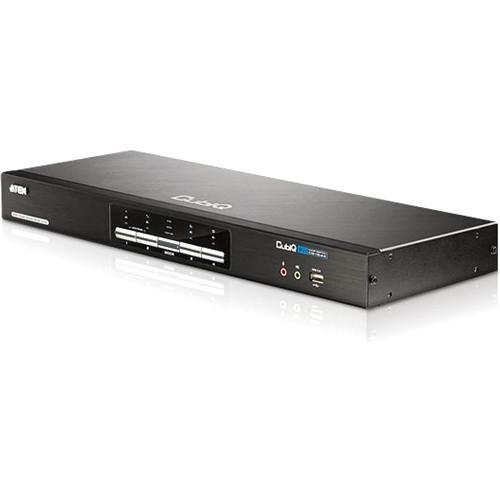

User Manual for ATEN CS1644A 4-Port USB DVI Dual View KVMP Switch Click to enlarge the picture
Contents of the user manual for the ATEN CS1644A 4-Port USB DVI Dual
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
 |
User manual for the ATEN CS1644A 4-Port USB DVI Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The Aten CS1644A 4-Port USB DVI Dual View KVMP Switch is a multi-application device that integrates a 4-port KVM switch with 2-port USB hub and supports quadview functionality with two dual view KVM switches connected. The multi-view capabilities allow two switches to be daisy chained for a dual, triple, or quadview display across multi-monitor installations.
The CS1644A supports advanced nVidia 3D Vision ready 120 Hz 3D displaying, permitting you to manage various 3D visual effects. It also allows you to manipulate all connected computers from a single console to save resources and work space. It enables each computer to access connected peripherals on a one-computer-at-a-time basis, gearing it towards users who need delicate visual effects and multi-tasking on several computers. The CS1644A is also intended for use by graphic designers, banking and financial consultants, gamers, and medical professionals. - One dual-screen USB console controls two/four dual-screen computers and two additional USB devices
- Multi-view display - easily connect two CS1642A or CS1644A units for a second dual-screen setup controlled through a single connection
- Supports up to 2560 x 1600 @ 60 Hz (DVI dual link); 3D displays up to 1920 x 1200 @ 120 Hz (DVI single link)
- Supports widescreen resolutions
- Independent switching of KVM, USB, and audio focus
- DVI digital and analog monitor support - fully compliant with DVI specifications, and HDCP compliant
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, Sun, and FreeBSD
- Sun/Mac keyboard support and emulation Note: Windows keyboard combinations emulate Mac keyboards. Mac keyboards only work with their own computers.
- Video DynaSync eliminates boot-up display problems and optimizes resolution when switching between ports
UPC: 672792004278 In the Box ATEN CS1644A 4-Port USB DVI Dual View KVMP Switch 4 x Custom DVI-D Dual Link Cable Sets 4 x Custom USB DVI-D Dual Link Cables Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS1644A 4-Port USB DVI Dual View KVMP Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

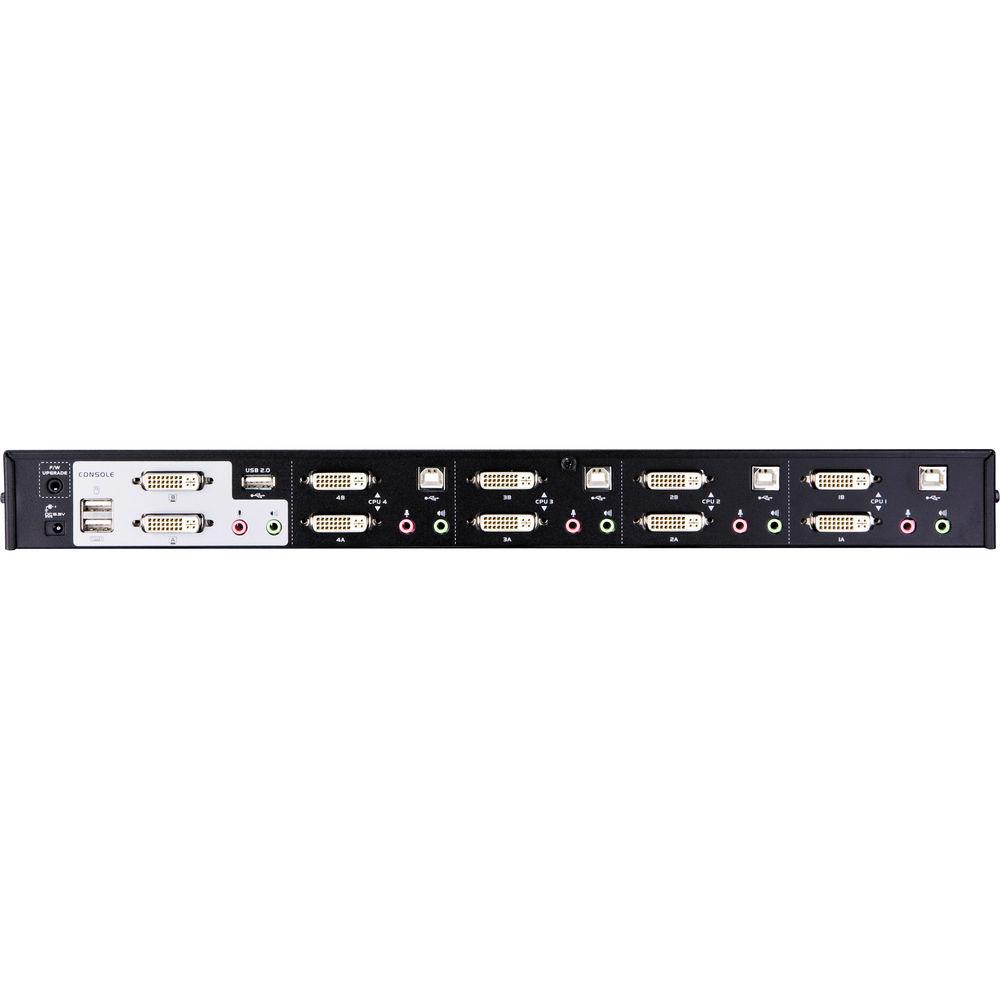

Technical parametersATEN CS1644A Specs | Max Computer Connections | 4 | | Console Ports | Keyboard: 1 x USB Type A female
Video: 2 x DVI-I female
Mouse: 1 x USB Type A female
Speakers: 1 x mini stereo jack female (green)
Microphone: 1 x mini stereo jack female (pink) | | KVM Ports | Keyboard / mouse: 4 x USB Type B female
Video: 4 x DVI-I female
Speaker: 4 x mini stereo jack female (green)
Microphone 4 x mini stereo jack female (pink) | | Additional Connections | DCC port: 1 x RJ-45 female (rear panel)

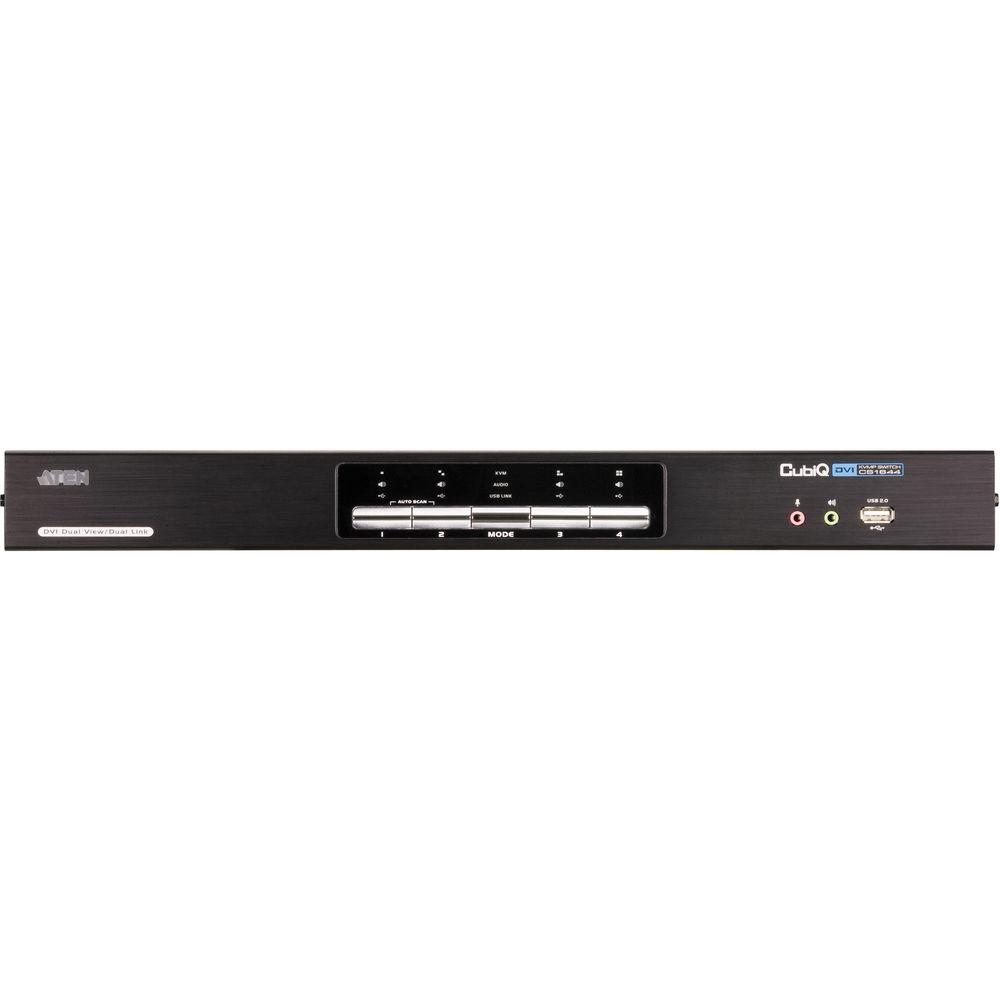

USB 2.0 hub: 2 x USB Type A female (1 front panel, 1 rear panel) | | Switches | Selected: 5 x pushbutton
DCC mode: 1 x slide switch | | Emulation | Keyboard / mouse: USB | | Video Resolution | 2560 x 1600 at 60 Hz; 1920 x 1200 at 120 Hz (3D Display) | | Scan Interval | 1 - 99 sec. (5 sec. default) | | Port Selection | Mouse, pushbuttons, hotkeys | | Enclosure | Plastic and metal | | Environment | Operating temp: 32°F - 122°F (0 - 50°C)
Storage temp: - 4 - 140°F (-20 - 60°C)
Humidity 0-80% RH, non-condensing | | System Requirements | USB 2.0
Windows: 2000 and up
Linux: RedHat 9.0 and up; Fedora Core 4 and up; SuSE 9.0 and up (Linux Kernel 2.6 and up)
UNIX: AIX 4.3 and up; FreeBSD 4.2 and up; Sun Solaris 9 and up
Novell: Netware 6.0 and up
Mac: OS 9 and up
DOS: 6.22 and up | | Power Consumption | 3.5 VDC, 12.2 W | | Dimensions (WxHxD) | 17.0 x 6.1 x 1.7" (43.2 x 15.4 x 4.4 cm) | | Weight | 5.1 lb (2.3 kg) | | | | Package Weight | 12.8 lb | | Box Dimensions (LxWxH) | 22.2 x 9.6 x 8.13" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
