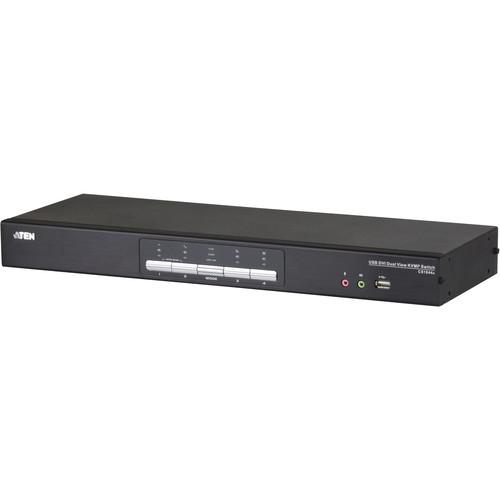

User Manual for ATEN CS1644A 4-Port USB DVI Dual View KVMP Switch Click to enlarge the picture
Contents of the user manual for the ATEN CS1644A 4-Port USB DVI Dual
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN CS1644A 4-Port USB DVI Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The ATEN CS1644A 4-Port USB DVI Dual View KVMP Switch is a multi-application device that integrates a 4-port KVM switch with a 2-port USB hub. This version supports Quad-View functionality with two Dual View KVM switches connected. The CS1644A features multi-view capabilities, allowing two switches to be daisy-chained for a dual-, triple-, or quad-view display across multi-monitor installations. The CS1644A supports advanced nVidia 3D Vision ready 120Hz 3D displays, allowing you to manage various 3D visual effects. It allows you to manipulate all the connected computers from a single console to save resources and workspace. It enables each computer to access connected peripherals on a one-computer-at-a-time basis, making it suitable for users who need delicate visual effects and multitasking on several computers. The CS1644A is well-suited for graphic designers, banking and financial consultants, gamers and medical professionals who demand a high-quality switch that provides color, clarity and functionality. -
- One dual-screen USB console controls two/four dual-screen computers and two additional USB devices
- Multi-View Display - Easily connect two CS1642A/1644A units for a second dual-screen setup controlled through a single connection
- Superior video quality - 2560 x 1600 at 60Hz (DVI Dual link); and 3D displays up to 1920 x 1200 at 120Hz (DVI Single link)
- Supports widescreen resolutions
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support - fully compliant with DVI specifications, and HDCP compliant
- Multiplatform support - Windows 2000/XP/Vista, Linux *, Mac, Sun,and FreeBSD
- Sun/Mac keyboard support and emulation **
- Video DynaSync, exclusive ATEN technology, to eliminate boot-up display problems and optimize resolution when switching between ports
1 Please Note: * Supports Linux Kernel 2.6 and higher. The CS1644A has a built in USB 2.0 hub, so it will not support PCs or OS that do not support USB 2.0.
** PC keyboard combinations emulate Mac keyboards.
** Mac keyboards only work with their own computers.
close UPC: 881317513175 In the Box ATEN CS1644A 4-Port USB DVI Dual View KVMP Switch Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS1644A 4-Port USB DVI Dual View KVMP Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS1644A-DOD Specs | Max Computer Connections | 4 ea | | Port Selection | Mouse, Pushbuttons; Hotkeys | | | | Console Ports | Keyboard: 1 x USB Type A Female (White; rear panel)
Video: 1 x Single Link DVI-D Female (White)
Mouse: 1 x USB Type A Female (Black; rear panel)
Speaker: 2 x Mini Stereo Jack Female (Green)
Microphone: 1 x Mini Stereo Jack Female (Pink)
| | KVM Ports | Keyboard / Mouse: 4 x USB Type B Female (White)
Video: 8 x DVI-I Female (White)
Audio:
Speaker: 4 x Mini Stereo Jack Female (Green)
Microphone: 4 x Mini Stereo Jack Female (Pink) | | Power | 1x DC Jack | | Switches | Selected: 11 x Pushbuttons
Port selection: 4x Pusbuttons
1x Semi-Recessed Pushbutton
Power: 1x Rocker | | LEDs | power: 1x Blue On Line: 4x Green
Selected: 4x Orange
| | Emulation | Keyboard / Mouse: USB | | Video | DVI Dual Link: 2560x1600
DVI Single Link: 1920x1200
DVI-A: 2048x1536
| | I/P Rating | 100-240V AC; 50/60 Hz; 0.5A
| | Power Consumption | 120V / 6.1W; 230V /5.7W | | | | Environment | Operating Temperature: 32 to 104°F 0 to 40°C
Storage Temperature: 14 to 140°F / -10-60°C
Humidity: 0-80% RH, Non-Condensing
| | Material | Metal housing | | Dimensions (WxHxD) | 17.4 x 6.5 x 1.8" / 43.72 x 16.38 x 4.40 cm | | Weight | 5.6 lb / 2.50 kg | | | | Package Weight | 12.65 lb | | Box Dimensions (LxWxH) | 22.1 x 9.8 x 8.5" |
