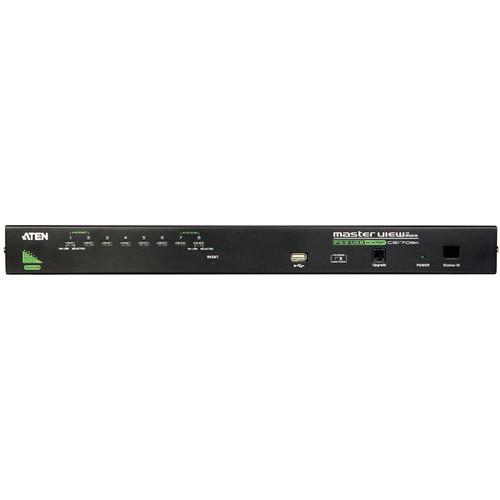

User Manual for ATEN CS1708A 8-Port PS 2-USB KVM Switch Click to enlarge the picture
Contents of the user manual for the ATEN CS1708A 8-Port PS 2-USB KVM
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN CS1708A 8-Port PS 2-USB KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The CS1708A 8-Port PS/2-USB KVM Switch from ATEN is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A single switch can control up to eight computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 256 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis. Its dual interface supports computers and console with PS/2 or USB keyboards and mice. This switch requires no software installation and is suitable for convenient computer selection via front panel pushbuttons, hotkeys, and multilingual On-Screen Display (OSD) menus. - One USB-PS/2 console controls up to 8 computers
- Daisy-chain up to 31 additional units to control up to 256 computers from a single console
- Front accessible USB port allows each computer to access USB peripherals * 1
Please Note: * The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections. close - Dual Interface supports computers and console with PS/2 or USB keyboards and mice
- Multiplatform support for Windows, Linux, Mac, and Sun
- Video DynaSync stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Supports USB keyboards for PC, Mac, and Sun
- Auto PS/2 and USB interface detection
- Enhanced video quality of up to 2048 x 1536; DDC2B
- No software required for installation convenient computer selection via front panel pushbuttons, hotkeys, and multilingual On-Screen Display (OSD) menus
- Auto-senses station's position on daisy-chained installations
- No need for manual dip switch setting
- Front panel led indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security so only authorized users view and control computers
- You can setup to four users and an administrator with separate profiles for each
- Auto Scan feature for monitoring user-selected computers
- With Broadcast mode operation simultaneously performed on all selected computers
- You can add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgrades to all chained KVM switch at the same time via the daisy-chain cable
- Rack mountable in 19" system rack (1U)
UPC: 672792100857 In the Box ATEN CS1708A 8-Port PS/2-USB KVM Switch Standard Rack Mounting Kit Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS1708A 8-Port PS 2-USB KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS1708A Specs | Computer Connections | Direct: 8
Maximum: 256 (via daisy-chain) | | Port Selection | On-Screen Display (OSD)
Hotkeys
Pushbutton switches | | Connectors | Console Port: 1 x SPHD-18 male (yellow)
KVM Ports: 8 x SPHD-15/17 female (yellow)
Daisy-Chain: In: 1 x DB-25 female (black)
Out: 1 x DB-25 male (black)
FW Upgrade: 1 x RJ-11 female (black)
USB Port: 1 x USB type (A) female
Power: 1 x DC jack female (black) | | LEDs | On Line: 8 (orange)
Selected: 8 (green)
Station ID: 1 x 2-digit, 7-segment (orange)
Power: 1 (dark green) | | Switches | Port Selection: 8 x pushbutton
FW Upgr. Rec.: 1 x slide | | Emulation | Keyboard/Mouse: PS/2, and USB | | Video | 2048 x 1536; DDC2B | | Scan Interval | User Specified: 1-255 seconds | | Power Consumption | 5.3 VDC/5 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 0 to 80% (non-condensing) | | Housing | Metal | | Dimensions (L x W x H) | 17.21 x 6.29 x 1.73" (43.72 x 15.99 x 4.40 cm) | | Weight | 5.86 lb (2.66 kg) |
