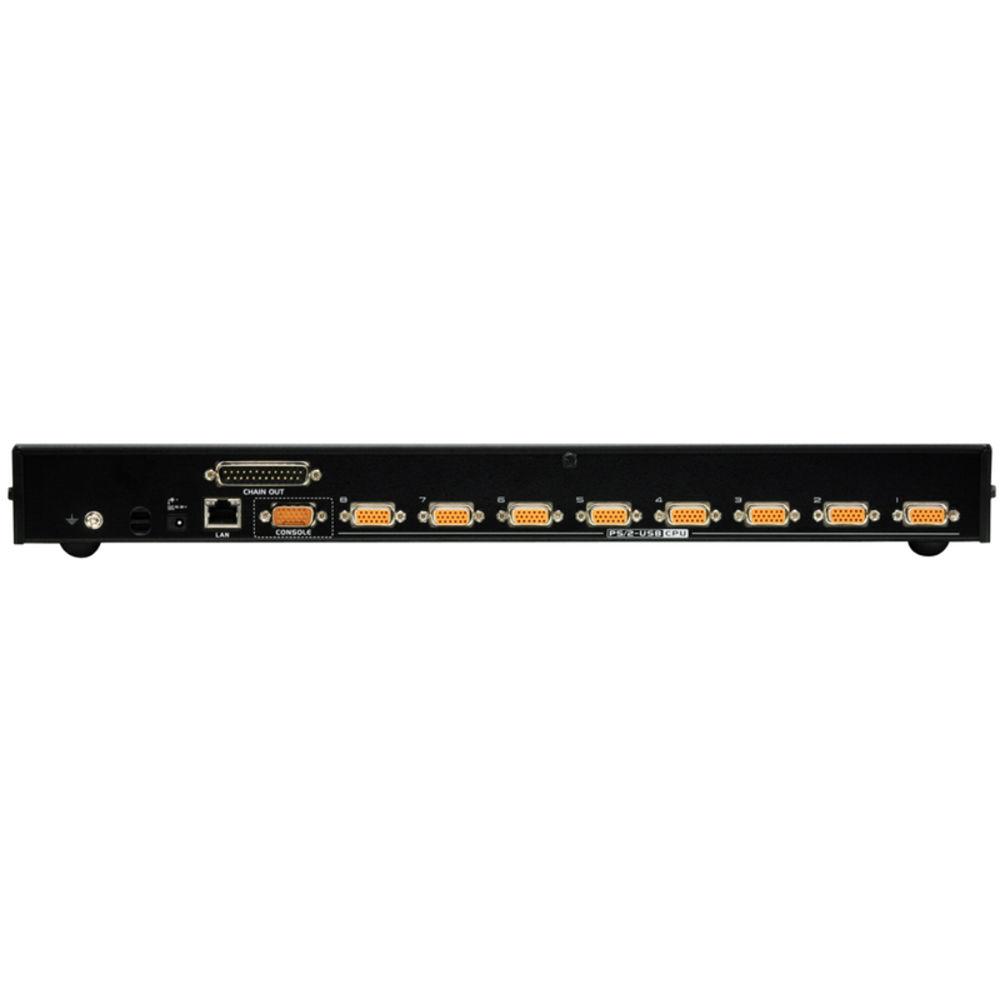

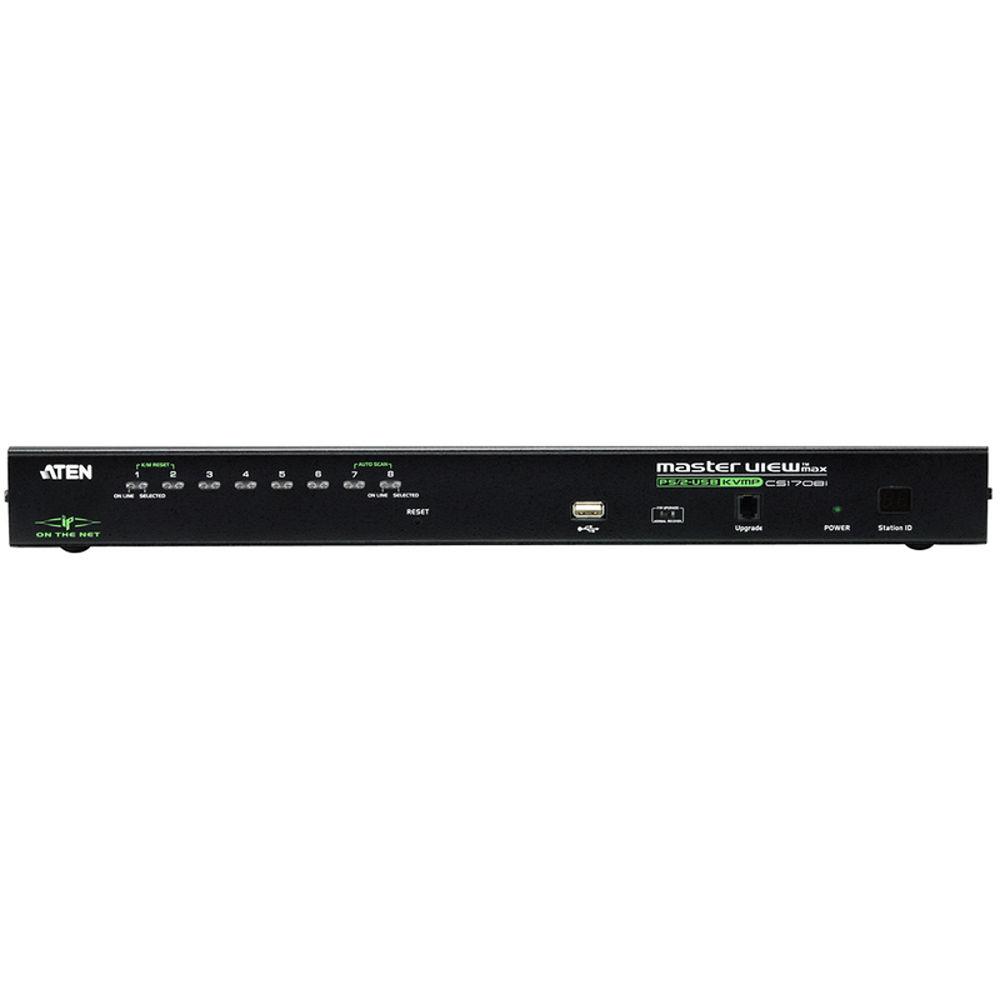

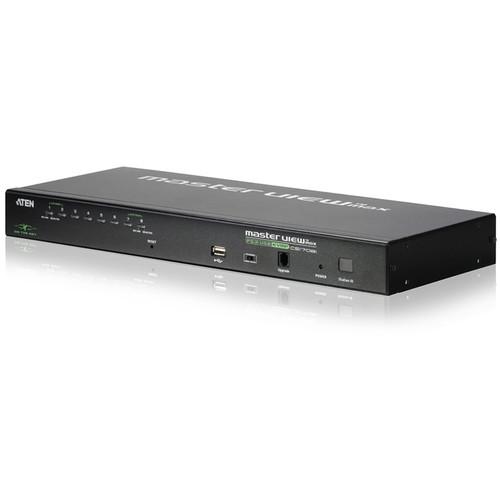

User Manual for ATEN CS1708i-TAA 8-Port PS 2-USB KVM with TAA Compliance Click to enlarge the picture
Contents of the user manual for the ATEN CS1708i-TAA 8-Port PS 2-USB KVM
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
 |
User manual for the ATEN CS1708i-TAA 8-Port PS 2-USB KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The ATEN CS1708i-TAA 8-Port PS/2-USB KVM with TAA Compliance switch is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers. Remote users access the switches over the internet by means of a web browser using TCP/IP for its remote communications protocol. The CS1708i supports up to 32 concurrent user logins for single-bus computer access. A built-in feature that resembles an internet chat program - the Message Board - lets them communicate with each other. The ability to exchange information in real time allows them to cooperatively manage the installation in a smooth and efficient manner. Among the CS1708i's other features, a Panel Array Mode provides the ability to simultaneously monitor up to 8 servers per switch. The Mouse DynaSync feature automatically synchronizes the local and remote mouse pointer movements for perfect alignment regardless of what the mouse acceleration settings on the server are. The CS1708i supports the highest security protocols, such as 128 bit SSL encryption for the browser, and RC4 128 bit encryption for secure keyboard, mouse, and video data transmission. For easier and more efficient user management integration, the CS1708i also supports authentication and authorization via remote servers, such as RADIUS, LDAP, LDAPS, and MS Active Directory. These powerful features not only help administrators manage their server room in an efficient and flexible manner, they provide a cost effective management solution for the SMB sector. UPC: 881317510877 In the Box ATEN CS1708i-TAA 8-Port PS/2-USB KVM with TAA Compliance CS1708i KVM Switch Console Cable Grounding Wire Foot Pad Set (4 pcs) Custom KVM Cable Cable (PS) Custom KVM Cable Cable (USB) Firmware Upgrade Cable Rack Mount Kit Power Adapter Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS1708i-TAA 8-Port PS 2-USB KVM with TAA Compliance in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS1708I-TAA Specs | Max Computer Connections | Direct: 8 ea
Daisy-chain or cascading: 128 (via Daisy Chain) | | Port Selection | OSD; Hotkey; Pushbutton | | Console Connectors | Keyboard, Mouse, and Monitor: 1 x SPHD-18 Male | | CPU Connectors | Keyboard, Mouse, and Monitor: 8 x SPHD-17 Female | | Daisy Chain | 1 x DB-25 Male | | Connectors | Power 1x DC Jack
LAN 1x RJ45 Female
USB 1x USB Type A
| | Switches | Reset 1 x Semi-recessed pushbutton
Port Selection 8 x Pushbutton
F/W Upgrade 1 x Slide
| | LEDs | On Line 8x Orange
Selected 8x Green
Station ID 2x7 Segment - orange
Power On 1x Dark green
10/100 Mbps: 1x Orange/green-at LAN port | | Power | 1 x IEC320 Jack | | Emulation | Keyboard: USB, PS2 Mouse: USB, PS2 | | Video Performance | Local 2048 x 1536; DDC2B
Remote 1600 x 1200 @ 60Hz / 24 bit color depth | | Scan Interval | 1-255 sec. | | Power | Power Consumption: 5.3 VDC; 9.5 W: 34 BTU/h Power Adapter: OAD8-0605-24EG | | Environment | Humidity: 0~80% RH, Non-condensing
Operation Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
| | Material | Metal housing | | Dimensions (WxHxD) | 17.0x 6.3x 1.7" / 43.1 x 15.4 x 4.3 cm | | Weight | 6.2 lb / 2.8 kg |
