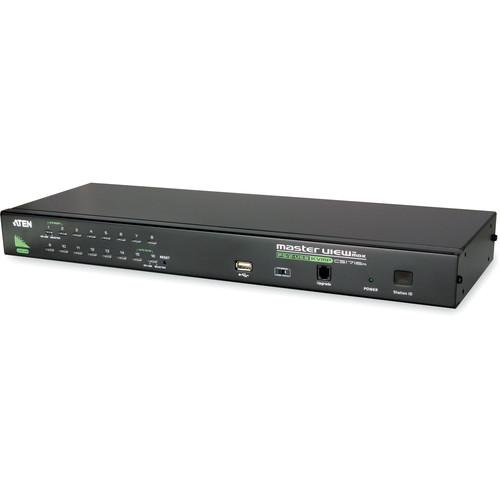

Product description Multi-Monitors: Maximizing Multitasking Read More xvyzcbvccsbuuuawft The Aten CS1716A 16-Port PS/2 - USB KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB keyboard, mouse, and monitor console. A single CS1716A can control up to 16 computers; as many as 31 additional switches can be daisy-chained to each other, so that up to 512 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis. - One USB or PS/2 console controls up to 16 computers
- Daisy-chain up to 31 additional units to control up to 512 computers from a single console
- Front accessible USB port allows each computer to access USB peripherals
Note: The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections. - Dual interface - supports computers and console with PS/2 or USB keyboards and mice
- Multiplatform support - Windows, Linux, Mac, and Sun
- Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Supports USB keyboards for Windows, Mac, and Sun
- Auto PS/2 and USB interface detection
- USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Supports resolutions up to 2048 x 1536; DDC2B

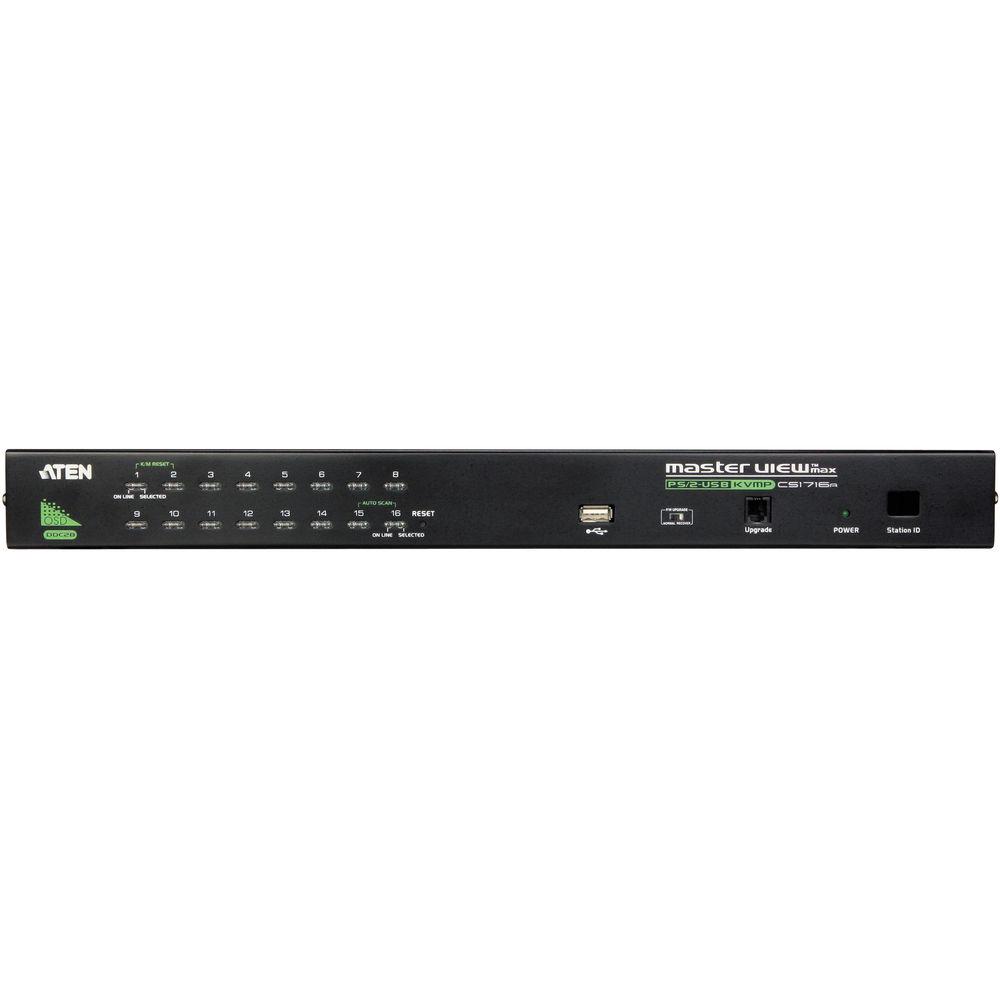

- No software required - convenient computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations - no need for manual dip switch setting; front panel LED indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security - only authorized users view and control computers; up to four users and an administrator with separate profiles for each
- Auto scan feature for monitoring user-selected computers
- Broadcast mode - operation simultaneously performed on all selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgrades to all the chained KVM switch at the same time via the daisy-chain cable
- Rack mountable in 19" system rack (1U)
UPC: 672792100864 In the Box ATEN CS1716A 16-Port PS/2 - USB KVM Switch 2 x Custom KVM Cable Sets Console Cable Firmware Upgrade Cable Foot Pad Set (4 Pcs) 6' Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS1716A 16-Port PS 2 - USB KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS1716A Specs | Max Computer Connections | Direct: 16

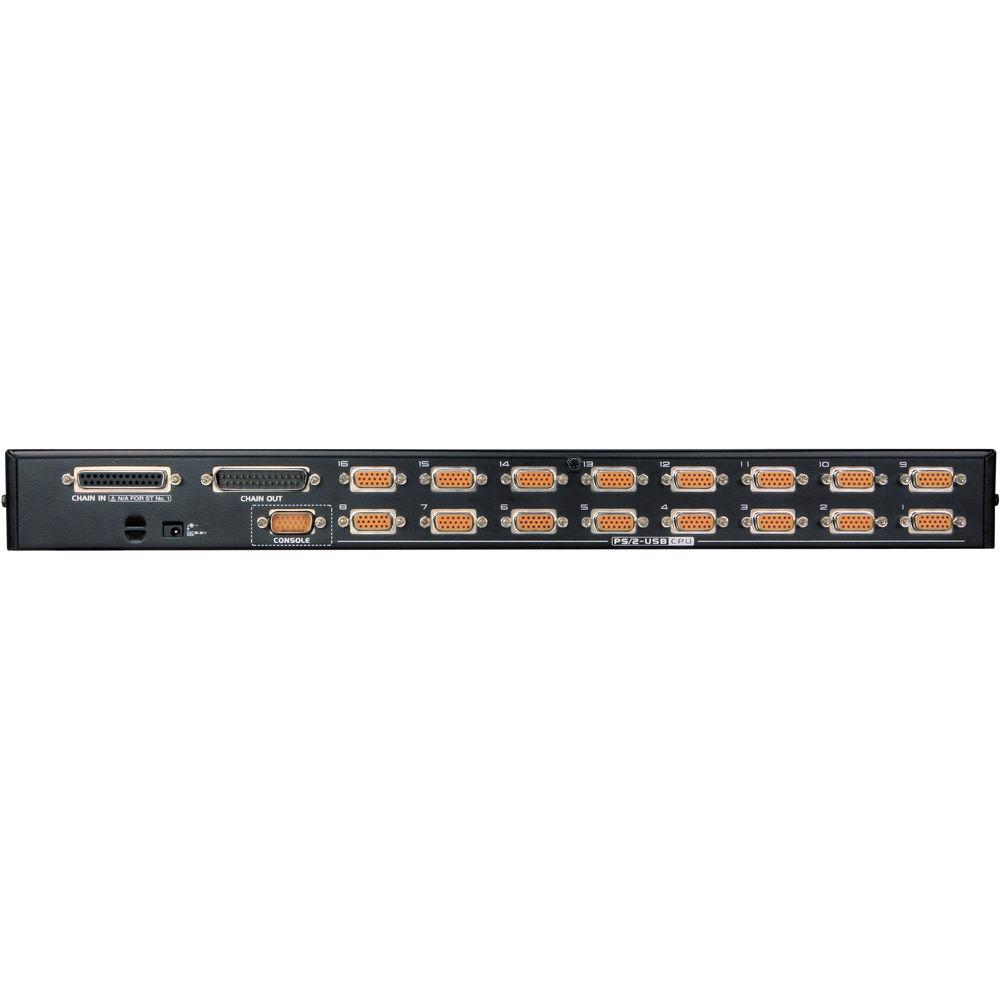

Daisy chain: 512 | | PC Connectors | Keyboard, mouse, and monitor: 16 x SPHD-15 female | | Console Connectors | Keyboard, mouse, and monitor: 1 x SPHD-18 male
Flash ROM upgrade: 1 x RJ-11 female
Daisy chain: 1 x DB-25 female in, 1 x DB-25 female out | | USB Specification | 1.1 | | Switches | Firmware upgrade: 1 x slide
Port selection: 16 x pushbutton | | LEDs | On line: 16 x orange
Selected: 16 x green
Station ID: 2 x 7-segement orange
Power on: 1 x dark green | | Emulation | Keyboard, mouse: PS/2, USB | | Video Resolution | 2048 x 1536 ; DDC2B | | Scan Interval | User specified: 1 - 255 sec | | Port Selection | On-screen display (OSD), hotkeys, pushbutton | | Enclosure | Metal | | System Requirements | Windows: 2000 and up
Linux: RedHat 7.1 and up; SuSE 8.2 and up; Mandriva (Mandrake) 9.0 and up
UNIX: AIX 4.3 and up; FreeBSD 4.2 and up; Sun Solaris 8 and up
Novell: Netware 5.0 and up
Mac: OS 9 and up | | Environment | Humidity: 0 - 80% RH, non-condensing
Operation temperature: 32 - 122°F (0 - 50°C)
Storage temperature: -4 - 140°F (-20 - 60°C) | | Power Consumption | 5 VDC @ 6.5 W; 1.6 A max | | Dimensions (WxHxD) | 17.0 x 1.7 x 6.3" (43.2 x 4.3 x 16.0 cm) | | Weight | 6.3 lbs (2.9 kg) |
