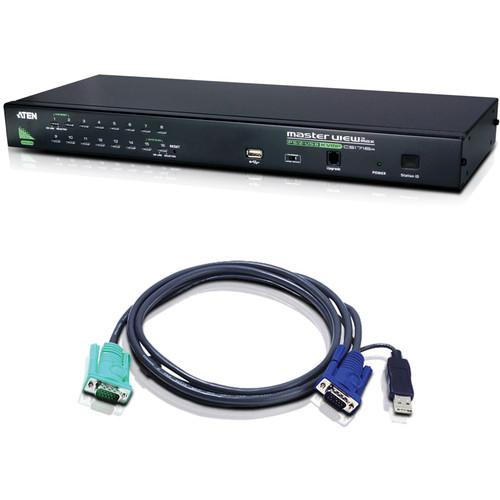

Product description Multi-Monitors: Maximizing Multitasking Read More The Aten CS1716AUK 16-Port PS/2-USB KVMP Switch is a control unit that allows access to multiple computers from a single PS/2 or USB keyboard, mouse, and monitor console. A single CS1716AUK can control up to 16 computers, and as many as 31 additional switches can be daisy-chained to each other, so that up to 256 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis. - A single console controls up to 16 computers
- Daisy-chain up to 31 additional units - control up to 256 computers from a single console
- Front accessible USB port allows each computer to access USB peripherals Note: The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
- Dual interface - supports computers and console with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Display Emulation Technology - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Auto PS/2 and USB interface detection
- USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Video resolution up to 2048 x 1536; DDC2B
- No software required - convenient computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations - no need for manual dip switch setting; front panel led indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security - only authorized users view and control computers; up to four users and an administrator with separate profiles for each
- Auto scan feature for monitoring user-selected computers
- Broadcast mode - operations simultaneously performed on all selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
- Rack mountable in 19" system rack (1U)
UPC: 672792503429 In the Box ATEN CS1716AUK 16-Port PS/2-USB KVMP Switch Bundle 8 x 2L-5202U USB KVM Cable (6') ysvutterrqybuv 4 x 2L-5203U USB KVM Cable (10') 4 x 4' USB KVM Cable Console Cable Firmware Upgrade Cable Standard Rack Mounting Kit Grounding Wire Foot Pad Set (4 Pcs) Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS1716AUK 16-Port PS 2-USB KVMP Switch Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS1716AUKIT Specs | Max Computer Connections | Direct: 16

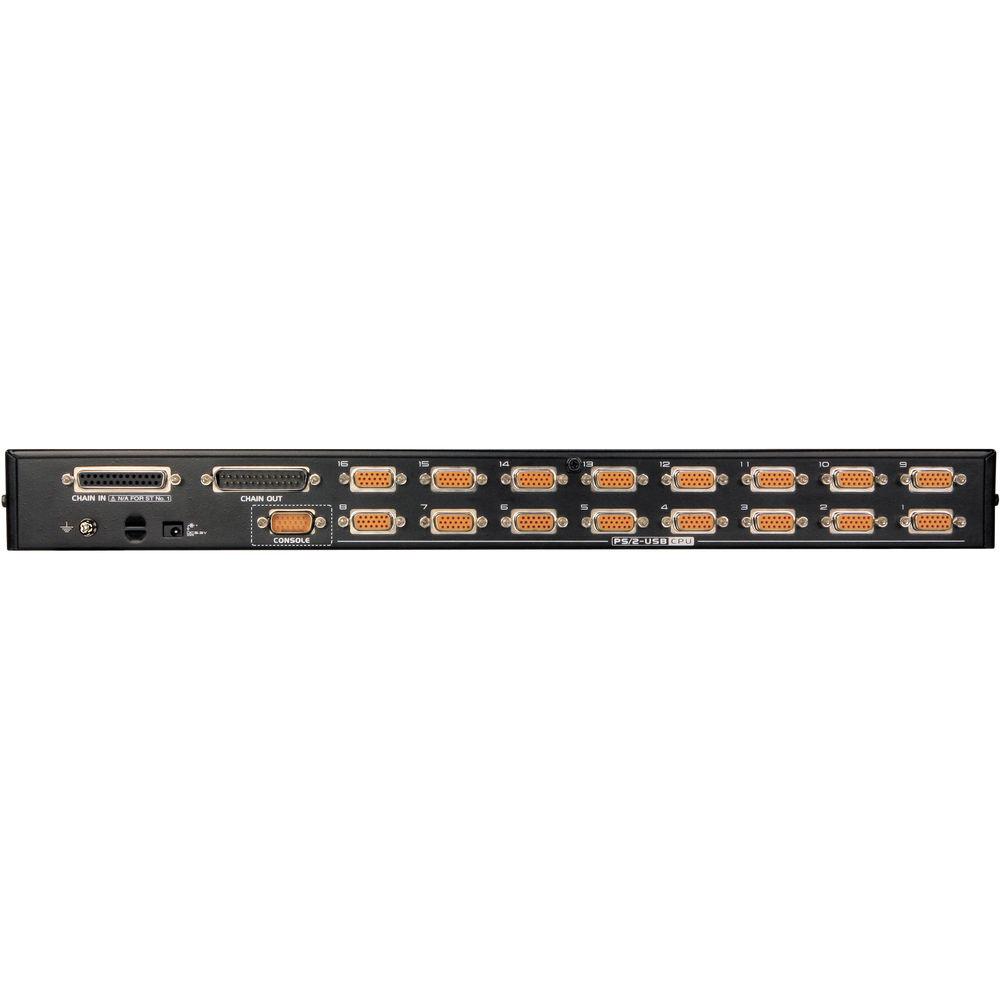

Daisy chain: 512 | | PC Connectors | Keyboard, mouse, and monitor: 16 x SPHD-17 female | | Console Connectors | Keyboard, mouse, and monitor: 1 x SPHD-18 male
Flash ROM upgrade: 1 x RJ-11 female | | Video Resolution | Local: 2048 x 1536; DDC2B | | Scan Interval | 1 - 255 sec | | Port Selection | OSD, hotkey, pushbutton | | Switches | Firmware upgrade: 1 x slide
Port selection: 16 x pushbutton | | LEDs | On line: 16 x orange
Selected: 16 x green
Station ID: 1 x 2-digit, 7-segment (orange)
Power: 1 x dark green | | Emulation | Keyboard/mouse: PS/2 / USB | | Enclosure | Metal | | System Requirements | Windows: 2000 and up
Linux: RedHat 7.1 and up; Fedora Core 5 and up; SuSE 9.0 and up; Mandriva (Mandrake) 9.0 and up
UNIX: AIX 4.3 and up; FreeBSD 3.51 and up; Sun Solaris 8 and up
Novell: Netware 5.0 and up
Mac: OS 9 and up
DOS: 6.2 and up | | Power Consumption | 5.3 VDC; 6.6W | | Dimensions (WxHxD) | 17.1 x 6.3 x 1.7" (43.3 x 16.0 x 4.4 cm) | | Weight | 6.4 lbs (2.9 kg) |
