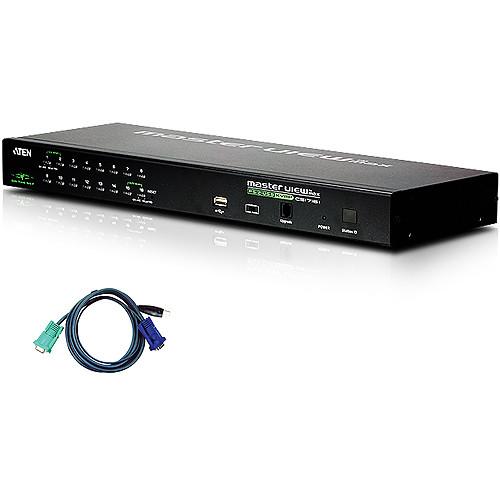

User Manual for ATEN CS1716I 16-Port PS 2-USB KVM Over IP Switch with Kit Click to enlarge the picture
Contents of the user manual for the ATEN CS1716I 16-Port PS 2-USB KVM
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN CS1716I 16-Port PS 2-USB KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The Aten CS1716I 16-Port PS/2-USB KVM Over IP Switch is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers. Remote users access the switches over the Internet by means of a web browser using TCP/IP for its remote communications protocol. The CS1716I supports up to 32 concurrent user logins for single-bus computer access. A built-in message board feature lets you communicate with each other. The ability to exchange information in real time allows you to cooperatively manage the installation in a smooth and efficient manner.
Its panel array mode provides the ability to simultaneously monitor up to 16 servers per switch, while the mouse DynaSync feature automatically synchronizes the local and remote mouse pointer movements for perfect alignment regardless of what the mouse acceleration settings on the server are. The CS1716I supports 128 bit SSL encryption for the browser and RC4 128 bit encryption for secure keyboard, mouse, and video data transmission. The CS1716I also supports authentication and authorization via remote servers, such as RADIUS, LDAP, LDAPS, and MS Active Directory. - Convenient computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD) menus
- Up to 32 concurrent logins
- Multilanguage web UI support featuring a tree-structured local and remote OSD
- Adjustable video quality for flexible adaptation to diverse network environments
- Auto scan feature for monitoring user-selected computers
- Broadcast mode; operations simultaneously performed on all selected computers (software installation, system-wide shutdown, etc.)
- Backup and restore configuration and user account settings
- Enable/disable browser access
- Browser-based and AP GUIs, and a menu-driven OSD for the local console
- Multiplatform client support (windows, Mac OS X, Linux, Sun)
- Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
- Port names automatically reconfigured when station sequence is changed
- Panel array mode enables you to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel
- Windows client and Java client software support; Java client works with all operating systems
- Secure keyboard/mouse/video transmission via RC4 128 bit encryption
- Supports SSL 128 bit data encryption and RSA 1024 bit certificates for secure user logins from a browser
- Two level password security - up to 64 user accounts with separate profiles for each
- External (remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory
- Support for IP/MAC Filter
- Local and remote access logged and authenticated
- Resizable remote desktop window
- Message board allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
- On-screen keyboard with multilanguage support
- 16-port remote access KVM switch - monitor and control up to 16 computers from a single KVM console
- Daisy chain up to 15 compatible additional units - control up to 256 computers from a single console
- Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
- Hot pluggable - add or remove computers without having to power down the switch
- Multiplatform support - Windows, Linux, Mac, and Sun
- Front panel USB hub allows connected computers to access USB peripherals
- Dual interface - supports PS/2 or USB keyboard and mouse computer connections with automatic interface detection
- USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Supports USB keyboards for Windows, Mac and Sun
- Superior video quality - up to 2048 x 1536; DDC2B for the local console; up to 1600 x 1200 @ 60Hz / 24 bit color depth for remote sessions
- Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Rack mountable in a 19" (1U) system rack
UPC: 881317509086 In the Box ATEN CS1716I 16-Port PS/2-USB KVM Over IP Switch with Kit 8 x 2L-5202U USB KVM Cable (6') Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS1716I 16-Port PS 2-USB KVM Over IP Switch with Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS1716I Specs | Max Computer Connections | Direct: 16
Daisy chain: 256 | | PC Connectors | Keyboard, mouse, and monitor: 16 x SPHD-17 female | | Console Connectors | Keyboard, mouse, and monitor: 1 x SPHD-18 male | | Video Resolution | Local: 2048 x 1536; DDC2B
Remote: 1600 x 1200 @ 60 Hz, 24 bit color depth | | Scan Interval | 1 - 255 sec | | Port Selection | OSD, hotkey, pushbutton | | Enclosure | Metal | | System Requirements | Windows: 2000 and up
Linux: RedHat 7.1 and up; Fedora Core 5 and up; SuSE 9.0 and up; Mandriva (Mandrake) 9.0 and up
UNIX: AIX 4.3 and up; FreeBSD 3.51 and up; Sun Solaris 8 and up
Novell: Netware 5.0 and up
Mac: OS 9 and up
DOS: 6.2 and up | | Power Consumption | 5.3 VDC; 11 W | | Country of Origin | Made in China | | Dimensions (WxHxD) | 17.1 x 6.3 x 1.7" (43.3 x 16.0 x 4.4 cm) | | Weight | 6.6 lbs (3.0 kg) | | | | Package Weight | 16.05 lb | | Box Dimensions (LxWxH) | 22.3 x 10.4 x 9.8" |
