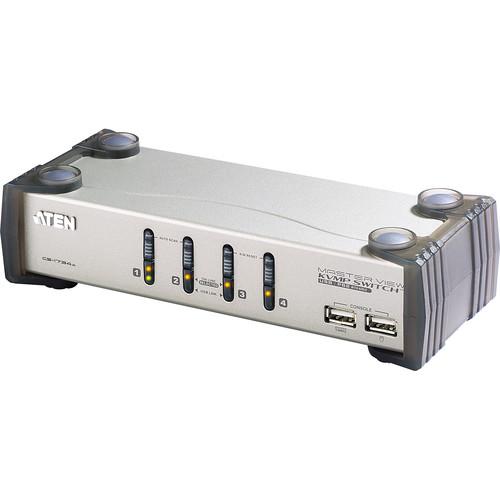

User Manual for ATEN CS1734A 4-Port USB KVMP Switch Click to enlarge the picture
Contents of the user manual for the ATEN CS1734A 4-Port USB KVMP Switch
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN CS1734A 4-Port USB KVMP Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More Provided by third party: The ATEN CS1734A 4-Port USB KVMP Switch has a built-in USB on each of the front and rear panels, and audio signal connectors on the rear. It allows users to control the computer and peripheral devices via a signal console easily. -
- One USB console controls 4 computers and two additional USB devices 2 port USB hub built in
- Dual interface supports computers with PS/2 or USB keyboards and mice
- Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
- With speaker and microphone support
- Bi-directional switching and flexible interoperability; switch permits independent PC, peripheral, and audio to function regardless of KVM switch focus
- Auto PS/2 and USB interface detection
- Buzzer On/Off via hotkey
- Keyboard and mouse emulation for error-free booting
- Computer selection via front panel pushbuttons and hotkeys
- Video quality up to 2048 x 1536; DDC2B
- Firmware upgradeable
- OS Support: Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers
UPC: 672792001765 In the Box ATEN CS1734A 4-Port USB KVMP Switch Console Adapter Cable (20" / 50 cm) 2 x KVM Cable (4' / 1.2 m) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS1734A 4-Port USB KVMP Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS1734A Specs | Computer Connections | Direct: 4 | | Port Selection | Hotkey, pushbutton
USB port/Audio port selection: Hotkey | | Connectors | Console Ports -
Keyboard: 1x USB type A female (white)
Video 1 x HDB-15 female (black)
Mouse: 1x USB type A female (white)
Speaker: 1x mini stereo jack female (green)
Microphone: 1x mini stereo jack female (pink)
KVM Ports -
Keyboard/Video/Mouse: 4x SPHD-15 female (yellow)
Speaker: 4x mini stereo jack female (green)
Microphone: 4x mini stereo jack female (pink)
USB Hub: 2x USB type A female (black)
F/W Upgrade: 1x RJ11 female (black)
Power: 1 x DC Jack
| | Switches | Port: 4x pushbutton
F/W Upgrade: 1x slide | | LEDs | On Line/Selected: 4x orange
USB Link: 4x green | | Emulation | Keyboard/Mouse: USB
| | Video Resolution | 2048 x 1536; DDC2B | | Scan Interval | 1 to 99 Seconds | | Power Consumption | 5 V DC; 1.25 W | | Environment | Operation Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 0 to 80% RH, Non-condensing
| | Material | Metal housing | | Dimensions (WxHxD) | 8.1 x 3.5 x 2.1" / 21.00 x 8.80 x 5.55 cm | | Weight | 1.6 lb / 0.70 kg | | | | Package Weight | 4.55 lb | | Box Dimensions (LxWxH) | 11.2 x 6.9 x 4.1" |
