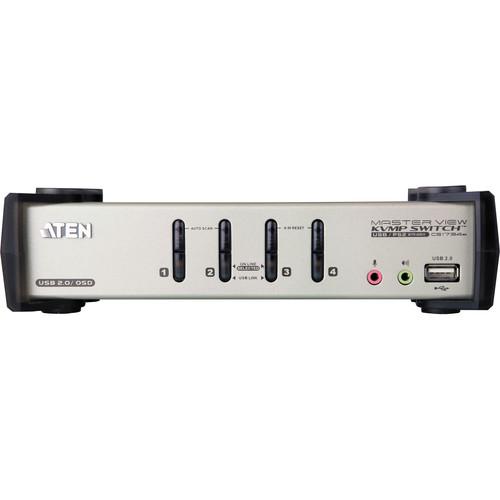

User Manual for ATEN CS1734B 4-Port USB 2.0 KVMP Switch with OSD Click to enlarge the picture
Contents of the user manual for the ATEN CS1734B 4-Port USB 2.0 KVMP
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN CS1734B 4-Port USB 2.0 KVMP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The Aten CS1734B 4-Port USB 2.0 KVMP Switch with OSD is 4-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access four computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: pushbuttons, hotkeys, OSD, and mouse. - 4-port KVM switch with USB 2.0 and 2.1 surround sound audio support
- 2-port USB 2.0 hub built in; USB 2.0 compliant
- One console controls four computers and two additional USB devices
- Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
- Audio enabled - 2.1 surround sound system compatible
- Console audio ports on front panel for easy access
- Independent switching of KVM, USB, and audio focus
- Supports up to 2048 x 1536; DDC2B; supports widescreen resolutions
- Computer selection via front panel pushbuttons, multilingual OSD (on screen display), hotkeys, and mouse
- Multiplatform support - Windows, Mac, and Sun
- Console mouse port emulation/bypass feature supports full mouse driver and multifunction mice
- Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Sun/Mac keyboard support and emulation
Note: Windows keyboard combinations emulate Sun/Mac keyboards. Sun/Mac keyboards only work with their own computers. - Auto scan mode for monitoring all computers
- LED display for easy status monitoring
UPC: 672792112256 In the Box ATEN CS1734B 4-Port USB 2.0 KVMP Switch with OSD 2 x 2L-5302U USB KVM Cable with Audio Plugs (6') 2 x 4' USB KVM Cable 2 x OSD/Hotkey Stickers Rackmount Kit Firmware Upgrade Cable Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS1734B 4-Port USB 2.0 KVMP Switch with OSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS1734B Specs | Max Computer Connections | 4 | | KVM Port Connectors | Keyboard, video, mouse: 4 x SPHD-15 female
Speaker: 4 x mini stereo jack female (green)
Microphone: 4 x mini stereo jack female (pink) | | Console Connectors | Keyboard: 1 x USB Type A female
Video: 1 x HDB-15 female
Mouse: 1 x USB Type A female
Speaker: 2 x mini stereo jack female (green)
Microphone: 2 x mini stereo jack female (pink) | | Switches | 4 x pushbutton | | LEDs | On line/selected: 4 x orange
USB link: 4 x green | | Video Resolution | 2048 x 1536 @ 60 Hz; DDC2B | | Scan Interval | 1 - 255 sec (default: 5 sec) | | Port Selection | OSD; hotkeys; pushbuttons; mouse | | Enclosure | Metal | | System Requirements | USB 2.0
Windows: 2000 and up
Linux: RedHat 7.1 and up, Fedora Core 2 and up; SuSE 9.0 and up; Mandriva (Mandrake) 9.0 and up (supports Linux Kernel 2.6 and up)
UNIX: AIX 4.3 and up; FreeBSD 4.2 and up; Sun Solaris 9 and up
Novell: Netware 5.0 and up
Mac: OS 9.0 and up
DOS: 6.22 and up | | Power Consumption | 5.3 VDC/3.4 W max | | Environment | Operating temperature: 32 - 122°F (0 - 50°C)
Storage temperature: -4 - 140°F (-20 - 60°C)
Humidity: 0 - 80% RH, non-condensing | | Dimensions (L x W x H) | 8.3 x 3.4 x 2.2" (21.1 x 8.6 x 5.6 cm) | | Weight | 1.7 lbs (0.8 kg) | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 11.3 x 7.0 x 4.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
