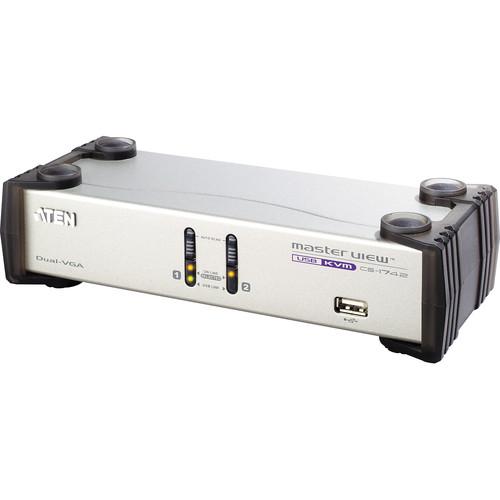

Product description Multi-Monitors: Maximizing Multitasking Read More The Aten CS1742 2-Port USB Dual-View KVMP Switch integrates functions of video signal dual output and USB KVM switches. It allows a computer with dual-screen support to pair with two VGA/SVGA/Multisync displays via a USB keyboard and mouse. Furthermore, the CS1742 provides 2 USB ports, allowing each server to share any USB peripheral device that is connected to this hub. - Allows one USB keyboard, USB mouse, speakers, microphone, and two displays to control two dual display computers
- Multiplatform support: compatible with all operation platform computers (Windows, Linux, and most others), Mac, and Sun
- Speaker and microphone support
- Bi-directional switching and flexible interoperability - switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
- Keyboard and mouse emulation for error free booting

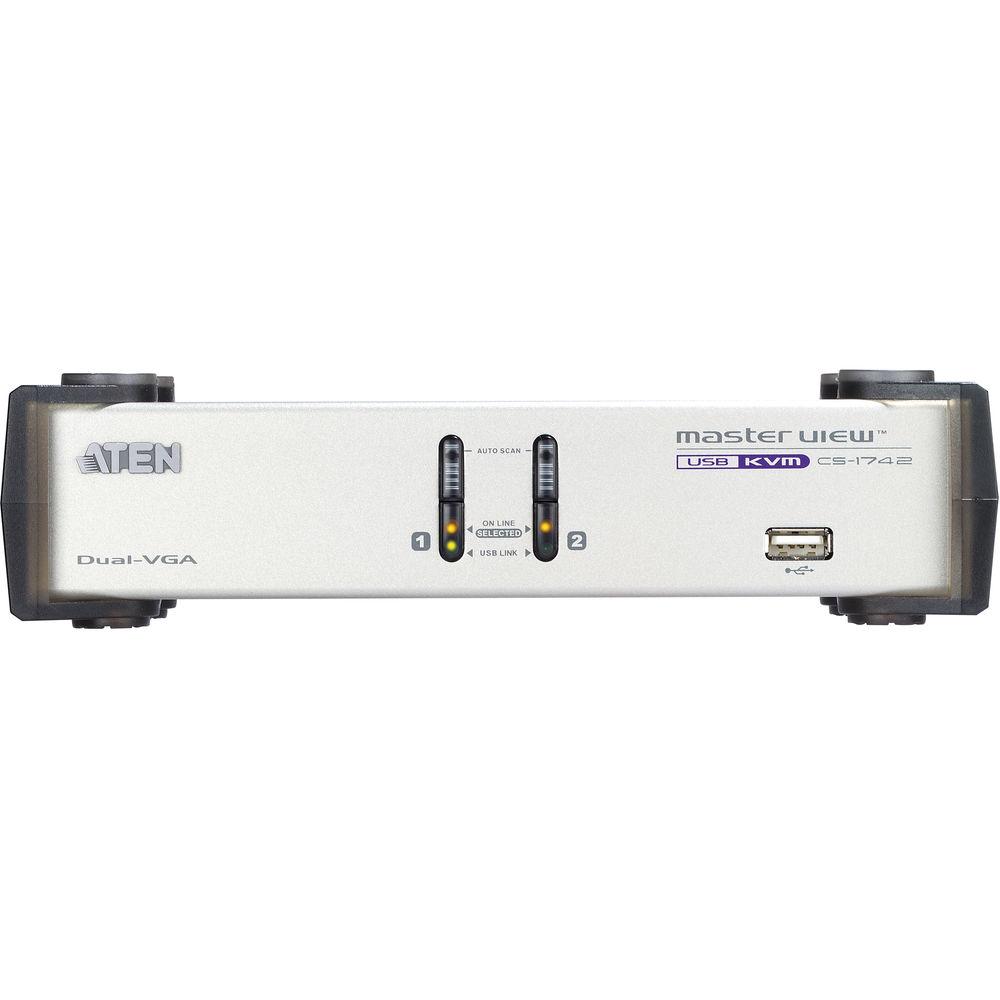

- Computer selection via front panel pushbuttons and hotkeys
- Supports resolutions up to 2048 x 1536; DDC2B
UPC: 672792151651 In the Box ATEN CS1742 2-Port USB Dual-View KVMP Switch 2 x KVM Audio/Video Cables 2 x KVM USB/Video Cables Firmware Upgrade Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS1742 2-Port USB Dual-View KVMP Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

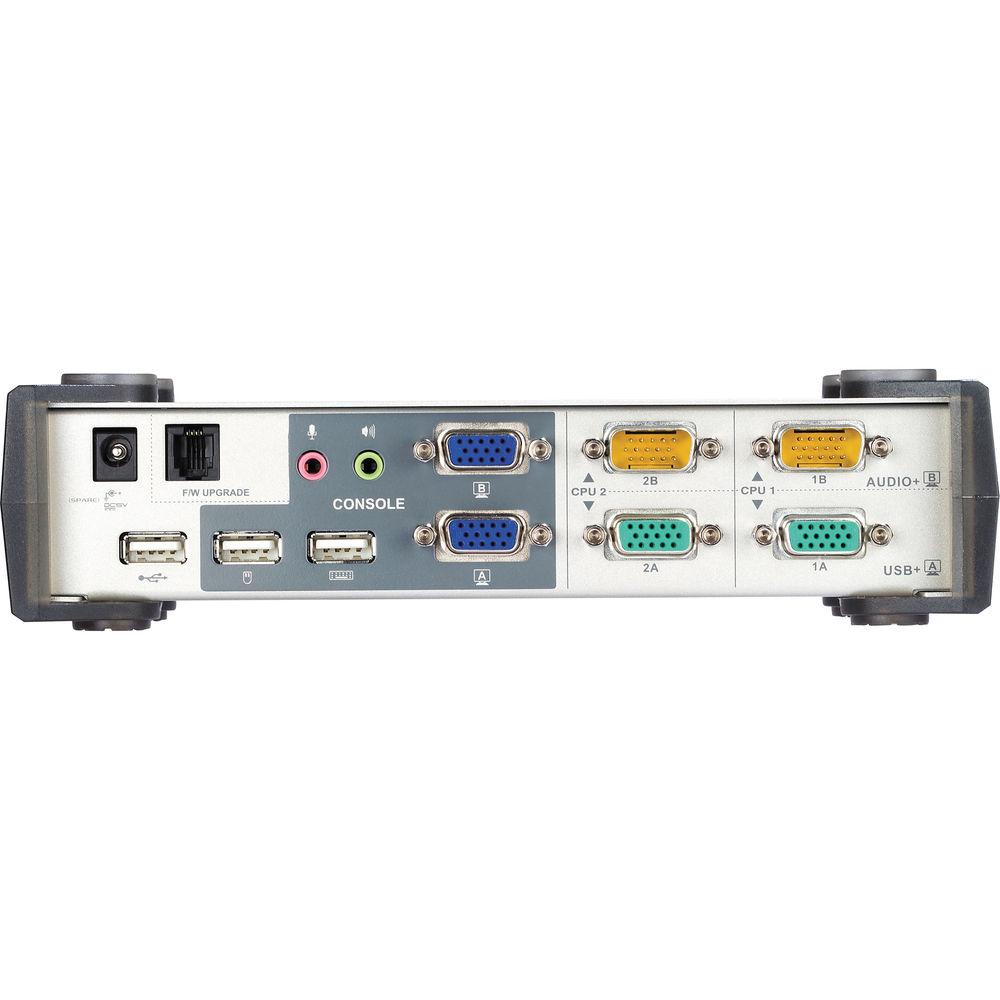

Technical parametersATEN CS1742 Specs | Max Computer Connections | 2 | | Connectors | Console Ports:
Keyboard: 1 x USB Type A female
Video: 2 x HDB-15 female
Mouse: 1 x USB Type A female
Speaker: 1 x mini stereo jack female (green)
Microphone 1 x mini stereo jack female (pink)
KVM Ports:
Speaker/microphone, video 1: 2 x SPHD-15 male (yellow)
Keyboard/mouse, video 2: 2 x SPHD-15 female (green)
USB hub: 2 x USB Type A female
Firmware upgrade: 1 x RJ11 female | | Emulation | Keyboard, mouse: USB | | Video Resolution | 2048 x 1536; DDC2B | | Scan Interval | 1 - 99 sec | | Port Selection | Hotkeys, pushbutton | | Switches | 2 x pushbutton | | LEDs | On line/selected: 2 x orange
USB link: 2 x green | | Enclosure | Metal | | System Requirements | Windows: 98SE and up
Mac: OS 8.6 and up
Sun: Blade 2000/100 (Solaris 8 and up)
UNIX
Linux: RedHat 7.1 and up | | Power Consumption | 5.3 VDC; 1.3 W | | Environment | Operating temperature: 32 - 122°F (0 - 50°C)
Storage temperature: -4 - 140°F (-20 - 60°C) Humidity: 0 - 80% RH, non-condensing | | Dimensions (WxHxD) | 8.3 x 3.5 x 2.2" (21.0 x 8.8 x 5.6 cm) | | Weight | 1.8 lbs (0.8 kg) |
