User Manual for ATEN CS1754 4-Port PS 2 - USB KVM Switch Click to enlarge the picture
Contents of the user manual for the ATEN CS1754 4-Port PS 2 -
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
 |
User manual for the ATEN CS1754 4-Port PS 2 - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

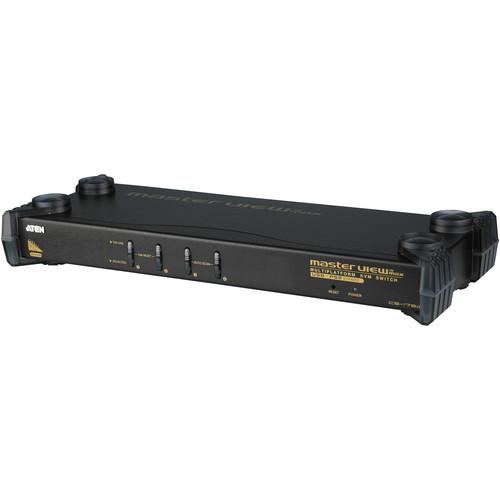

Product description Multi-Monitors: Maximizing Multitasking Read More The Aten CS1754 4-Port PS/2 - USB KVM Switch is a KVM Switch with 4 ports and supports computers with PS/2 or USB interfaces, and supports 3-tier connection via cascade. With 21 units, you can control up to 64 computers. - One USB console controls 4 computers with speaker and microphone support
- Cascadable up to 3 levels - supports up to 64 computers
- Dual interface supports computers with PS/2 or USB keyboards and mice
- Auto PS/2 and USB interface detection
- Buzzer on/off via hotkey and OSD

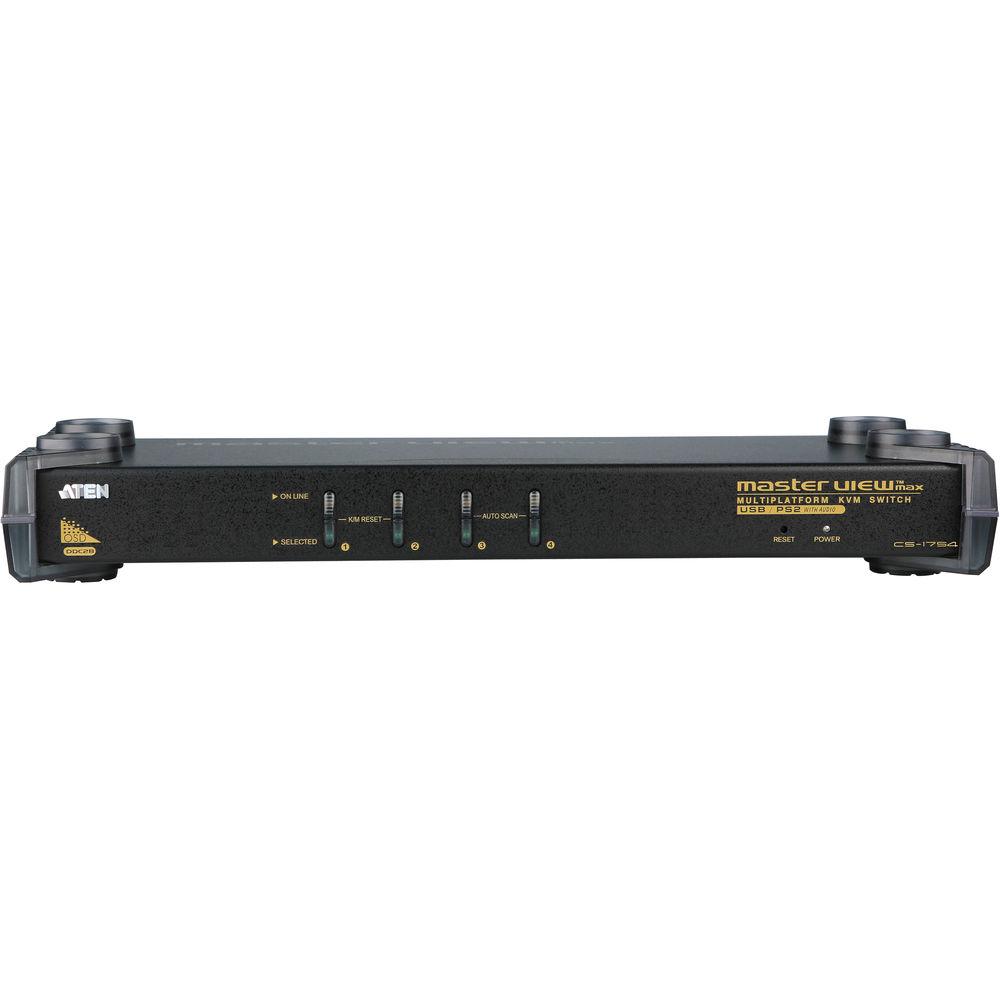

- Computer selection via front panel pushbuttons, hotkeys, and OSD
- Supports resolutions up to 2048 x 1536; DDC2B
- Rack mountable in 19" system rack
UPC: 672792001840 In the Box ATEN CS1754 4-Port PS/2 - USB KVM Switch Firmware Upgrade Cable Power Adapter Rack Mount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS1754 4-Port PS 2 - USB KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

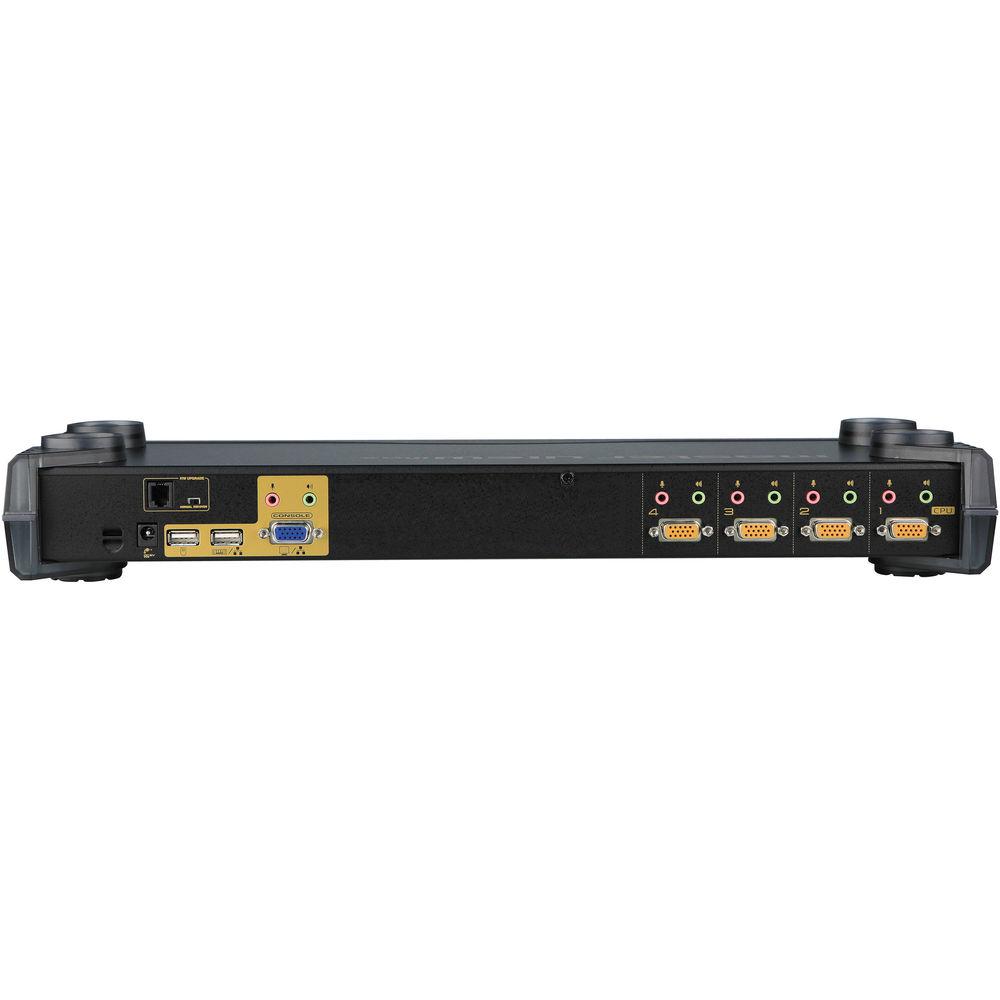

Technical parametersATEN CS1754 Specs | Max Computer Connections | 4 | | PC Connectors | Keyboard, video, mouse: 4 x SPHD-15 female
Speaker: 4 x mini stereo jack female (green)
Microphone: 4 x mini stereo jack female (pink) | | Console Connectors | Keyboard: 1 x USB Type A
Video: 1 x HDB-15 female
Mouse: 1 x USB Type A
Speaker: 1 x mini stereo jack female (green)
Microphone: 1 x mini stereo jack female (pink) | | Switches | Port: 4 x pushbutton
Reset: 1 x semi-recessed pushbutton
Firmware upgrade: 1 x slide | | LEDs | On line: 4 x orange
Selected: 4 x green
Power: 1 x blue | | Video Resolution | 2048 x 1536 @ 60 Hz; DDC2B | | Security | 2-level password security | | Scan Interval | 1 - 255 sec (5 sec default) | | Port Selection | Hotkeys, OSD, pushbutton | | Enclosure | Metal | | System Requirements | Windows: 98SE, ME, 2000, XP
Mac: OS 8.6 and up
Sun: Solaris | | Power Consumption | 5 VDC 2.8 W | | Environment | Operating temperature: 32 - 122°F (0 - 50°C)
Storage temperature: -4 - 140°F (-20 - 60°C)
Humidity: 0 - 80% RH | | Dimensions (L x W x H) | 17.0 x 6.0 x 1.8" (43.2 x 15.4 x 4.5 cm) | | Weight | 8.3 lb (3.8 kg) | | | | Package Weight | 7.85 lb | | Box Dimensions (LxWxH) | 21.2 x 9.4 x 4.8" |
