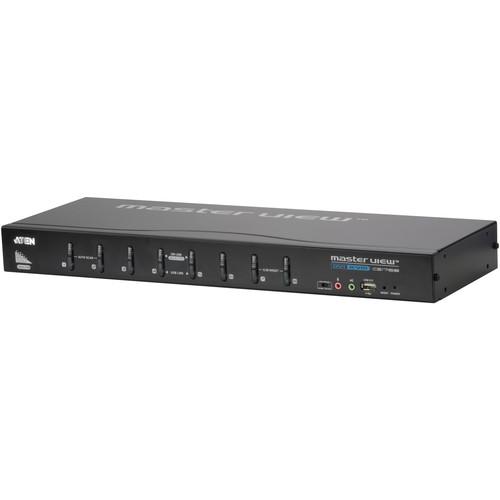

User Manual for ATEN CS1768 8-Port USB DVI KVM Switch Click to enlarge the picture
Contents of the user manual for the ATEN CS1768 8-Port USB DVI KVM
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
 |
User manual for the ATEN CS1768 8-Port USB DVI KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The CS1768 8-Port USB DVI KVM Switch from ATEN consolidates access and control of up to eight computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console. The switch can be cascaded to three levels allowing up to 73 KVM switches to control up to 512 computers from the original single console. The connected computers can be accessed using the push-button port selection, hotkeys, or on-screen display which also offers OSD configuration with options to restore and back-up your preferred settings. The switches feature a password protection option authorized by the administrator as well as an auto scan mode for monitoring the activities on each of the computers. The CS1768 provides multimedia keyboard and mouse support, and emulation and is audio enabled. - One USB console controls eight Single Link DVI or VGA computers and two additional USB 2.0 devices
- Supports both digital (DVI) and analog (VGA) video and monitor
- Cascades to three levels to control up to 512 computers
- Built in 2-port USB 2.0 hub that is compliant with USB 2.0 specifications
- Two-level (administrator/user) password authorization
- Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
- Audio enabled front and rear panel audio ports
- Supports widescreen resolutions
- Independent switching of KVM and USB focus
- Video DynaSync™ eliminates boot up display problems and optimizes resolution when switching between ports
- Keyboard and mouse port emulation supports most drivers and multifunction mice
- Multilingual keyboard mapping supports English (US), English (UK), French, German, Japanese, Korean, Traditional Chinese, and Spanish
- Auto scan and broadcast modes
UPC: 672792003011 In the Box ATEN CS1768 8-Port USB DVI KVM Switch Rack Mounting Kit 2 x Custom USB DVI-D Dual Link KVM Cable Sets Firmware Upgrade Cable Power Adapter Foot Pad Set (4 pieces) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS1768 8-Port USB DVI KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS1768 Specs | Computer Connections | Direct: 8
Max: 512 via cascading | | Console Ports | Keyboard: 1 x USB Type A Female (Black)
Video: 1 x HDB-15 Female (Blue) 1 x DVI-I Female (White)
Mouse: 1 x USB Type A Female (Black)
Speakers: 2 x Mini Stereo Jack Female (Green; 1 x front panel, 1 x rear panel)

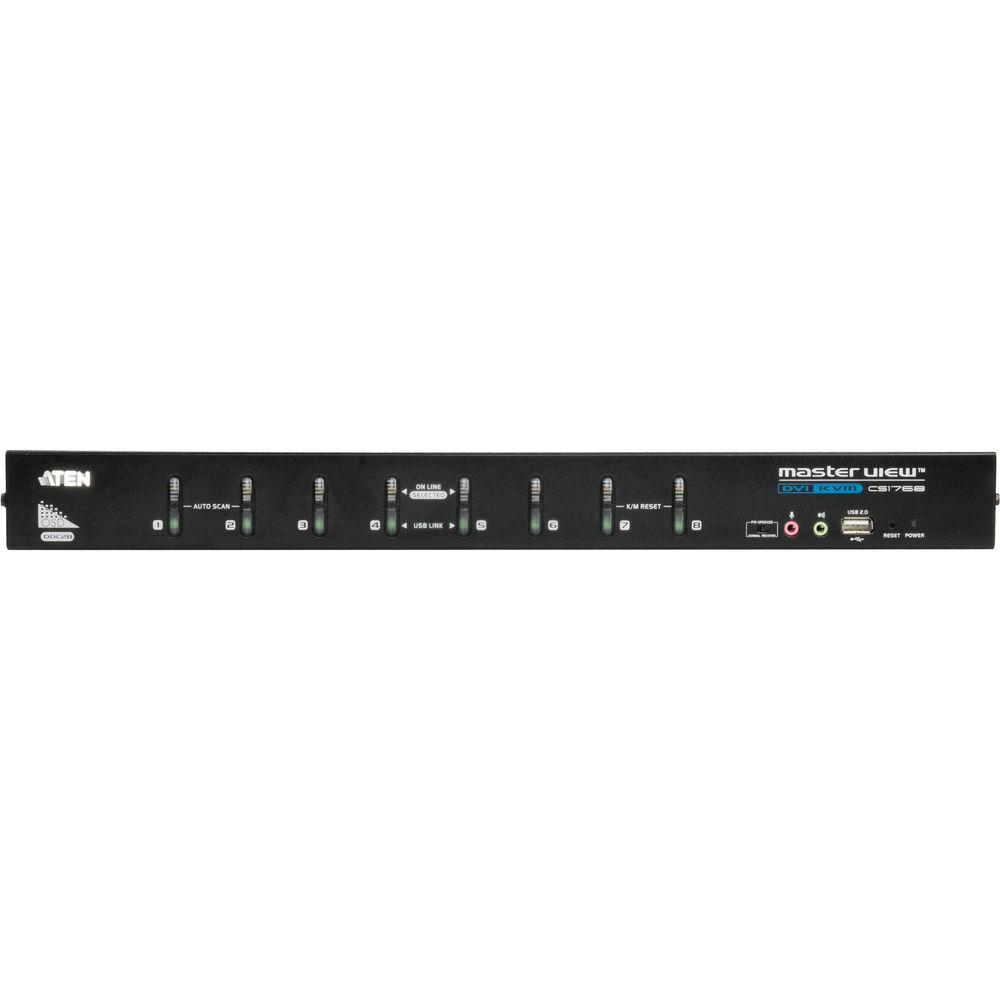

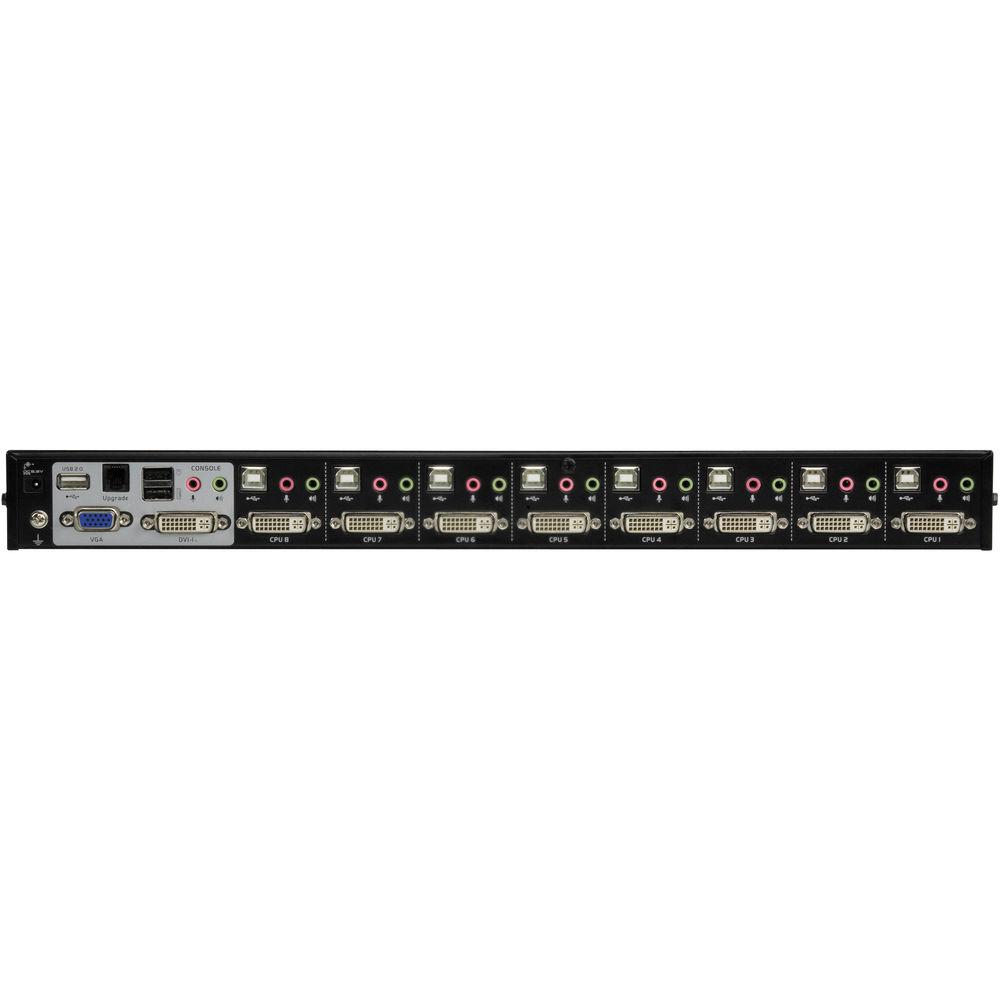

Microphone: 2 x Mini Stereo Jack Female (Pink; 1 x front panel, 1 x rear panel) | | KVM Ports | Keyboard/Mouse: 8 x USB Type B Female (White)
Video: 8 x DVI-I Female (White)
Speakers: 8 x Mini Stereo Jack Female (Green)
Microphone: 8 x Mini Stereo Jack Male (Pink) | | Connectors | F/W Upgrade: 1 x RJ-11 Female
Power: 1 x DC Jack
USB 2.0 Hub: 2 x USB Type A Female (White; 1 x front panel, 1 x rear panel) | | Switches | Port Selection: 8 x Push-button
Reset: 1 x Semi-recessed Push-button
F/W Upgrade: 1 x Slide Switch | | LEDs | USB Link: 8 (Green)
On Line/Selected: 8 (Orange)
Power: 1 (Dark Green) | | Video Resolution | DVI Single Link: 1920 x 1200
VGA: 2048 x 1536 | | Scan Interval | 1 - 255 sec (Default: 5 sec) | | Port Selection | OCD, Hotkey, Push-button | | Emulation | Keyboard/Mouse: USB | | Housing | Metal | | Power Consumption | DC 5.3 V; 3.76 W | | Compatible Operating Systems | Windows, Mac, Linux, Sun | | Dimensions (L x W x H) | 17.2 x 6.3 x 1.7" (43.7 x 16.1 x 4.4 cm) | | Weight | 6.2 lb (2.8 kg) | | | | Package Weight | 9.35 lb | | Box Dimensions (LxWxH) | 21.3 x 9.9 x 4.8" |
