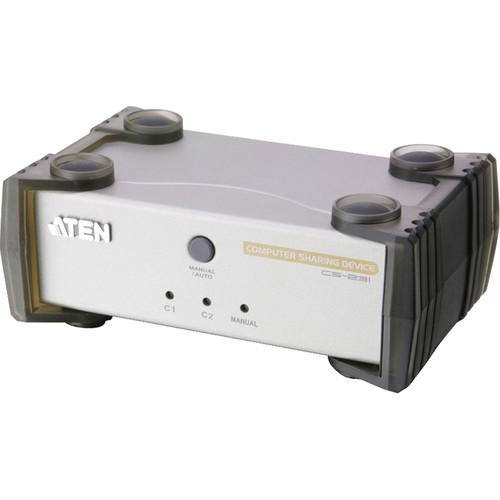

User Manual for ATEN CS231 Computer Sharing KVM Switch Click to enlarge the picture
Contents of the user manual for the ATEN CS231 Computer Sharing KVM Switch
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN CS231 Computer Sharing KVM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The Aten CS231 Computer Sharing KVM Switch is a multi-user, single-tasking device that enables two users to share the use of a single computer each from their own consoles (monitor, keyboard, and mouse). The CS231 supports USB consoles and both PS/2 and USB computers. - Single computer is shared by two USB consoles
- Supports USB and PS/2 computers
- Multiplatform support (Windows, Mac, Unix, Linux)
- Manual or auto console selection
- On-screen display informs user when system is in use
- Private mode for a privileged user
- Supports VGA and SVGA Multisync monitors
UPC: 672792200069 In the Box ATEN CS231 Computer Sharing KVM Switch USB KVM Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS231 Computer Sharing KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS231 Specs | Max Computer Connections | 1 | | Console Selection | Pushbutton | | PC Connectors | 1 x SPHD-15 female (green) | | Console Connectors | Keyboard: 2 x USB Type A female (white)
Video: 2 x HDB-15 female (blue)
Mouse: 2 x USB Type A female (white) | | Other Connectors | 1 x RJ-11 female (black) for firmware upgrade
1 x DC jack (black) for power | | Video Resolution | 1920 x 1440 @ 60 Hz; DDC2B | | Timeout Selection | 5, 60, 125, 255 seconds | | Switches | 1 x Pushbutton for mode selection
1 x Semi-recessed pushbutton for reset
1 x 4-Pin DIP switch | | LEDs | 2 x Green (selected)
1 x Orange (mode) | | Enclosure | Metal | | Operating System Requirements | Microsoft Windows 90SE, ME, 2000, XP, 2003 or later
Red Hat Linux 7.1, 7.2, 7.3, 8.0 or later
Mandriva Linux 9.0 or later
SUSE 8.2 or later
FreeBSD 4.2, 4.3, 4.5 or later
Netware 6.0 or later
Netware 5.0 (PS/2 computers only)
Mac OS 8.6, 9.0, X, 10.1, 10.2, 10.3, 10.4 or later | | Environment | Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 0 to 80% RH, non-condensing | | Power Consumption | 2.2 W | | Power Requirements | 5.3 VDC | | Dimensions (L x W x H) | 5.5 x 3.5 x 2.2" (14.0 x 8.8 x 5.5 cm) | | Weight | 1.2 lb (0.6 kg) | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 9.5 x 6.9 x 2.4" |
