User Manual for ATEN CS62A 2-Port PS 2 KVM Switch Click to enlarge the picture
Contents of the user manual for the ATEN CS62A 2-Port PS 2 KVM
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN CS62A 2-Port PS 2 KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

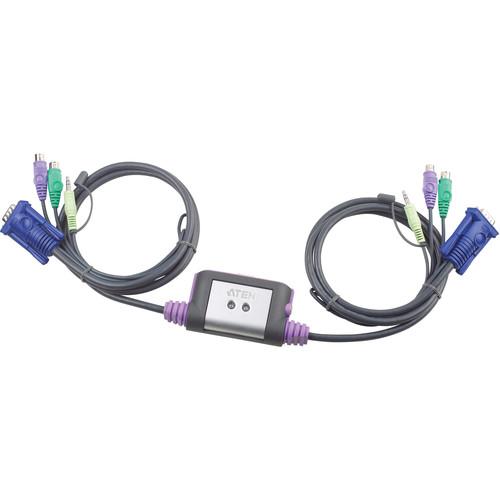

Product description Multi-Monitors: Maximizing Multitasking Read More The ATEN CS62A 2-Port PS/2 KVM Switch integrates a KVM design with 4' (1.22 m) of cables. It can control 2 servers with audio via a single console. -
- Two PS/2 consoles control 8 computers
- Up to four users can operate up to 64 computers (via cascade to CS88A and CS9138*) at the same time
(*The CS88A and CS9138 do not support the audio features of audio-enabled KVM switches) - Each console has its own access control
- Two-level (Administrator/User) password authorization for enhanced security protection
- Administrator can access any computer completely independently of the other users
- Each user has his own access control list
- Computer selection via On Screen Display (OSD)
- Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse
- OSD automatically adjusts to resolution changes
- Auto Scan function to monitor computer operation
- With speaker and microphone support
- Superior video quality: Up to 1920 x 1440; DDC2B
- Special design for easy stacking
- Rack mountable in 19" (1U) system rack
- Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD
1 Please Note: 2. This VE200R can also be combined in an installation with ATEN's Media Distribution Solution. close UPC: 672792150654 In the Box ATEN CS62A 2-Port PS/2 KVM Switch (with Audio) Power Adapter (4' / 1.2 m) Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS62A 2-Port PS 2 KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS62A Specs | CPU Connectors | Keyboard: 2x 6-pin mini-DIN female
Mouse: 2x 6-pin mini-DIN female
Video: 2x VGA (HDDB-15) male
Audio: 2x Mini stereo plug male (green) | | Console Connectors | Keyboard: 2x 6-pin mini-DIN female
Mouse: 2x 6-pin mini-DIN female
Video: 2x VGA (HDDB-15) male
Audio: 2x Mini stereo jack female (green) | | LEDs | Selected: 2x Green
| | Port Selection | Hot Keys | | Video | 2048 x1536; DDC2B | | Scan Interval | 3, 5, 10, 20 seconds | | Emulation | Keyboard: PS/2
Mouse: PS/2 | | Max Computer Connections | Direct: 2 | | Cable Length | 4' (1.22 m) | | Power Consumption | 9 V DC; 7.2 W | | Environment | Operation Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 0 to 80% RH, Non-condensing
| | Material | Plastic housing | | Dimensions (WxHxD) | 4.72 x 1.95 x 0.98" / 12.00 x 4.95 x 2.50 cm | | Weight | 0.6 lb / 0.27 kg |
