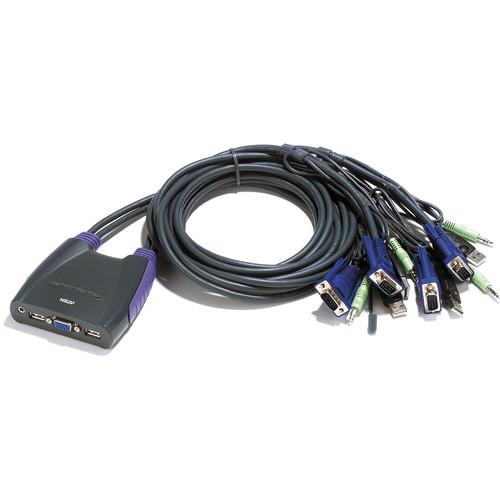

User Manual for ATEN CS64U 4-Port USB KVM Switch Click to enlarge the picture
Contents of the user manual for the ATEN CS64U 4-Port USB KVM Switch
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN CS64U 4-Port USB KVM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The CS64U 4-Port USB KVM Switch from ATEN allows for one console to control four USB computers. The KVM switch has an all-in-one design with ports for connecting a keyboard and mouse as well as video and audio connections.Featuring Video DynaSync™ technology, ATEN's extended display identification data program, the KVM switch remembers each monitor's parameters eliminating boot-up display problems and optimizing display resolution when switching between ports or computers. The auto scan function allows the user to monitor each computer and the default hotkeys can be used to toggle between the ports and operating systems as well as other switch functions. When needed, the hotkeys can be reprogrammed for the user's convenience. The KVM switch's USB mouse port can be used for USB 1.1 hub and USB 1.1 peripheral sharing.
This KVM switch is compatible with Windows, Mac, Linux, and Sun operating systems and supports multi-function and wireless keyboards and mice, and features Sun/Mac keyboard emulation. The CS64U is non-powered and firmware upgradeable. - Computer/OS selection via hotkeys
- Video DynaSync™ technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Supports multimedia keyboards, Sun/Mac keyboards, wireless keyboards and mice, and multi-function mice
- Auto scan function for monitor computer operation
- USB mouse port can be used for USB 1.1 hub and USB 1.1 peripheral sharing
- Compatible with Windows, Mac, Linux, and Sun operating systems
UPC: 672792001994 In the Box ATEN CS64U 4-Port USB KVM Switch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS64U 4-Port USB KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS64US Specs | Max Computer Connections | 4 | | KVM Ports | Keyboard: 4 x USB Type A Male (Black)
Mouse: 4 x USB Type A Male (Black)
Video: 4 x HDB-15 Male (Blue)
Speaker: 4 x Mini Stereo Plug Male (Green) | | Console Ports | Keyboard: 1 x USB Type A Female (White)
Video: 1 x HDB-15 Female (Blue)
Mouse: 1 x USB Type A Female (White)
Speaker: 1 x Mini Stereo Jack Female (Green) | | Video Resolution | 2048 x 1536; DDC2B | | Scan Interval | 1-99 seconds | | Port Selection | Hotkeys, mouse | | Enclosure | Plastic | | Cable Length | 2 x (3.0') 0.9 m
2 x (3.9') 1.2 m | | OS Compatibility | Windows, Mac, Sun, Linux | | Temperature & Humidity | Operating Temperature: 32 to 122° F (0 to 50° C)
Storage Temperature: -4 to 140° F (-20 to 60° C) Humidity Range: 0-80% RH, Non-condensing | | Dimensions (L x W x H) | 4.3 x 3.8 x 1.0" (10.9 x 9.7 x 2.5 cm) | | Weight | 1.8 lb (0.8 kg) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 10.6 x 8.7 x 3.8" |
