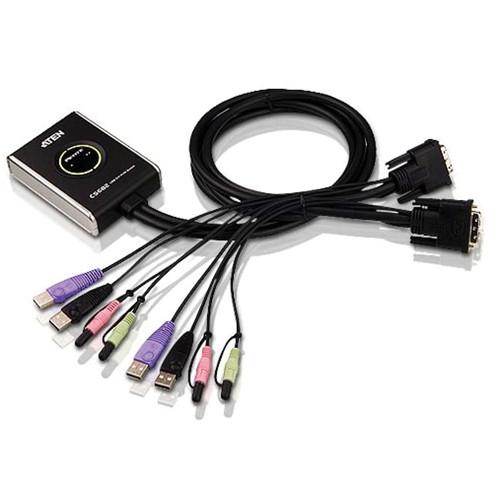

User Manual for ATEN CS682 2-Port USB USB 2.0 DVI KVM Switch Click to enlarge the picture
Contents of the user manual for the ATEN CS682 2-Port USB USB 2.0
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN CS682 2-Port USB USB 2.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The CS682 2-Port USB USB 2.0 DVI KVM Switch from ATEN allows for one DVI video console to control two USB computers. The CS682 switch offers DVI functionality, USB 2.0 peripheral sharing, and 2.1 surround audio. The remote port selector allows you to control port switching from your desktop while the switch is stored away allowing for a more organized workspace. The switch's DynaSync™ technology, various compatible keyboards and mice, along with the other features are designed to enhance user-friendly operations. - Audio-enabled for a 2.1 channel surround sound system
- Independent switching of the KVM and audio focus
- Compatible with widescreen LCD monitors
- Video DynaSync™ eliminates boot-up display problems and optimizes resolution when switching between ports
- Supports wireless keyboards and mice, as well as multimedia and gaming keyboards
UPC: 672792110559 In the Box ATEN CS682 2-Port USB USB 2.0 DVI KVM Switch Remote Port Selector Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS682 2-Port USB USB 2.0 DVI KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS682 Specs | Connections | Computer: 2
Console: 1 | | Console Port Connectors | Keyboard: 1 x USB Type A Female (Silver)
Video: 1 x DVI-D Female (White)
Mouse: 1 x USB Type A Female (Silver)
Speakers: 1 x Mini Stereo Jack Female (Green)
Microphone: 1 x Mini Stereo Jack Female (Pink) | | KVM Port Connectors | Keyboard: 2 x USB Type A Male (Purple)
Video: 2 x DVI-D Male (Black)
Mouse: 2 x USB Type A Male (Black)
Speakers: 2 x Mini Stereo Jack Female (Green)
Microphone: 2 x Mini Stereo Jack Female (Pink)
Remote Port Selector: 1 x Mini Stereo Jack | | LEDs | KVM: 2 (Green)
Remote Port Selector: 2 (Green) | | Cable Length | KVM: 2 x 4.0' (1.2 m)
Remote Port Selector: 1 x 6.0' (1.8 m) | | Emulation | Keyboard/Mouse: USB | | Video Resolution | 1920 x 1200 | | Scan Interval | 3, 5, 10, 20 sec (default 5 sec) | | Port Selection | Remote port selector, Mouse, Hotkeys | | Housing | Plastic | | Compatible Operating Systems | Windows, Mac, Sun, and Linux | | Dimensions (L x W x H) | 4.4 x 3.1 x 1.0" (11.2 x 7.8 x 2.5 cm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 8.9 x 6.5 x 3.0" |
