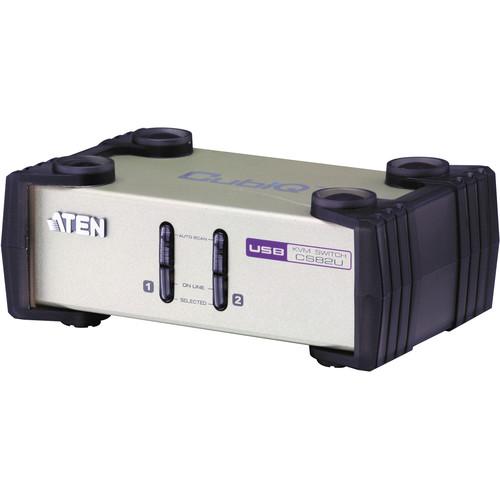

User Manual for ATEN CS82U 2-Port PS 2 USB KVM Switch Click to enlarge the picture
Contents of the user manual for the ATEN CS82U 2-Port PS 2 USB
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN CS82U 2-Port PS 2 USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More xvyzcbvccsbuuuawft Use one mouse, keyboard, and monitor to control two computers with the CS82U 2-Port PS/2 USB KVM Switch from Aten. This KVM switch comes equipped with two SPHD-18 KVM ports that connect to your computers using the included sets of KVM cables. The switch's console ports include a VGA connector for a monitor, and you can choose between either PS/2 or USB Type-A ports for your mouse and keyboard. To cycle between computers, you can press the front-panel buttons, double-click the mouse button on a compatible mouse, or use a hotkey. The plug-and-play and firmware-upgradable CS82U supports Windows, Mac, Linux, and Sun PCs, as well as video resolutions up to 2048 x 1536. No software or drivers are required to use the switch. - Video DynaSync Technology
- Helps to eliminate boot-up display problems and optimize resolution when switching between ports.
- Mouse and Keyboard Support
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice, while keyboard emulation is designed to offer error-free booting. Most gaming keyboards, multi-lingual keyboard mapping, and Mac/Sun keyboards are supported.
- Non-Powered Operation
- The CS82U KVM switch is capable of operating without a power adapter, but it comes equipped with a power port if additional power is required.
- Auto-Scan Mode
- Automatically cycles through each computer port at intervals ranging from 3 to 20 seconds.
UPC: 672792002045 In the Box ATEN CS82U 2-Port PS/2 USB KVM Switch 2 x KVM Cable Sets (4' / 1.2 m) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS82U 2-Port PS 2 USB KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS82U Specs | Max Computer Connections | 2 | | Console Connections | Keyboard: 1 x USB Type-A and 1 x PS/2 6-Pin Mini-DIN
Mouse: 1 x USB Type-A and 1 x PS/2 6-Pin Mini-DIN
Video: 1 x VGA Female | | KVM Ports | 2 x SPHD-18 | | Power Ports | 1 x DC | | Switches | 2 Push-Buttons | | Video Resolution | 2048 x 1536 @ 60 Hz; DDC2B Compliant | | Scan Interval | 3, 5, 10, or 20 Seconds (5-Second Default) | | Port Selection | Front Panel Push-Buttons, Hotkey, USB Mouse | | LEDs | Online: 2 (Orange)
Selected: 2 (Green) | | Emulation | Keyboard and Mouse: USB, PS/2 | | Housing | Metal | | Power Consumption | DC 5 V, 0.72 W, 12 BTU | | Operating Temperature | 32-122°F / 0-50°C | | Storage Temperature | -4-140°F / -20-60°C | | Compatible Operating Systems | Windows, Mac, Linux, and Sun | | Dimensions (L x W x H) | 5.5 x 3.5 x 2.2" / 14.0 x 8.8 x 5.6 cm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 9.4 x 6.9 x 2.4" |
