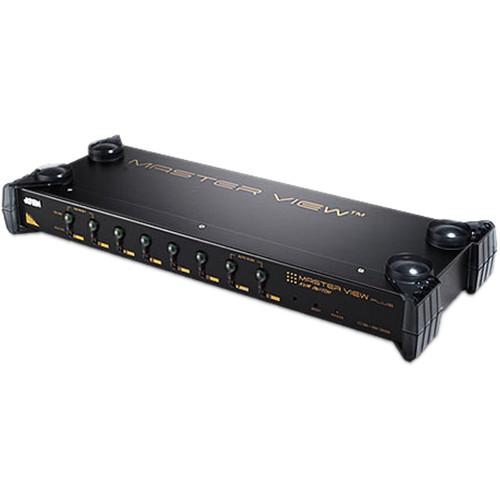

User Manual for ATEN CS9138 8-Port PS 2 KVM Switch Click to enlarge the picture
Contents of the user manual for the ATEN CS9138 8-Port PS 2 KVM
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
 |
User manual for the ATEN CS9138 8-Port PS 2 KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The CS9138 8-Port PS/2 KVM Switch from ATEN is an efficient KVM switch which provides an optimal solution to fulfill the management needs of server networks. It has eight ports and can control eight computers. It also allows additional connections in three tiers when you cascade the switches. With 73 sets of switches, users can connect up to 512 servers. - One PS/2 console controls eight computers
- Cascadable up to three levels and provides connectivity to up to 512 computers

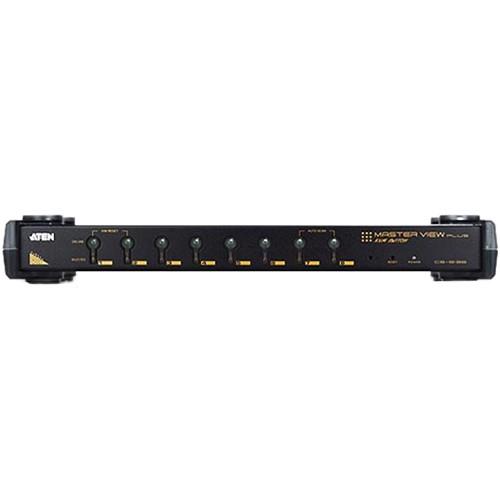

- Computer selection via front panel pushbuttons, hotkeys, or On Screen Display (OSD)
- Keyboard and mouse emulation for error-free booting
- Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse
- OSD automatically adjusts to resolution changes
- Auto Scan function to monitor computer operation
- Offers video quality up to 1920 x 1440, DDC2B
- Special design for easy stacking
- Rack mountable in 19" (1U) system rack
- Windows 2000/XP/Vista, Linux, and FreeBSD support
UPC: 672792000362 In the Box ATEN CS9138 8-Port PS/2 KVM Switch Power Adapter Rack Mount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CS9138 8-Port PS 2 KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

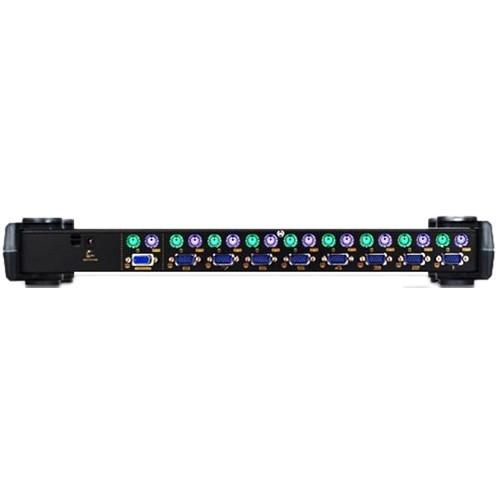

Technical parametersATEN CS9138 Specs | Connections | Direct: 8
Maximum: 512 (via cascade) | | Port Selection | Hotkey, pushbutton, OSD | | Connectors | Console Ports:
Keyboard: 1 x 6-pin Mini-DIN female (purple)
Video: 1 x HDB-15 female (blue)
Mouse: 1 x 6-pin Mini-DIN female (green)
KVM Ports:
Keyboard: 8 x 6-pin mini-DIN female (purple)
Video: 8 x HDB-15 male (blue)
Mouse: 8 x 6-pin Mini-DIN female (green)
Power: 1 x DC jack (black) | | LEDs | On Line: 8 (green)
Selected: 8 (orange)
Power: 1 (blue) | | Emulation | Keyboard/Mouse: PS/2 | | Video Resolution | 1920 x 1440, DDC2B | | Scan Interval | 3, 5, 10, 15, 20, 30, 40, 60 sec | | Power Consumption | 9 VDC, 1.08 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to +140°F (-20 to +60°C) | | Relative Humidity | 0 to 80% (non-condensing) | | Housing | Metal | | Dimensions (L x W x H) | 1.7 x 0.7 x 0.3" (4.4 x 1.8 x 0.7 cm) | | Weight | 6.2 lb (2.8 kg) |
