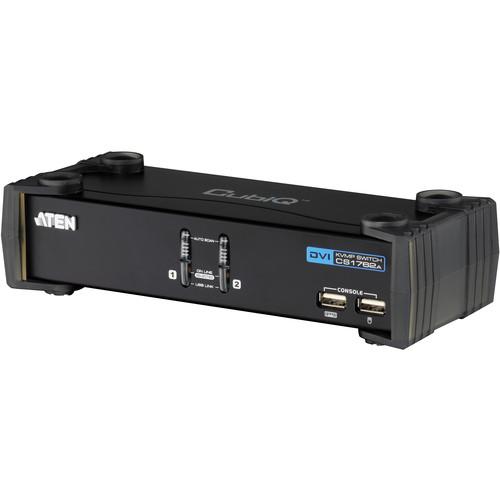

User Manual for ATEN CubiQ CS1762A USB 2.0 DVI KVMP Switch Click to enlarge the picture
Contents of the user manual for the ATEN CubiQ CS1762A USB 2.0 DVI
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN CubiQ CS1762A USB 2.0 DVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The Aten CubiQ CS1762A USB 2.0 DVI KVMP Switch combines a 2-port KVM switch with a 2-port USB 2.0 hub at the same time as it provides an interface for a digital monitor through DVI. It comes with ATEN's Video DynaSync technology, which is designed to optimize display resolution, and power on detection, which means if one computer is powered off, the unit will automatically switch to the next powered-on computer. As a KVM switch, it allows users to access two computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis. - One USB console controls 2 DVI computers and 2 additional USB 2.0 devices
- 2-port USB 2.0 hub built in
- Computer selection via front panel pushbuttons and hotkeys
- Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
- Multiplatform support - Windows, Linux, Mac, and Sun
- Supports resolutions up to 1920 x 1200, 60 Hz; DDC2B
- Independent switching of KVM, USB, and audio focus
- DVI digital and analog monitor support - fully compliant with the DVI specifications
- Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Power on detection - if one computer is powered off, the unit will automatically switch to the next powered-on computer
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Sun / Mac keyboard support and emulation Note: Sun / Mac keyboards only work with their own computers.
- Auto scan mode for monitoring all computers
- Firmware upgradable via USB
UPC: 672792002199 In the Box ATEN CubiQ CS1762A USB 2.0 DVI KVMP Switch 2 x Custom DVI-D KVM Cable Sets Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CubiQ CS1762A USB 2.0 DVI KVMP Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS1762A Specs | Max Computer Connections | 2 | | PC Connectors | Monitor: 2 x DVI-I ports (female)
Keyboard & mouse: 2 x USB Type B sockets
Microphone: 2 x microphone jack
Audio: 2 x Stereo earphone jack | | Console Connectors | Monitor: 1 x DVI-I port (female)
Keyboard: 1 x USB Type A socket
Mouse: 1 x USB Type A socket
Audio: 1 x stereo earphone jack
Microphone: 1 x microphone jack | | Video Resolution | Up to 1920 x 1200 @ 60Hz; DDC2B | | Scan Interval | 1 - 99 sec (default: 5 sec) | | Port Selection | Front panel switches, hotkey | | Enclosure | Metal | | System Requirements | USB 2.0
Windows: 2000, XP, 2003, 2008, Vista, 7
Linux: RedHat 9.0 and up; SuSE 10, 11.1 and up; Debian 3.1, 4.0; Ubuntu 7.04, 7.10 (Linux Kernel 2.6 and up)
UNIX: AIX 4.3 and up; FreeBSD 5.5 and up; Sun Solaris 8 and up
Novell: Netware 6.0 and up
Mac: OS 9 to 10.6 (Snow Leopard) | | Power Consumption | 5.3 VDC, 9.0 W | | Dimensions (WxHxD) | 8.3 x 3.4 x 2.2" (21.0 x 8.7 x 5.5 cm) | | Weight | 1.6 lbs (0.7 kg) | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 11.2 x 6.8 x 4.0" |
