User Manual for ATEN DVI Single Link Computer Sharing Device Click to enlarge the picture
Contents of the user manual for the ATEN DVI Single Link Computer Sharing
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
 |
User manual for the ATEN DVI Single Link Computer Sharing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

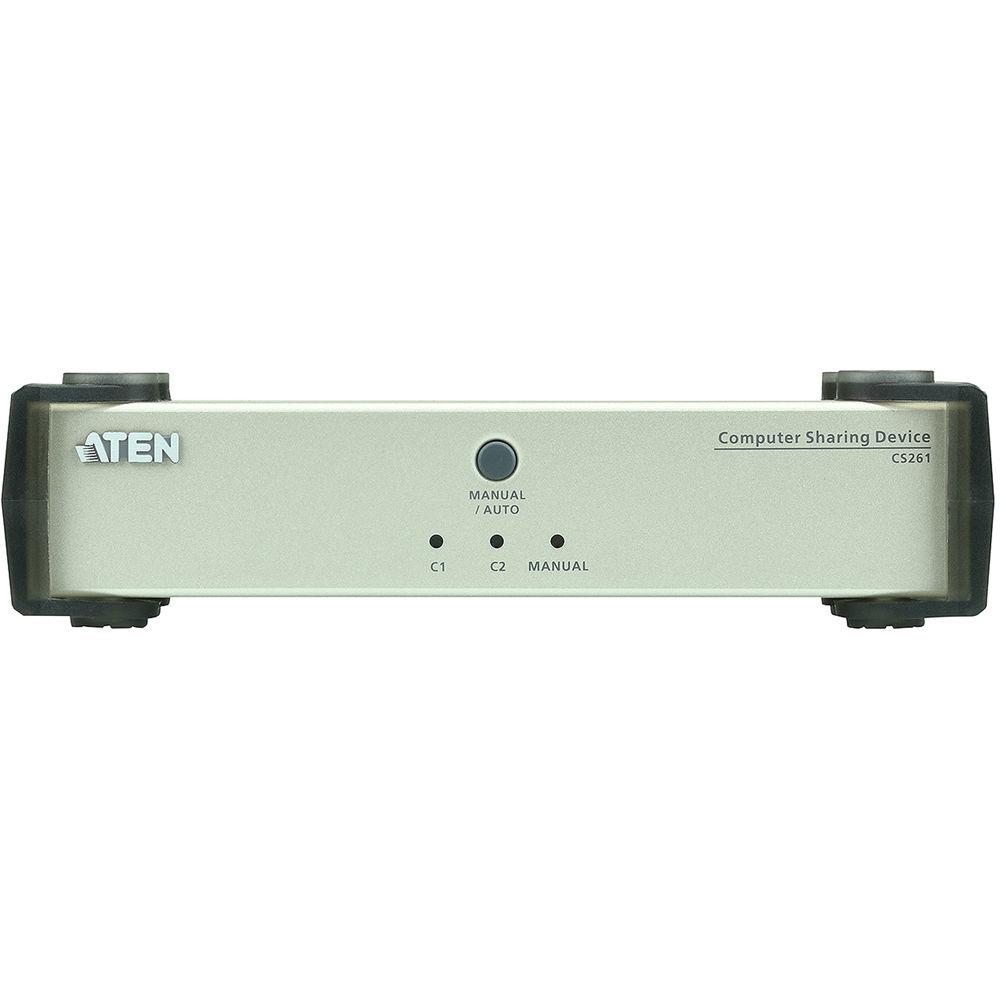

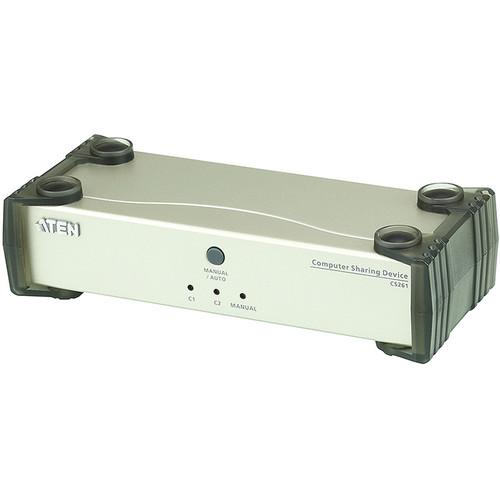

Product description Multi-Monitors: Maximizing Multitasking Read More The DVI Single Link Computer Sharing Device from Aten offers a multi-user/single-task experience that enables two users to share the use of a computer from two consoles (monitor, USB keyboard, USB mouse, speakers, and microphone). This sharing device is suitable for small office environments. All programs, files, and resources on the connected computer can be accessed and shared by the two users without the complexity and expense of setting up a network. You can operate the computer on a one by one basis with an optional security feature that can block the video and audio of the console that is not in use. The sharing device provides a convenient OSD (On-Screen Display) menu that allows both consoles to quickly access the connected computer by means of a simple user interface. - Expand control of a DVI computer with shared access between two user consoles once at a time
- Supports resolutions up to 1080p, 1920 x 1200, and 4K @ 30 Hz 1
Please Note: 4K @ 30 Hz is supported when using a DVI to HDMI cable close - Supports 2.1 channel stereo sound and high definition audio 2
Please Note: High definition audio can be converted using a DVI to HDMI cable close - Supports HDCP-enabled devices
- Selects optimum EDID settings for smooth power up, high-quality display, and use of the best resolution across different monitors
- Auto Mode: Computer access switches to a console on a first come first serve basis
- Manual Mode: Computer access switches to a console using the front panel pushbutton or a hotkey
- Supports RS-232 serial commands to switch operation and configure settings
- Screen saver blocks the console's display after a period of inactivity
- Mac/Sun keyboard emulation: consoles can use PC keyboards while working on Macintosh/Sun platforms 3
Please Note: PC keyboard combinations emulate Mac/Sun keyboards close - Supports English, Japanese, French, and German keyboards
- Supports Windows, Linux, Mac, or Sun
- Upgradeable firmware to stay current with updates
- Eliminates incompatibility and installation issues and the need to configure software
UPC: 672792006562 In the Box ATEN DVI Single Link Computer Sharing Device Custom KVM Cable Set Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN DVI Single Link Computer Sharing Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

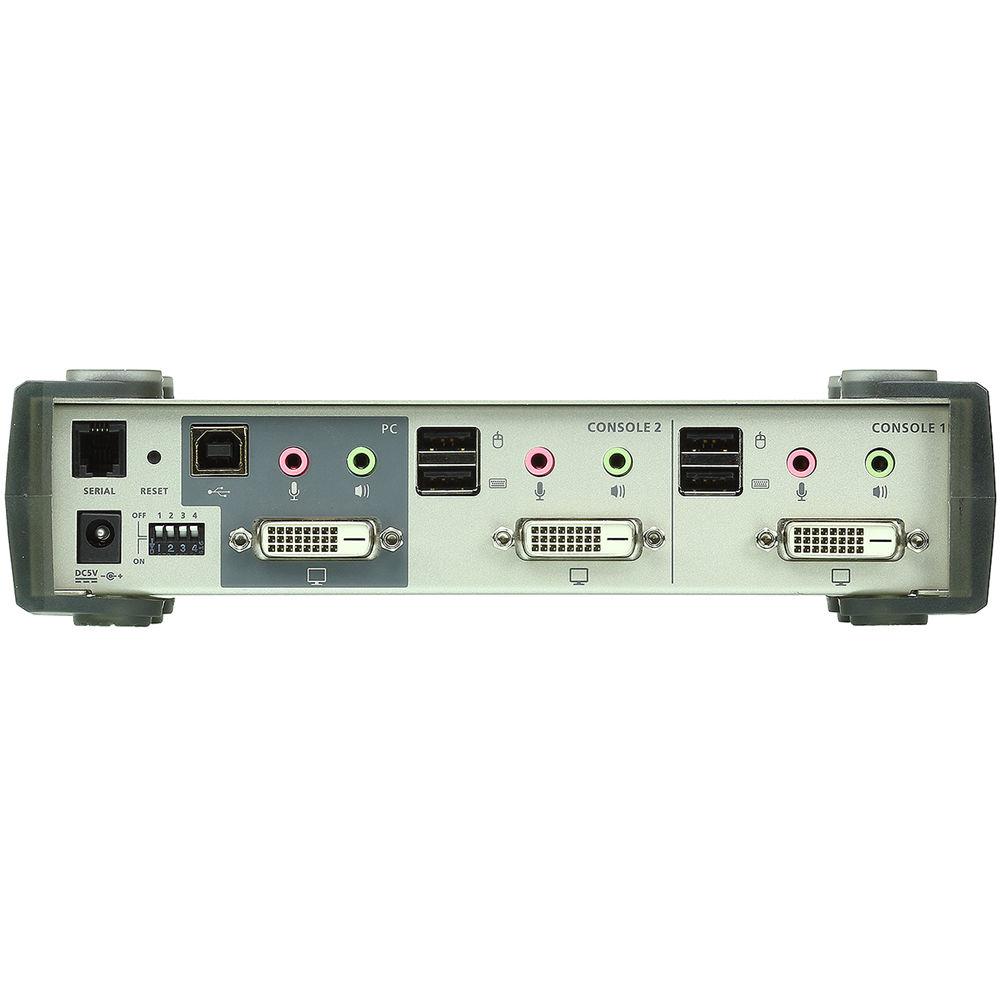

Technical parametersATEN CS261 Specs | Computer Connections | 1 | | Console Selection | Pushbutton | | Connectors | Console Ports
4 x USB type A (female)
2 x DVI-D (female)
2 x Mini stereo jack (female, green)
2 x Mini stereo jack (female, pink)
KVM Ports
1 x USB type B (female)
1 x DVI-D (female)
1 x Mini stereo jack (female, green)
1 x Mini stereo jack (female, pink)
RS-232
1 x RJ-11 (female)
Power
1 x DC jack | | Switches | Mode Selection: 1 x pushbutton
Reset: 1 x Semi-recessed pushbutton
DIP: 1 x 4-pin | | LEDs | Selected: 2 x green
Manual: 1 x orange | | Video | 3840 x 2160 @ 30 Hz | | Power Consumption | 5 VDC, 4.7 W | | Environmental | Operating Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Humidity: 0 to 80% RH, non-condensing | | Housing | Metal | | Dimensions (L x W x H) | 8.3 x 3.5 x 2.2" / 21 x 8.9 x 5.6 cm | | Weight | 1.59 lb / 0.72 kg | | | | Package Weight | 2.915 lb | | Box Dimensions (LxWxH) | 11.4 x 6.9 x 2.6" |
