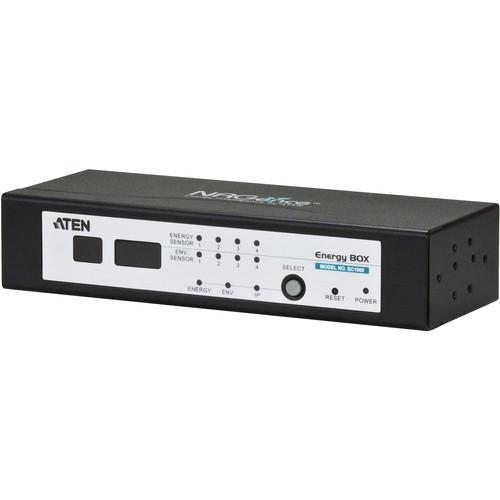

User Manual for ATEN EC1000 Energy Box Click to enlarge the picture
Contents of the user manual for the ATEN EC1000 Energy Box
- Product category: UPS Accessories ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN UPS Accessories
 |
User manual for the ATEN EC1000 Energy Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The EC1000 Energy Box from Aten is designed to monitor environmental conditions using its four energy sensor ports and its four environment sensor ports. The four energy sensor ports can connect to four Energy PDU modules, and the four environment sensor ports can connect to external sensors for providing measured readings of temperature, humidity, and differential pressure from separate areas of a data room. The box can monitor and display power and environmental data on site or remotely for quick viewing and easy maintenance.
The EC1000 Energy Box is a standalone unit with Over IP monitoring controlled by Web GUI or Aten's eco Sensors software. It features real-time status, systems logs, threshold alerts, and event notifications. The minimum and maximum condition thresholds can be customized, and the remote monitoring is securely accessed with 128 bit SSL encryption and customizable account policies. The remote authentication supports RADIUS, HTTP, HTTPS, SNMPv1, SNMPv2, and SNMPv3. Event notifications can be monitored with Syslog/SMTP/SNMP trap and audible alarms for real-time local and remote alerts. - Space saving 1U rack mounting, with front and rear mounting

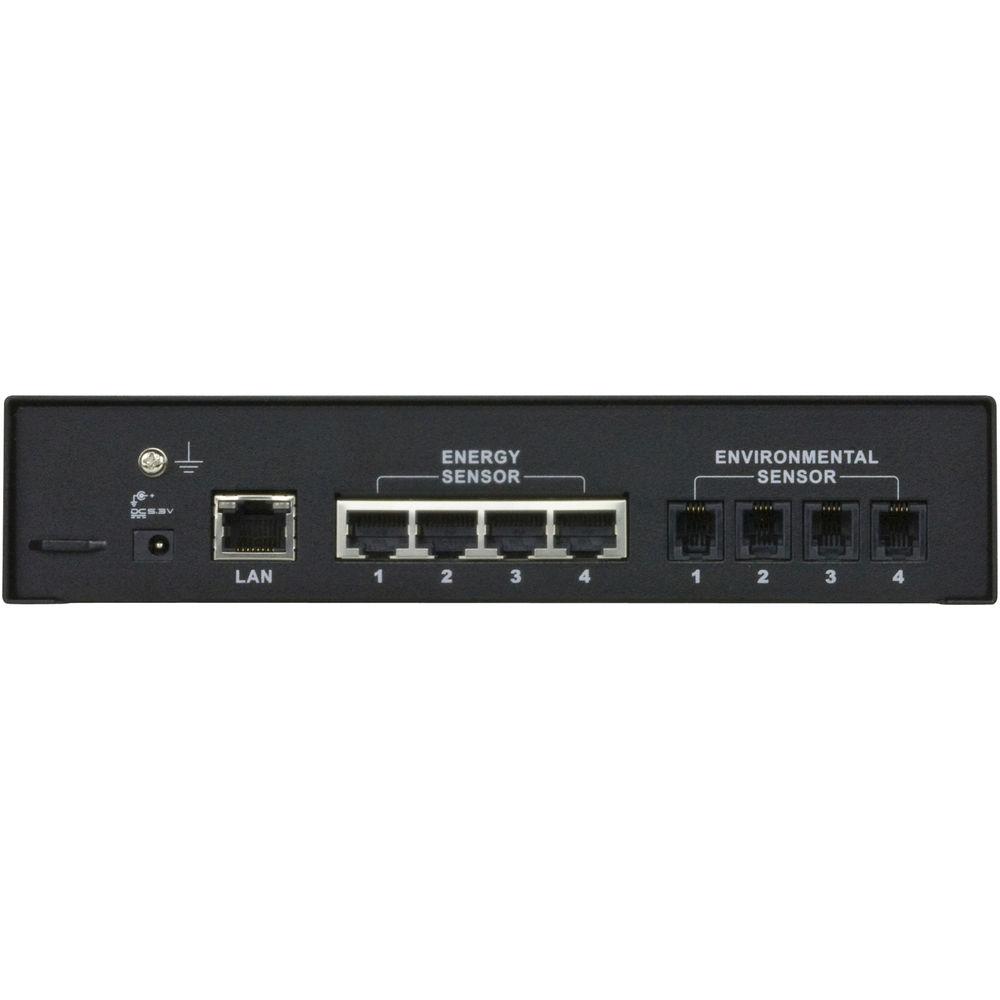

- 4 RJ-45 energy sensor ports monitor four Energy PDU currents
- 4 RJ-11 environment sensor ports monitor temperature, humidity, and differential pressure

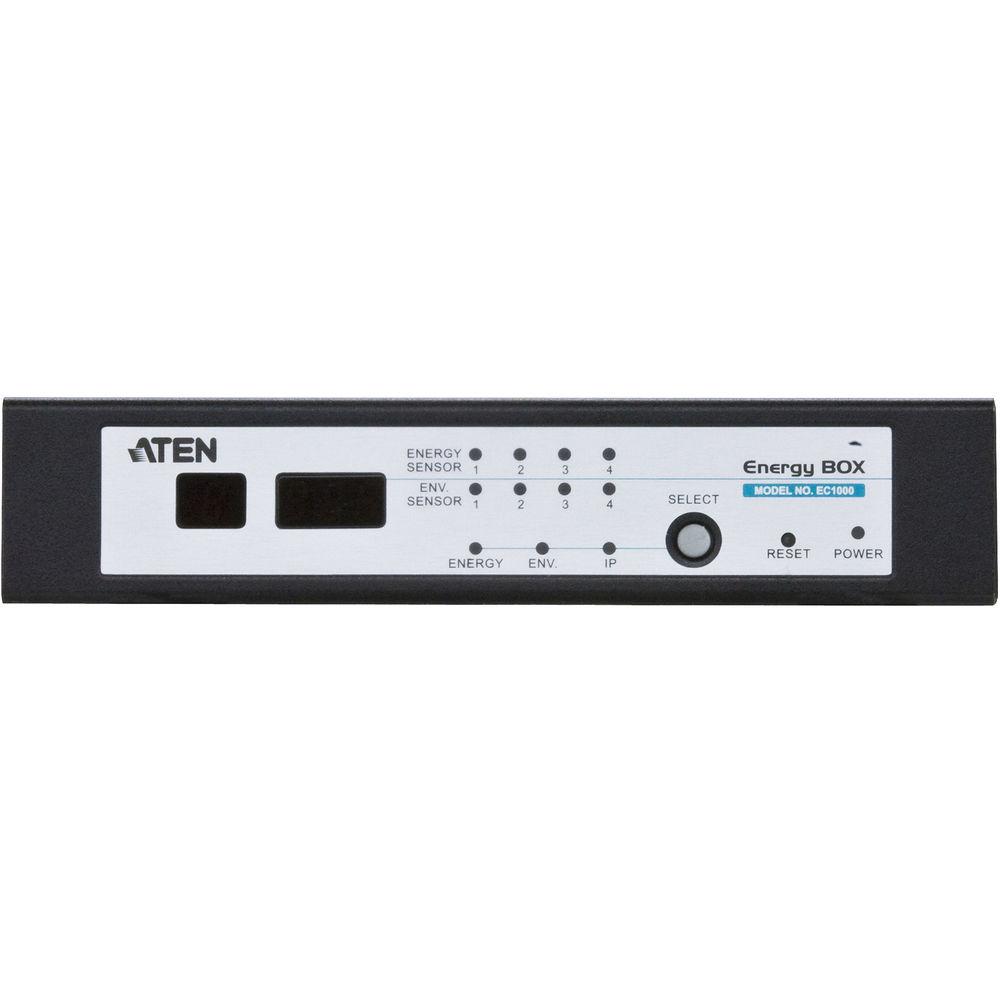

- 3 digit 7 segment front panel LED displays current, sensor, and IP address information
- Management through eco Sensors energy management software or a 3rd party SNMP manager
- Supports name assignment for individual Energy PDUs
UPC: 672792401183 In the Box ATEN EC1000 Energy Box Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN EC1000 Energy Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN EC1000 Specs | Energy PDU Connections | 4 | | Connectors | Energy sensor: 4 x RJ-45 female
Environment sensor: 4 x RJ-11 female
Power: 1 x DC Jack
LAN: 1 x RJ-45 female | | Port Selection | Pushbutton | | Buttons or Switches | Reset: 1 x semi-recessed pushbutton
Selection: 1 x selection pushbutton | | LED Indicators | 4 x PDU status
4 x sensor status
3 x energy/environment/IP
Selection: 1 digit, 7-segment
Current/sensor/IP address: 3 digit, 7-segment
1 x Power
1 x LAN 10 M/100 Mbps
1 x LAN link | | Monitoring Range | 100 to 240 V, 50 to 60 Hz, 0 to 32 A (per port)
LED display resolution: 0.1 A
Precision: ±0.1 A @ 0 ~ 1 A, ±1% > 1 A | | Power Consumption | 5.3 DCV | | Operating Temperature | 32 to 122°F / 0 to 50°C
Humidity: 0-80% RH, non-condensing | | Storage Temperature | -4 to 140°F / -20 to 60°C
Humidity: 0-80% RH, non-condensing | | Compatibility | Aten PE1216, PE1324 | | Housing | Metal | | Dimensions | 7.9 x 3.0 x 1.7" / 20.0 x 7.6 x 4.2 cm | | Weight | 1.3 lb / 0.6 kg |
