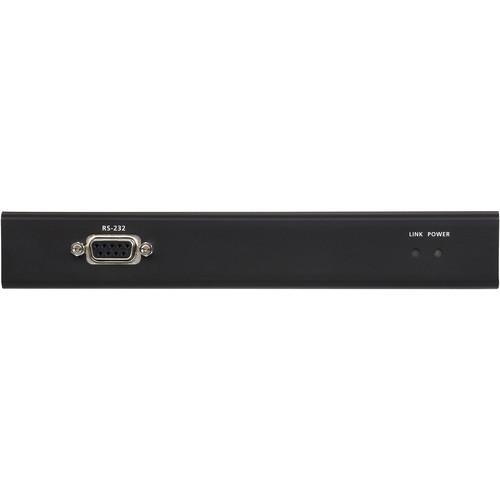

Product description Provided by third party: The VE1812 HDMI HDBaseT Extender with POH is the ideal solution for connecting equipment in remote locations up to 100m over a single Cat 5e / 6 / 6a cable. With Long Reach Mode enabled, the VE1812 can extend HDMI signal up to 150m @1080p. The VE1812 supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions. The VE1812 features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812 is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. The VE1812 is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.
- Key Features
-
- HDBaseT Connectivity ? extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable
- Supports HDBaseT Long Reach Mode ? Up to a maximum range of 150 meters @ 1080p
- 4k x 2k HDMI transmission distance up to 100m over Cat 6a or ATEN 2L-2910 Cat 6 cable
- HDBaseT Anti-jamming ? resists signal interference during high - quality video transmission using HDBaseT technology
- POH (Power over HDBaseT) ? supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
- Bi-directional RS-232 channel ? allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
UPC: 672792007705 Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN HDMI HDBaseT Extender over CATx Cable with PoH in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE1812 Specs | | | Device Type | Video/audio/infrared extender | | Form Factor | Rack-mountable | | | | Connectivity Technology | Wired | | Data Link Protocol | HDBaseT | | Data Transfer Rate | 10.2 Gbps | | Max Resolution | 4096 x 2160 @ 60 Hz | | Max Transfer Distance | 492 ft | | Features | HDCP compliant, 3D support, 4K resolution support, 2K resolution support, metal housing, 1080p resolution support | | | | Interfaces | 1 x HDMI - 19 pin HDMI Type A
1 x RS-232 - terminal block
1 x IR
1 x HDBaseT - RJ-45 | | | | Included Accessories | IR receiver, IR transmitter, 2 x RS-232 terminal blocks | | Compliant Standards | RoHS, CEC | | | | Power Over Ethernet (PoE) | PoH | | Power Device | External power adapter | | | | Width | 4 in | | Depth | 5.4 in | | Height | 1.1 in | | Weight | 15.87 oz | | | | Min Operating Temperature | 32
