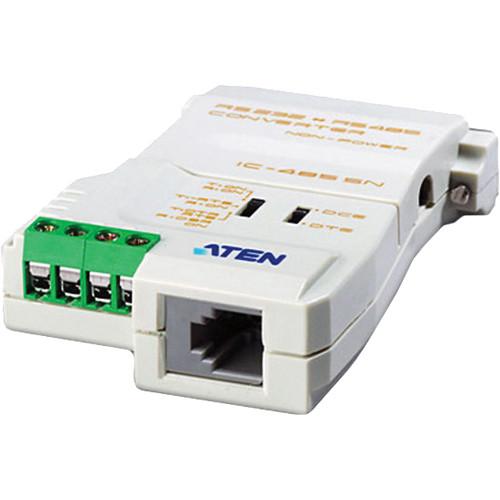

Product description The ATEN IC485SN Interface Converter is a 2-way converter for transparently converting RS-232 signals to and from RS-422/RS-485 signals in long-distance applications up to 4,000' (1,200m) and needs no external power supply.The converter provides point to point/multidrop and simplex operations over distances of 4,000' (1,200m), thus permitting the creation of reliable long distance data communication systems using standard computer hardware. - Data transmission controlled by RTS signals
- Point to point/multidrop and simplex/duplex operating modes
- Four wire full duplex and two wire half duplex
- Cable distance of up to 4,000' (1,200m)
- External power not required; power supplied by the RS-232 interface
- Supports baud rates up to 115.2 kbps
- OS Support: Windows 2000, Windows XP
UPC: 672792142017 In the Box ATEN IC485SN RS-232/RS-485 Interface Converter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN IC485SN RS-232 RS-485 Interface Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN IC485SN Specs | Connectors | 1x DB-25 female (RS-232)
RS-485 / RS-422 four terminal block
1x RJ-11 female | | Switch | SW1: DCE, DTE
SW2: TxON, RxON
TxRTS, RxON
TxDTR/RTS,RxDSR/ON | | Power Consumption | Maximum: 9 VDC, 0.9 W | | Signal Range | Maximum: 4,000' (1,200 m) | | Data Rate | Up to 100 Kbps under 4,000' (1,200 m) | | Operating Temperature | Approximately 32 to 122˚F (0 to 50˚C) | | Storage Temperature | Approximately -4 to 140˚F (-20 to 60˚C) | | Humidity (Non-condensing) | Approximately 0 to 80% RH | | Housing | Plastic | | Dimensions (L x W x H) | 2.12 x 2.93 x 0.72" (5.40 x 7.45 x 1.85 cm) | | Weight | 2.11 oz (60.00 g) |
