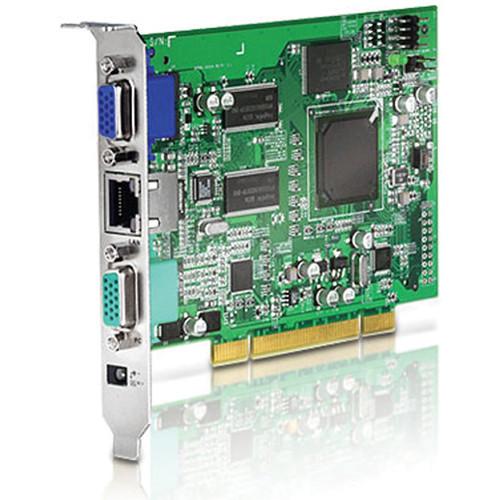

User Manual for ATEN IP8000 Remote Access PCI Card Click to enlarge the picture
Contents of the user manual for the ATEN IP8000 Remote Access PCI Card
- Product category: KVM Cables & Accessories ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Cables & Accessories
|
User manual for the ATEN IP8000 Remote Access PCI Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The IP8000 Remote Access PCI Card from ATEN allows for multi-platform access and control of the server it is installed on using "over IP" technology. Through the PCI card, the server can be accessed from remote locations using a standard internet browser or with stand-alone Windows and Java applications. Access can be given to up to 64 user accounts or up to 32 concurrent user log-ins with three levels of authentications and password and encryption protection.
The IP8000 PCI Card is compatible with Windows, Linux, Unix and Novell operating systems and supports various TCP and IP protocols. The card supports 10Base-T and 100Base-T for quick signal connections. - Standard PCI-sized card for over-IP access and control of a remote server
- Virtual media via USB 2.0 data transmission
- Remote power control and reset support
- Up to 64 user accounts with up to 32 concurrent user log-ins
- RADIUS external authentication support
- Message board for communication between user
- Optional password protection and encryption technologies available
- Web-based Windows and Java implementation; Windows GUI and Java client software for non-browser access
- 10Base-T and 100Base-T compatible
- Supports TCP/IP, HTTP, HTTPS, UDP, DHCP, SSL, ARP, DNS, ICMP, CHAP
- Bandwidth optimization via grayscale and video quality setting
- Enable/disable browser operation
- Multi-level authorization
- Remote firmware upgradeable
UPC: 672792112270 In the Box ATEN IP8000 Remote Access PCI Card Custom KVM Cable Set Feature Cable Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN IP8000 Remote Access PCI Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN IP8000 Specs | Connectors | Console Keyboard, Mouse and Monitor: 1 x SPHD-18 Female (Green)
Video Out: 1 x HDB-15 Female (Green)
LAN Port: 1 x RJ-45 Female
Power: 1 x DC Jack | | LEDs | Link: 1 (Green)
10/100 Mbps: 1 (Green/Orange) | | Emulation | Keyboard and Mouse: USB | | Video Resolution | 1600 x 1200 @ 60 Hz; DDC2B | | Power Consumption | DC5V, 6W | | Operating Temperature | 32 - 104° F (0 - 40° C) | | Storage Temperature | -4 - 140° F (-20 - 60° C) | | Humidity | 0 - 80% RH, Non-condensing | | System Requirements | P III 1 GHz processor
Internet connection speed of at least 128 kbps
Browser supports 128-bit SSL data encryption | | Supported Operating Systems | Windows: 2000 and higher
Linux: Redhat 7.1 and higher, SuSE 8.2 and higher, Mandriva (Mandrake) 9.0 and higher
UNIX: AIX 4.3 and higher, FreeBSD 4.2 and higher
Novell: Netware 5.0 and higher | | Dimensions (W x H x D) | 6.1 x 4.7 x 0.8" (15.5 x 11.9 x 2.0 cm) | | Weight | 0.2 lb (0.1 kg) |
