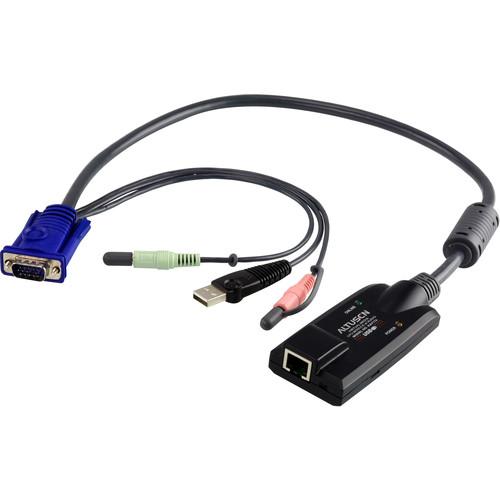

User Manual for ATEN KA7176 USB Virtual Media KVM Adapter Cable with Audio Click to enlarge the picture
Contents of the user manual for the ATEN KA7176 USB Virtual Media KVM
- Product category: KVM Cables & Accessories ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Cables & Accessories
|
User manual for the ATEN KA7176 USB Virtual Media KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The KA7176 USB Virtual Media KVM Adapter Cable with Audio (CPU Module) from ATEN connects the KVM switch to the video, USB, and audio ports of the target computer. With its small form factor and light weight design, it represents the next generation of USB Virtual Media KVM adapter cables offering signal compensation and delay skew techniques for enhanced video quality. - Keyboard and mouse emulation keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to a different KVM port
- Supports resolution of up to 1600 x 1200 within the distance of up to 50m
- Built-in ASIC for reliability and compatibility. The module has a compact size with Virtual Media support
- CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (PC, Mac, and Sun)
Note: 1680 x 1050 (Reduced blanking) and 1920 x 1200 (reduced blanking) supported UPC: 672792400575 In the Box ATEN KA7176 USB Virtual Media KVM Adapter Cable with Audio (CPU Module) KVM Adapter Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN KA7176 USB Virtual Media KVM Adapter Cable with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN KA7176 Specs | Connectors | Link: 1 x RJ-45 female
USB to Computer: 1 x USB type A male
VGA to Computer: 1 x HDB-15 male
Microphone and Speaker: 2 x Mini stereo plug | | LED Indicators | 1 x On line (green) 1 x Link (orange) | | Housing | Plastic | | Dimensions (L x W x H) | 3.54 x 1.69 x 0.85" (9.00 x 4.30 x 2.18 cm) | | Weight | 0.37 lb / 0.17 kg | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 5.1 x 4.9 x 1.9" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
