User Manual for ATEN KA7230S PS 2 USB Console Module Click to enlarge the picture
Contents of the user manual for the ATEN KA7230S PS 2 USB Console
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN KA7230S PS 2 USB Console contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

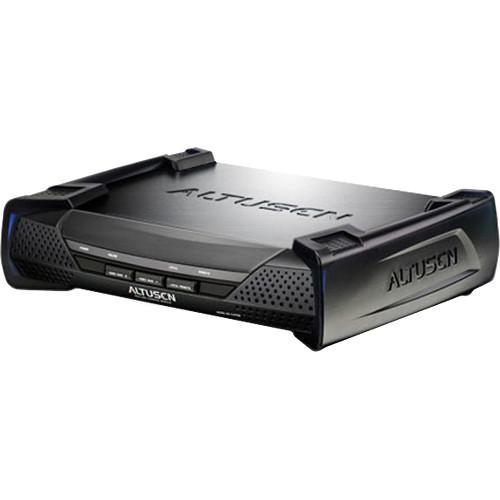

Product description Multi-Monitors: Maximizing Multitasking Read More The KA7230S PS/2 USB Console Module from ATEN offers secure access to the servers in a matrix KVM switch from a PS/2 or USB console up to 656' away. It provides an extra computer port for integration with a computer workstation, enabling users to seamlessly switch between the local computer and the servers in the matrix KVM switch. The module also features an intuitive graphical user interface, graphical on-screen display, with easy-to-use menus and icons for easy access and efficient management.
The KA7230S has a built-in RS-232 port, allowing administrators to establish a serial terminal login and control the KVM port access for all consoles connected to switch. This function is useful in large data centers where the display of all the consoles can be projected onto a wall for easy viewing of all operations, and the entire installation can be monitored on a port-by-port basis. - Supports PS/2 and USB keyboards and mice
- Connects to a matrix KVM switch via Cat 5e/6 cable
- 1280 x 1024 video resolution at 60Hz
- Manual video gain control for fine tuning
- Convenient computer selection via intuitive hotkey combinations or graphical OSD menus
In the Box ATEN KA7230S PS/2 USB Console Module Stacking Brackets 6' Custom KVM Cable Power Adapter Mounting Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN KA7230S PS 2 USB Console Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN KA7230S Specs | Connections | 1 x computer
1 x console | | Port Selection | GUI, Hotkey | | Console Ports | Keyboard: 1 x USB Type-A, female (white); 1 x 6-pin Mini DIN, female (purple)
Video: 1 x 15-pin Sub-D, female (blue)
Mouse: 1 x USB Type-A, female (white); 1 x 6-pin Mini DIN, female (green) | | Connectors | Local Computer KVM Port: 1 x SPHD-17, female (yellow)
KVM Switch Ports: 2 x RJ45, female
RS-232: 1 x 9-pin Sub-D, male (black)
Power: 1 x DC jack | | Switches | Local/Remote: 1 x push-button
F/W Upgrade: 1 x slide
Video Gain Adjustment: 2 x push-button | | LEDs | 1 x power, blue
1 x online, green
1 x local, orange
1 x remote, orange | | Emulation | Keyboard/Mouse: PS/2; USB (PC, Mac, and Sun) | | Video | 1280 x 1024 at 60 Hz
Range: Up to 656' / 200 m | | Scan Interval | 1 to 240 seconds | | Power Consumption | 5.3 VDC, 6.5 W | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 0 to 80% RH | | Housing | Metal | | Dimensions | 8.9 x 6.8 x 2.2" / 22.7 x 17.2 x 5.5 cm | | Weight | 2.7 lb / 1.22 kg |
