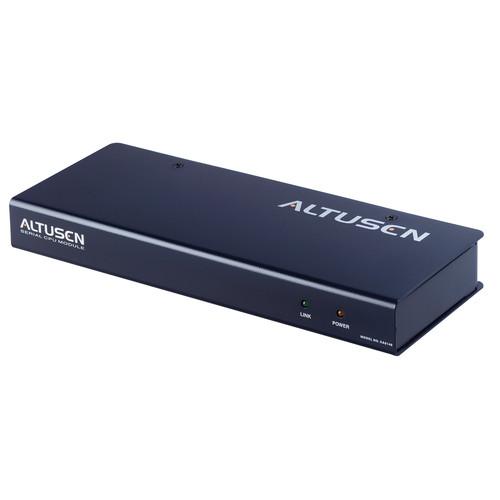

User Manual for ATEN KA9140 Serial KVM Adapter Module Click to enlarge the picture
Contents of the user manual for the ATEN KA9140 Serial KVM Adapter Module
- Product category: Serial/Control Cables & Adapters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Serial/Control Cables & Adapters
|
User manual for the ATEN KA9140 Serial KVM Adapter Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The KA9140 Serial KVM Adapter Module from Aten is designed to connect KVM cables to your server's serial port. It features automatic conversion, allowing for flexible interface combinations to control most computer types. The module enables you to add or remove computers without powering down the switch, and it supports a video resolution of up to 1024 x 768. There is auto signal compensation, making a DIP switch unnecessary, and built in ASIC for maximum reliability and compatibility. The package includes a rack mount kit, four foot pads, one registration card, one power adapter, and a firmware upgrade cable. The module also includes lifetime firmware upgrades. - Automatic conversion allows for flexible interface combinations to control all computer types
- Add or remove computers without having to power down the switch
- Lifetime firmware upgrades
- Supports resolution of up to 1024 x 768
- Built in ASIC for maximum reliability and compatibility
- Auto signal compensation makes a DIP switch setting unnecessary
UPC: 672792400209 In the Box ATEN KA9140 Serial KVM Adapter Module Rack Mount Kit 4 x Foot Pads Registration Card Power Adapter Firmware Upgrade Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN KA9140 Serial KVM Adapter Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN KA9140 Specs | Connectors | Mouse: PS/2
Keyboard: 1 x mini-DIN female
Monitor: 1 x VGA (HDDB-15) female
Power: 1 x AC jack female
RS-232: 1 x DB-9 female | | Power | 5 DCV, 300 mA | | LED Indicators | 1 x power on
1 x link | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 3.2 x 7.9 x 1.0" / 8.1 x 20.1 x 2.5 cm | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 10.4 x 8.7 x 3.8" |
