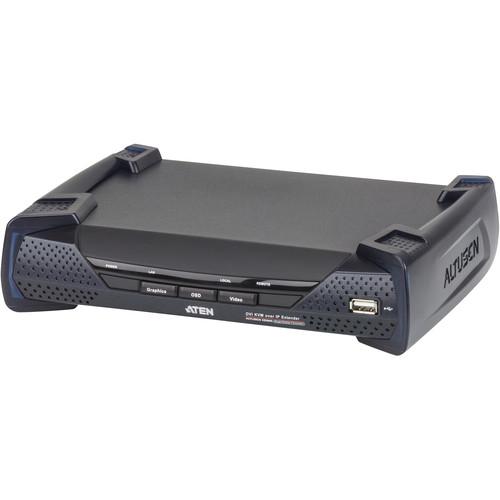

Product description The KE6900R DVI KVM Over IP Extender Receiver from ATEN can be combined with the corresponding transmitter for extending your computer to consoles on or off your IT infrastructure. The extender allows access to a computer system from a remote USB console over an intranet. This receiving unit provides console access from a separate location over a standard TCP/IP network via a Cat 5e cable for point-to-point, point-to-multipoint, and multipoint-to-multipoint administration. The Matrix Manager software allows you to password protect your devices and administer them over a network using the web-based GUI. - Remotely access computers on your KVM installation via intranet
- Dual console operation allows for controlling your system from both the transmitter and receiver USB keyboard, monitor, and mouse consoles
- RS-232 serial ports allow you to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners
- Video quality up to 1920 x 1200 @ 60 Hz with 24-bit color depth
- Supports standard VGA resolutions from 640 x 480 to 1920 x 1200 at 60 Hz
- On Screen Display on the receiver can configure receiver and transmitter
- Supports AP GUI operation
- DVI digital and analog monitor support
- Built-in 8KV/15KV ESD protection and 2KV surge protection
- Supports stereo speakers and microphone
- Auto-MDIX detects cable type automatically
- Supports widescreen formats and high-quality video streaming
UPC: 672792402869 In the Box ATEN KE6900R DVI KVM Over IP Extender Receiver Power Adapter Manual PDF 4.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN KE6900R DVI KVM Over IP Extender Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

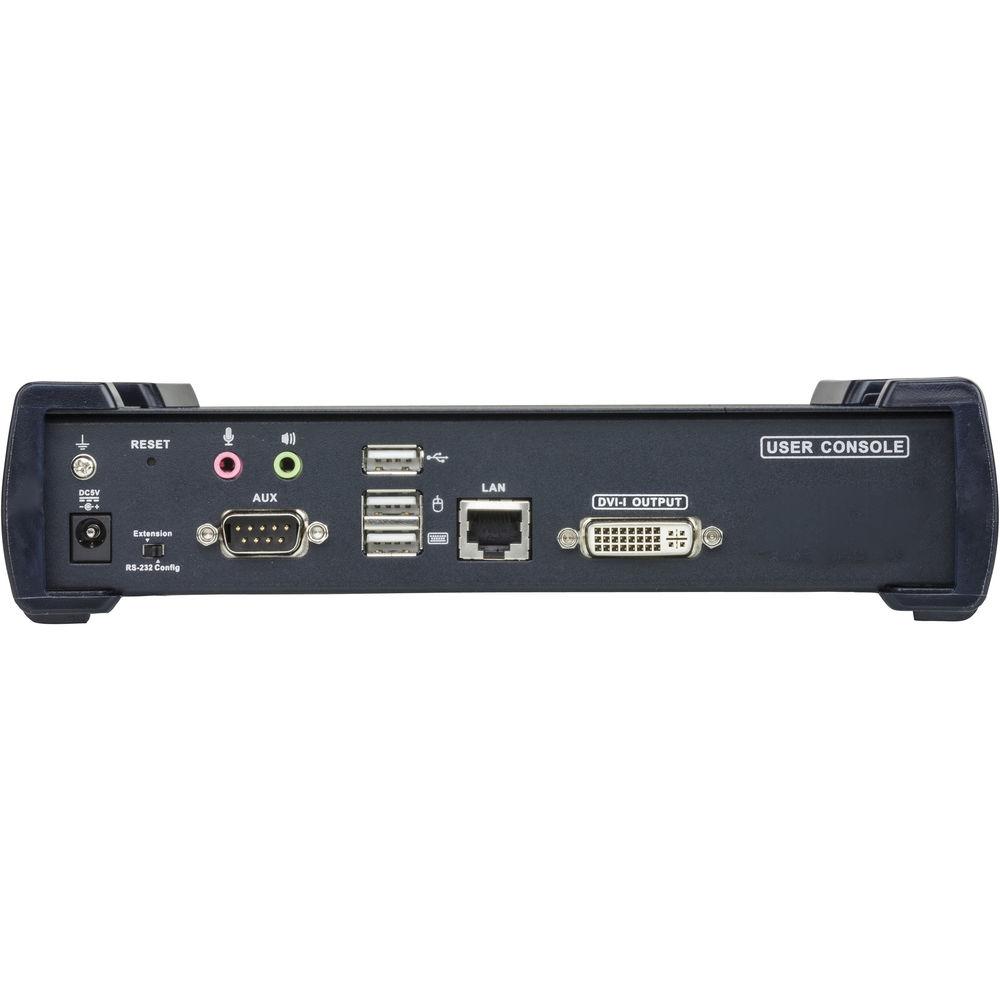

Technical parametersATEN KE6900R Specs | USB Ports | 2 x USB Type A female (white) | | Console Ports | Keyboard: 1 x USB Type A female (white)
Video: 1 x DVI-I
Mouse: 1 x USB Type A female (white)
Speaker: 1 x Mini stereo jack (green)
Microphone: 1 x Mini stereo jack (pink)

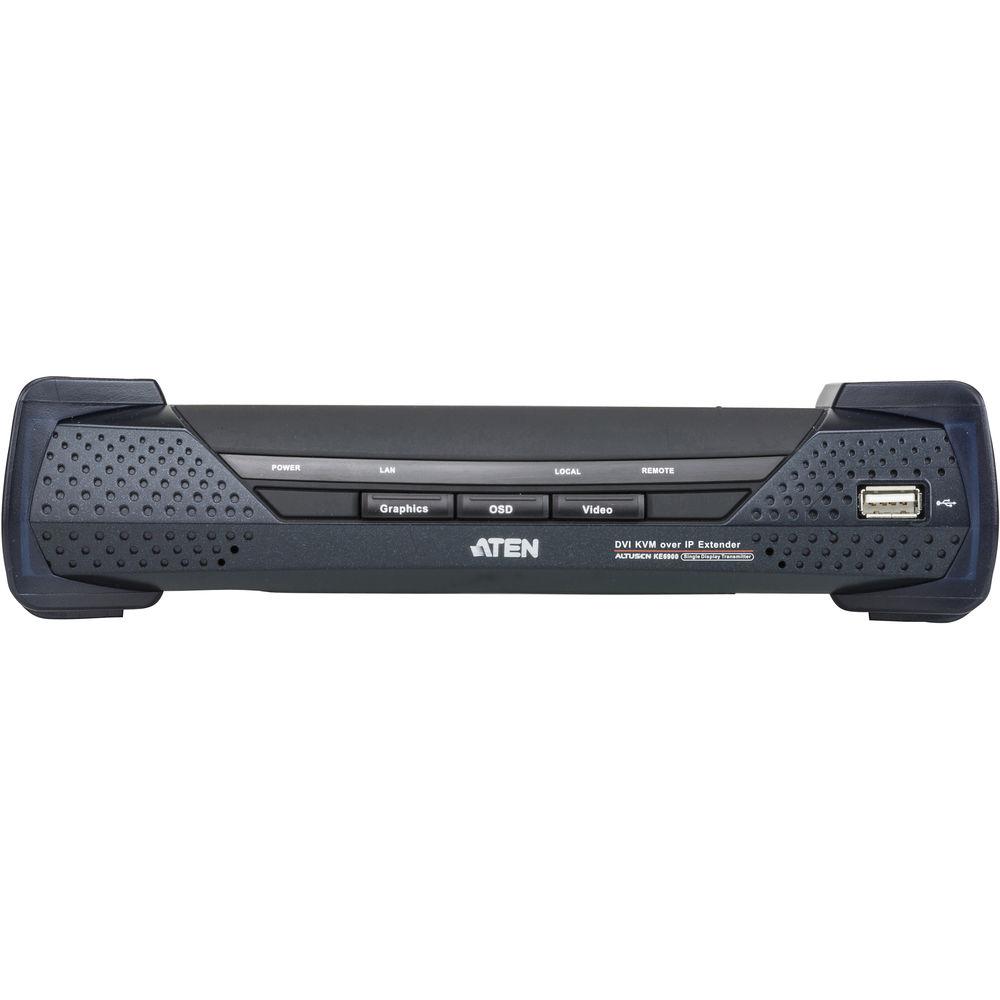

RS-232: 1 x DB-9 male (black) | | Power Connector | 1 x DC jack (black) | | LAN Port | 1 x RJ-45 (black) | | Switches | OSD: 1 x Pushbutton
Video: 1 x Pushbutton
Graphics: 1 x Pushbutton
Console Selection/FW Upgrade: 1 x Slide switch
Reset: 1 x Semi-recessed pushbutton | | LEDs | LAN (green/orange)
Power (blue)
Local (green)
Remote (green) | | Emulation | Keyboard/Mouse: USB | | Power Consumption | 5 VDC | | Video Resolution | Up to 1920 x 1200 @ 60 Hz | | Temperature & Humidity | Operating Temp: 32 to 122°F / 0 to 50°C
Storage Temp: -4 to 140°F / -20 to 60°C
Humidity: 0 to 95% RH, non-condensing | | Housing | Metal | | Dimensions (LxWxH) | 8.96 x 6.76 x 2.16" / 22.75 x 17.16 x 5.48 cm | | Weight | 2.76 lb / 1.25 kg |
