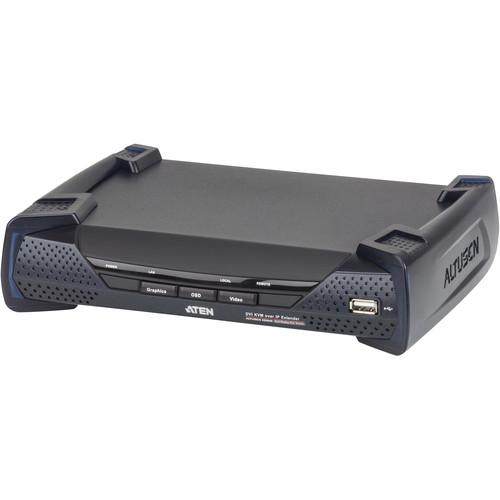

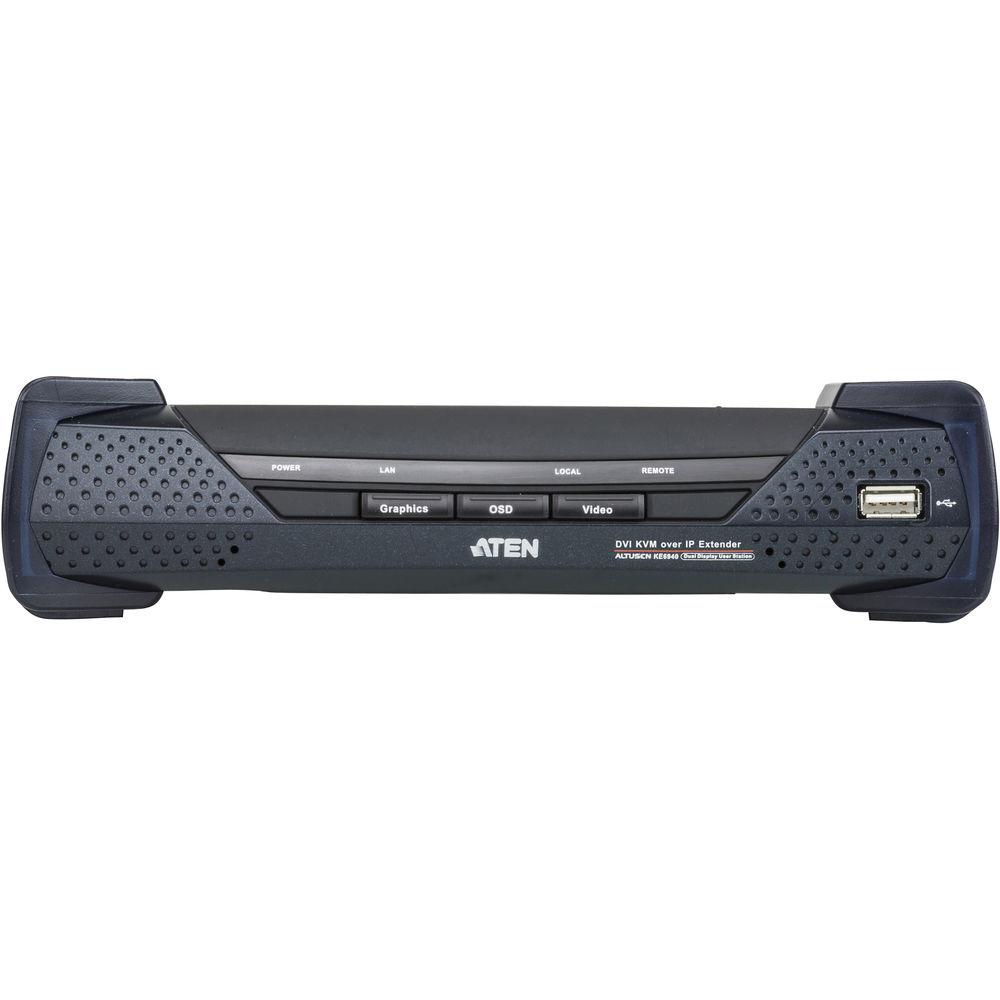

User Manual for ATEN KE6940R Dual DVI KVM Over IP Extender Receiver Click to enlarge the picture
Contents of the user manual for the ATEN KE6940R Dual DVI KVM Over
- Product category: KVM Extenders ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Extenders
 |
User manual for the ATEN KE6940R Dual DVI KVM Over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The KE6940R Dual DVI KVM Over IP Extender Receiver from ATEN can be combined with the corresponding transmitter for extending your computer to consoles on or off your IT infrastructure. The extender allows access to a computer system from a remote USB console over an intranet. This receiving unit provides console access from a separate location over a standard TCP/IP network via a Cat 5e cable for point-to-point, point-to-multipoint, and multipoint-to-multipoint administration. The Matrix Manager software allows you to password protect your devices and administer them over a network using the web-based GUI. - Remotely access computers on your KVM installation via intranet
- Dual console operation allows for controlling your system from both the transmitter and receiver USB keyboard, monitor, and mouse consoles
- RS-232 serial ports allow you to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners
- Video quality up to 1920 x 1200 @ 60 Hz with 24-bit color depth
- Supports standard VGA resolutions from 640 x 480 to 1920 x 1200 at 60 Hz
- On Screen Display on the receiver can configure receiver and transmitter
- Supports AP GUI operation
- DVI digital and analog monitor support
- Built-in 8KV/15KV ESD protection and 2KV surge protection
- Supports stereo speakers and microphone
- Auto-MDIX detects cable type automatically
- Supports widescreen formats and high-quality video streaming
UPC: 672792402883 In the Box ATEN KE6940R Dual DVI KVM Over IP Extender Receiver Power Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN KE6940R Dual DVI KVM Over IP Extender Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN KE6940R Specs | USB Ports | 2 x USB Type A female (white) | | Console Ports | Keyboard: 1 x USB Type A female (white)
Video: 2 x DVI-I
Mouse: 1 x USB Type A female (white)
Speaker: 1 x Mini stereo jack (green)
Microphone: 1 x Mini stereo jack (pink)
RS-232: 1 x DB-9 male (black) | | Power Connector | 1 x DC jack (black) | | LAN Port | 1 x RJ-45 (black) | | Switches | OSD: 1 x Pushbutton
Video: 1 x Pushbutton
Graphics: 1 x Pushbutton
Console Selection/FW Upgrade: 1 x Slide switch
Reset: 1 x Semi-recessed pushbutton | | LEDs | LAN (green/orange)
Power (blue)
Local (green)
Remote (green) | | Emulation | Keyboard/Mouse: USB | | Power Consumption | 5 VDC | | Video Resolution | Up to 1920 x 1200 @ 60 Hz | | Temperature & Humidity | Operating Temp: 32 to 122°F / 0 to 50°C
Storage Temp: -4 to 140°F / -20 to 60°C
Humidity: 0 to 95% RH, non-condensing | | Housing | Metal | | Dimensions (LxWxH) | 8.96 x 6.76 x 2.16" / 22.75 x 17.16 x 5.48 cm | | Weight | 2.76 lb / 1.25 kg |
