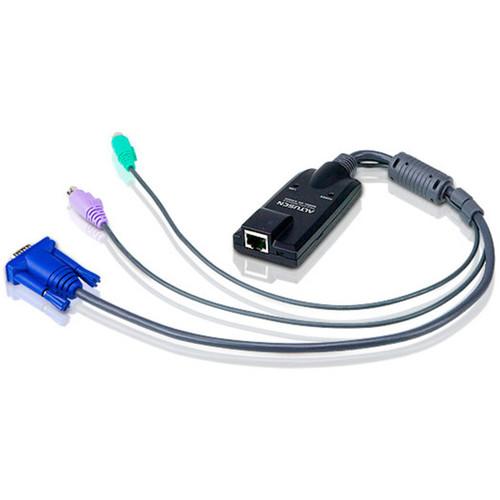

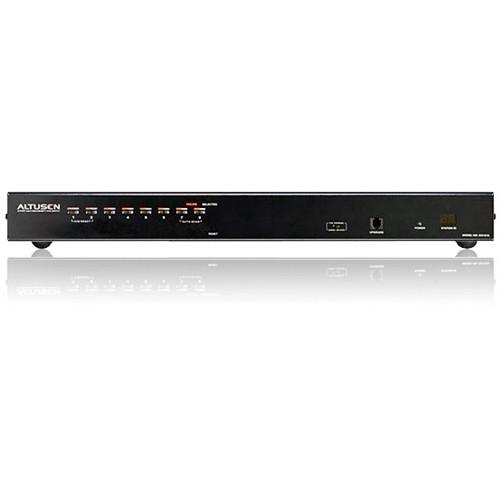

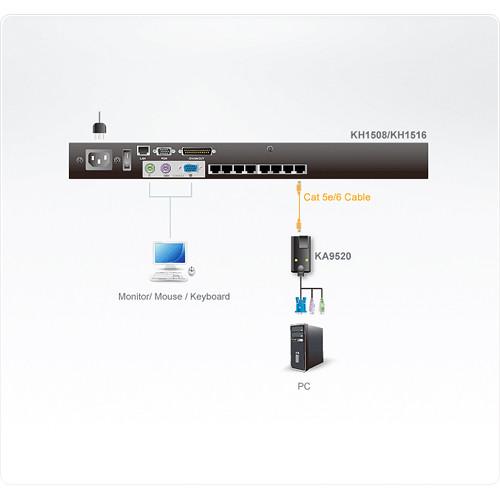

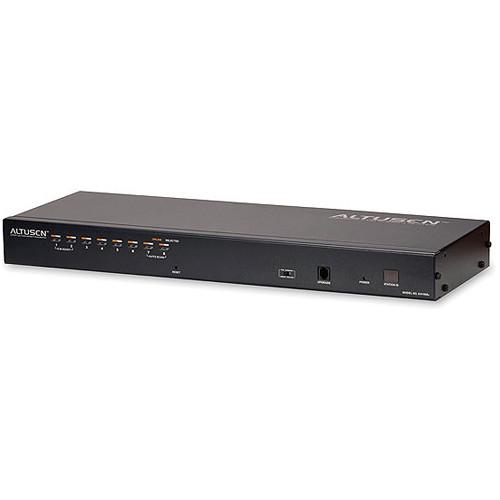

Product description Multi-Monitors: Maximizing Multitasking Read More cvsuwywqbuecarcuwfuvbuzueb The KVM Switch and Adapter Kit from ATEN includes a KH1508A 8-port Cat 5 High-Density KVM Switch and eight KA9520 PS/2 VGA CPU Adapter. The KH1508A 8-port Cat 5 High-Density KVM Switch is a control unit which allows administrators and users to access and control multiple computers from a single PS/2 or USB KVM console. It allows for eight computer connections and control for up to 256 computers via daisy chaining. The KVM switch is designed to enable administrators to manage their entire server room and data center devices conveniently and, when needed, remotely. With KA9520 PS/2 VGA CPU Adapter, you can connect the KVM cables to the PS/2 console ports of the servers. These lightweight and compact adapters can fit into most of the rack-mount or desktop servers. - KVM Switch Features
-
- One KVM Console controls up to 8 directly connected computers or via daisy chaining, up to 31 switches and 256 computers can be controlled by the KVM console
- Console conversion for mixed PS/2 and USB support through the KVM console and computer

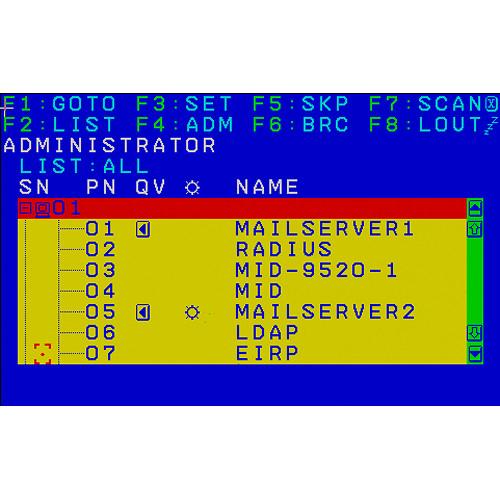

- Configure port access right for users on a port by port basis and enable two-level password security
- Supports up to 10 users and 1 administrator account
- Broadcast mode allows you to perform installation, upgrade, and shutdown operations simultaneously
- Adapter ID Firmware Upgradeable
- KVM Adapter Features
-
- Auto Signal Compensation (ASC)
- No DIP switch setting needed for the different distances
- Hot pluggable, add or remove computers without having to power down the switch
- Lifetime firmware upgrades
- Supports resolution of up to 1280 x 1024 within the distance of up to 130'; DDC2B
- Built-in ASIC for better reliability and compatibility
- CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (PC)
- Compact size
UPC: 881317514974 In the Box ATEN KH1508A 8-port Cat 5 High-Density KVM Switch with Eight KA9520 PS/2 VGA CPU Adapters KH1508A 8-port Cat 5 High-Density KVM Switch with Kit 8 x KA9520 PS/2 VGA CPU Adapter Rack Mount Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN KH1508A 8-port Cat 5 High-Density KVM Switch with Eight KA9520 PS 2 VGA CPU Adapters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

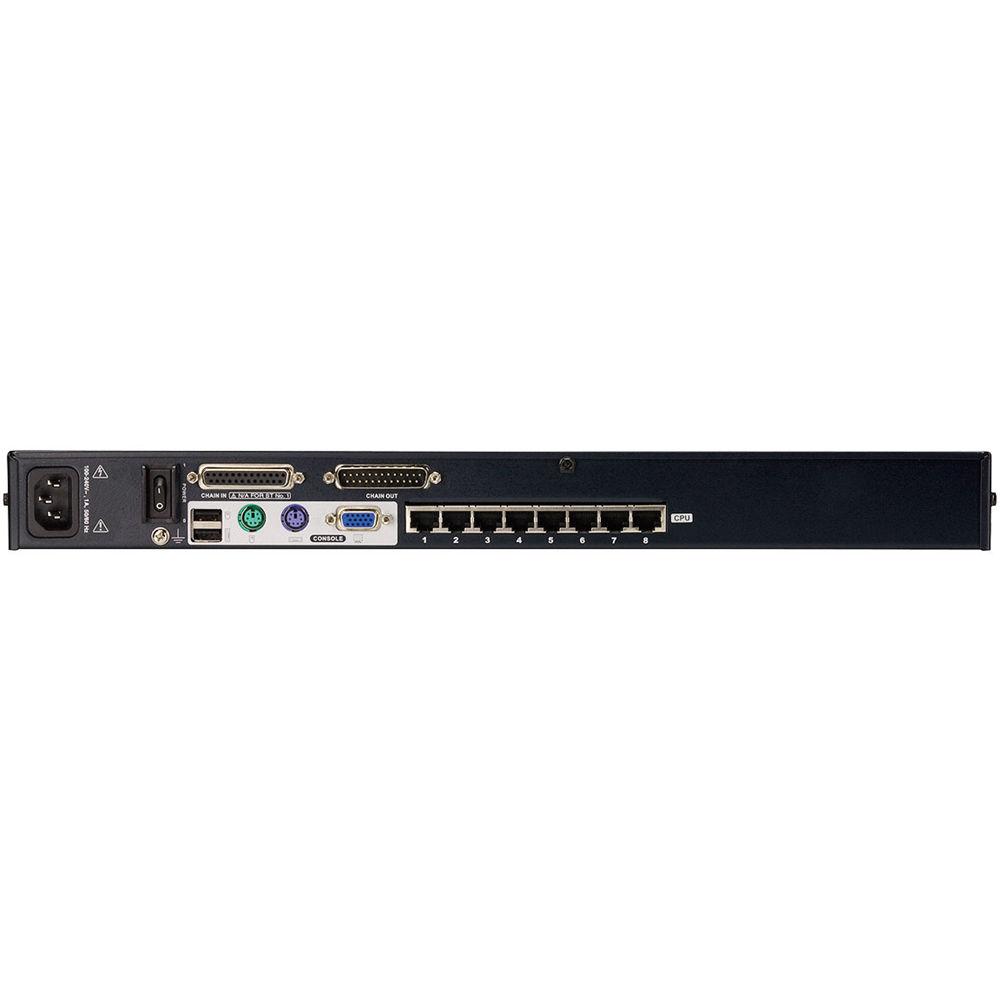

Technical parametersATEN KH1508APKIT Specs | | | Direct | 8 | | Maximum | 256 (via daisy-chain) | | Port Selection | OSD, hotkey, pushbutton | | | | Console | 2 x USB type A (female)
1 x 6-pin mini-DIN (female)
1 x 6-pin mini-DIN (female)
1 x HDB-15 (female) | | KVM Ports | 8 x RJ-45 (female) | | Daisy Chain | 1 x DB-25 (female)
1 x DB-25 (male) | | Firmware Upgrade | 1 x RJ-11 (female) | | Power | 1 x IEC 60320/C14 | | | | Port Selection | 8 x Pushbutton | | Reset | 1 x Semi-recessed pushbutton | | Firmware Upgrade | 1 x Slide | | Power | 1 x Rocker | | | | LEDs | Online: 8 x Green
Selected: 8 x Orange
Power: 1 x Blue
Station ID: 1 x 2-digit 7-segment (orange) | | Emulation | Keyboard / Mouse: PS/2; USB | | Scan Interval | 1 to 255 sec | | Video | 1600 x 1200 @ 60 Hz; 131' (40 m)
1280 x 1024 @ 75 Hz; 164' (50 m) | | | | Input | 100 to 240 VAC; 50/60 Hz; 1 A | | Consumption | @120 V: 5.8 W
@230 V: 6 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity (Non-Condensing) | 0 to 80% RH | | | | Housing | Metal | | Dimensions | 17.21 x 6.13 x 1.73" / 43.72 x 15.58 x 4.40 cm | | Weight | 6.01 lb / 2.73 kg | | | | Link | 1 x RJ-45 (female) | | Computer | 2 x Min Din 6 (male)
1 x HDB-15 (male) | | | | LEDs | Online: 1 x Green
Link: 1 x Orange | | | | Housing | Plastic | | Dimensions | 3.54 x 1.69 x 0.86" / 9.00 x 4.30 x 2.18 cm | | Weight | 0.31 lb / 0.14 kg |
